Installation in a metal immersion tube or metal bypass

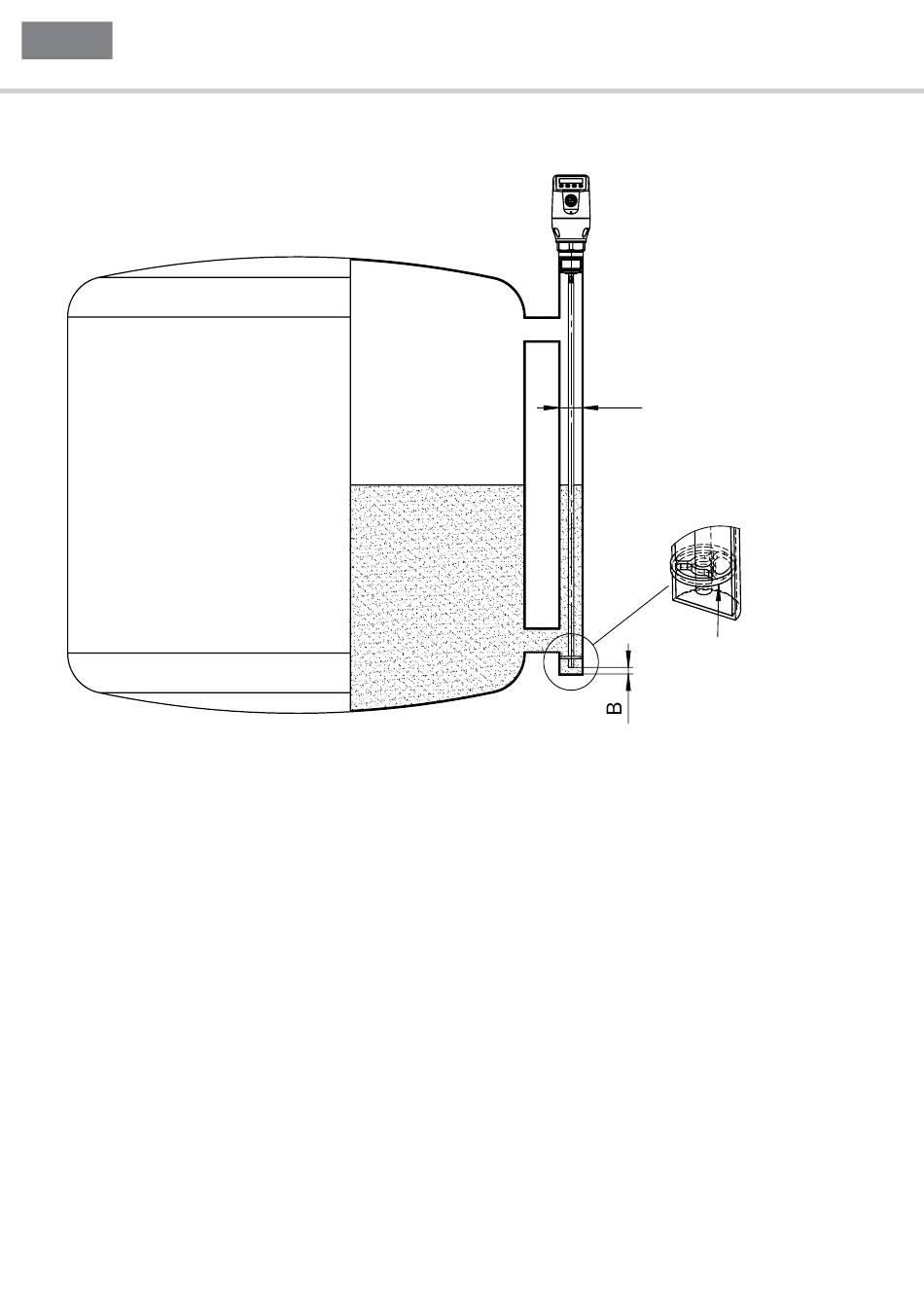

Diagram 2
Centering: To prevent contact between the probe and the bypass pipe during oscillations, the probe
should be centered according to its length and depending on the diameter of the bypass pipe. To do
this, it is necessary to insert one or two centering pieces (see Chapter 10 "Accessories").
68 8014825/YE12/2014-09-15 © SICK AG • Level sensors • Germany • Subject to change without notice
1 LFP level sensor
D ≥ DN 40
Distance tank wall/tank bottom
B ≥ 10 mm (0.40")
D
center
LFP Cubic
