5.10 Setting the offset

This setting makes it possible to indicate the level value on the display in relation to the tank
■
bottom instead of the end of the probe. The actual container level is then indicated on the display.
Configuration
Log into expert mode (see Chapter "5.1 Expert mode")
■
Set the offset in the EXPRT-Config-Offset menu (0 to 3,000 mm)
■

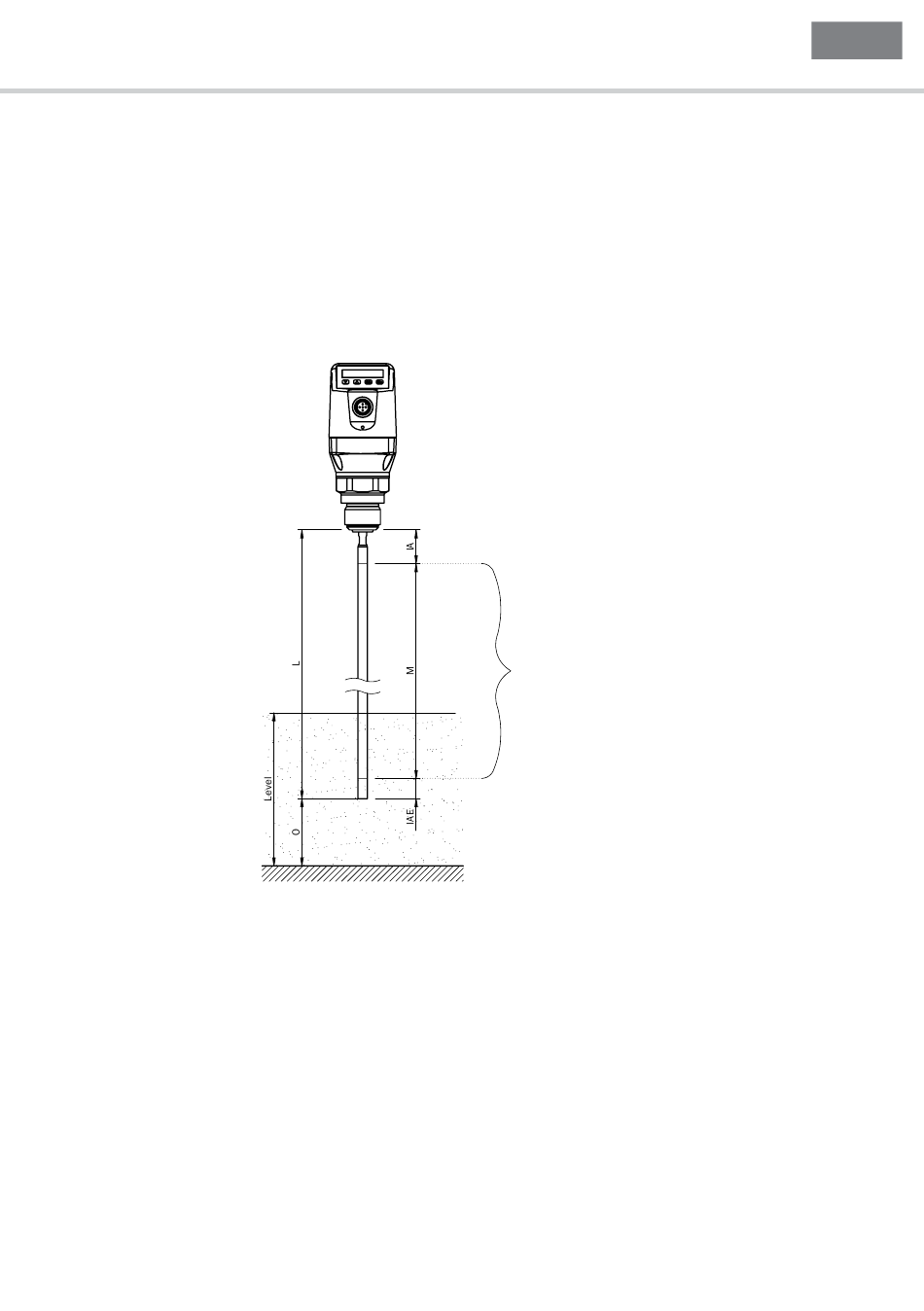

See the following diagram
■
Note:
If the offset parameter is changed, the SPx/RPx/FLx/FHx/QALOW/QAHIGH parameters are
■
automatically adjusted.
8014825/YE12/2014-09-15 © SICK AG • Level sensors • Germany • Subject to change without notice
5 Advanced functions
QALOW / QAHIGH
SPx / RPx
FHx / FI x
Can only be set within
this zone
O: Offset
L: Probe length
M: Measuring length
IA: Inactive range at
IAE: Inactive range at the
process connection
end of the probe
