1.4 Installation conditions

The LFP is mounted vertically from above into the container or bypass, using its process connection.
The LFP level sensor has a G ¾ or ¾" NPT threaded connection. Observe a minimum connection
diameter in accordance with the following Diagrams 1 and 3. The LFP must be installed so that after
mounting there is sufficient distance to other tank components (e.g., supply tubes, other measure-
ment devices), the container wall, or the container bottom. Minimum distances are also described in
Diagrams 1 and 3. The LFP can also be used in a metal immersion pipe or bypass. The installation
conditions are shown in Diagram 2. Ensure that there is a good metallic connection between the
LFP measuring device and the tank/bypass. When operating the sensor, ensure that the ambient
temperature is not above or below the limits. Insulating the sensor housing is not permitted for tanks
with hot media. When positioning the device, ensure that the sensor is not directly exposed to the
filling flow. The sensor housing can be rotated 360°, allowing for the cable outlet to be positioned
freely.

Installation in a container

Note: The distances are the same for the sensor with remote amplifier.
With coaxial tube
C

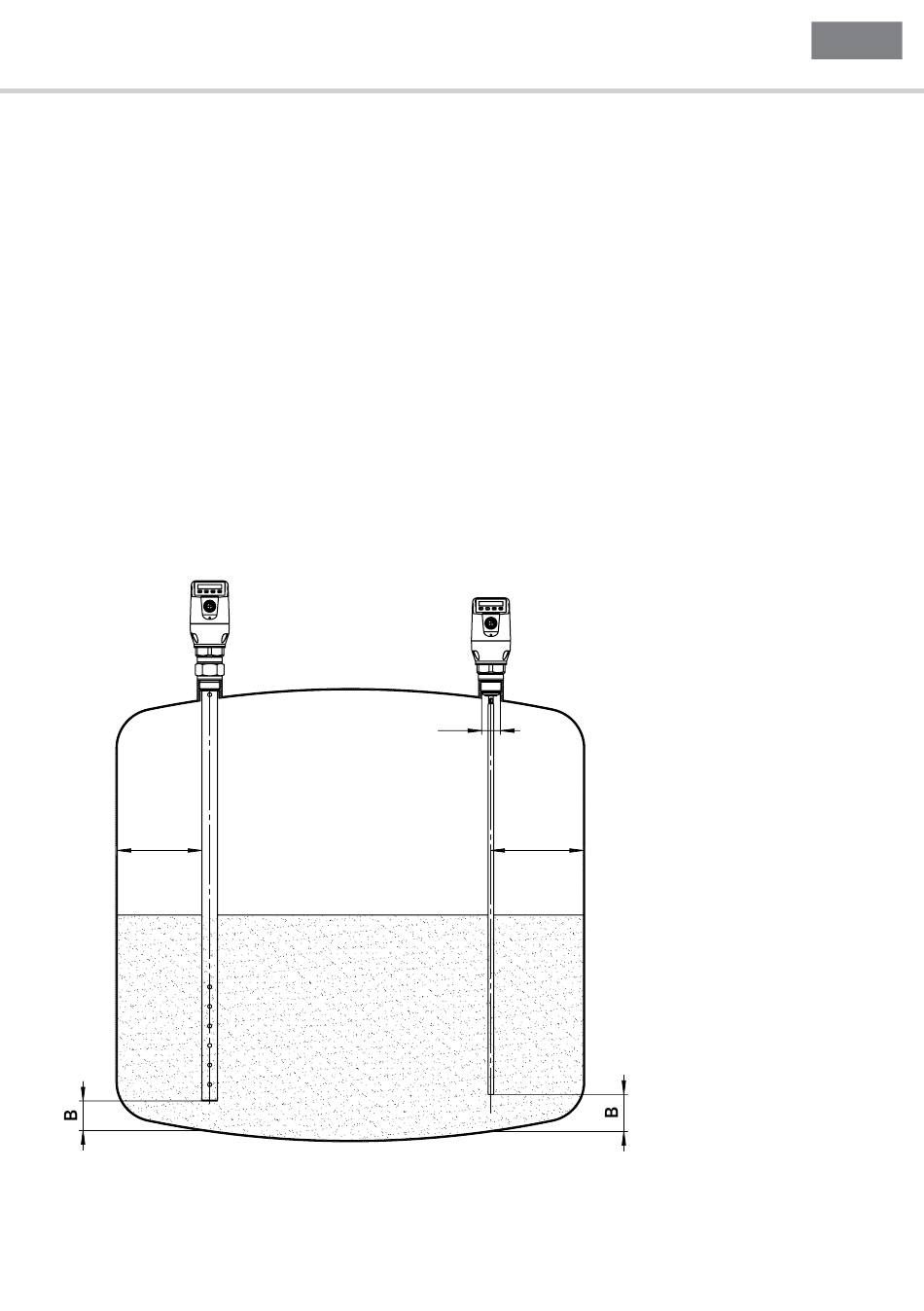

Diagram 1
8014825/YE12/2014-09-15 © SICK AG • Level sensors • Germany • Subject to change without notice
1 LFP level sensor
D
Mono probe
A
Operating instructions
Unit with mono probe mounted
in metal tank
Installation in nozzle:
D ≥ DN 25 (1")
Distance tank wall/tank bottom:
A ≥ 50 mm (1.97")
B ≥ 10 mm (0.40")
Distance to other tank fittings
≥ 100mm (3.94")
Unit with coaxial tube for metal
and non metal tank
C = with a coaxial tube there are no
minimum distances to the tank wall
or to other tank fittings required .
