LFP Cubic
Variants with four switching outputs
Q1/2/3/4
1000 mm
Arrow pushbuttons:
Set pushbutton:
Esc pushbutton:

1.7 Mounting the coaxial tube

See the operating instructions for the coaxial tube (8015674).

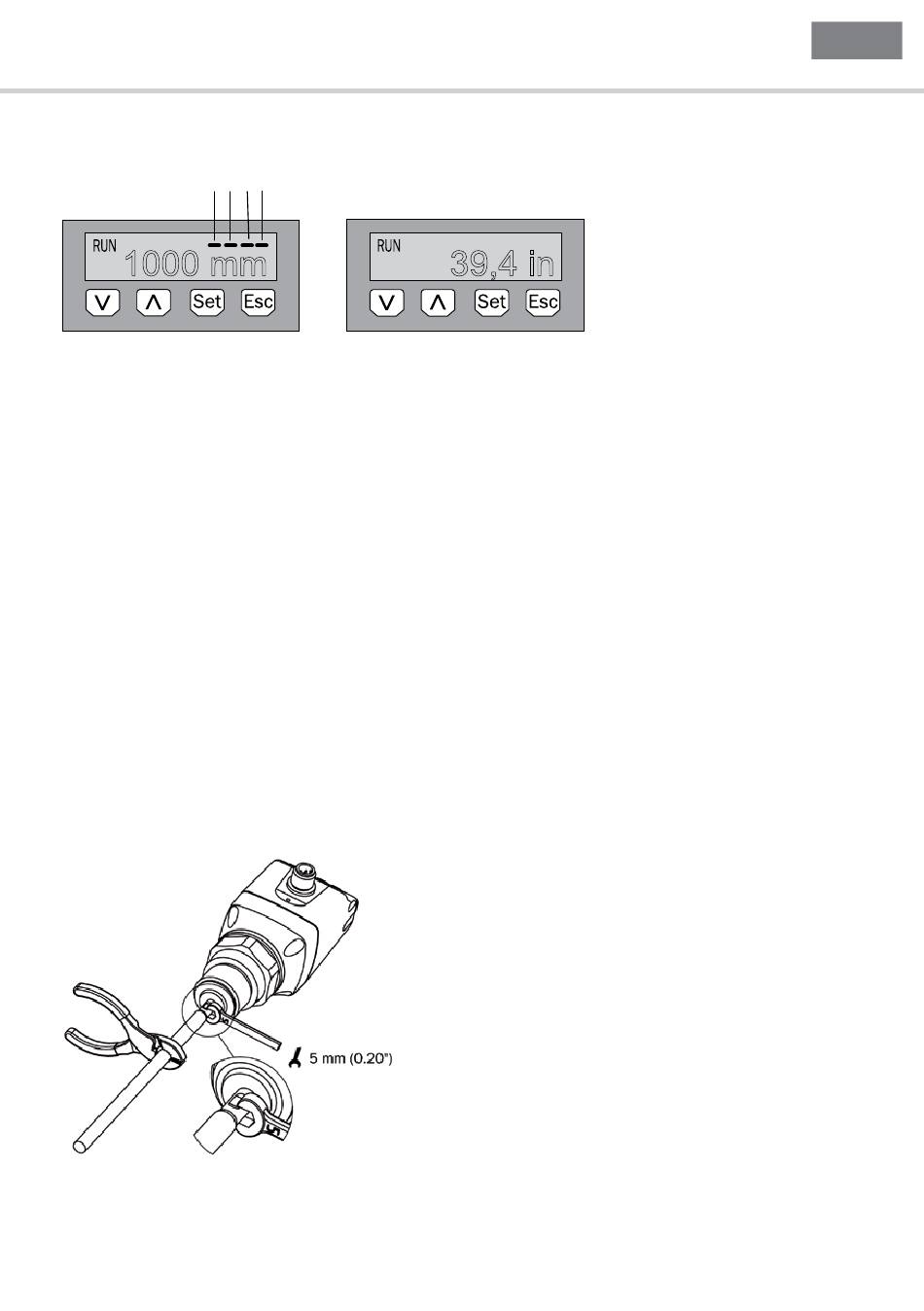

1.8 Shortening or replacing the probe rod/cable probe
If the probe rod or cable probe is too long for the application, it can be shortened to the container
height. In this case, you should not shorten the probe beyond its minimum length of 100 mm.
Procedure: Shorten the probe rod or cable probe as desired. Set the new probe length in the LFP as
described in Chapter "5.4 Configuring the probe length". Ensure that this correction corresponds to
the probe length, because an incorrect value in the Length menu has a direct effect on measurement
accuracy and can lead to faults. The probe length L is set out in Chapter "9.8 Dimensional drawings".
The probe rod or cable probe can be replaced on the LFP Cubic. Use a suitable tool. If the system
experiences strong vibrations, secure the probe with thread locker.
8014825/YE12/2014-09-15 © SICK AG • Level sensors • Germany • Subject to change without notice
1 LFP level sensor
39,4 in
For navigating in the menu and changing values
For saving and confirming
For exiting the operating menu step-by-step
EN
Operating instructions
71
