1.9 Mounting the probe rod

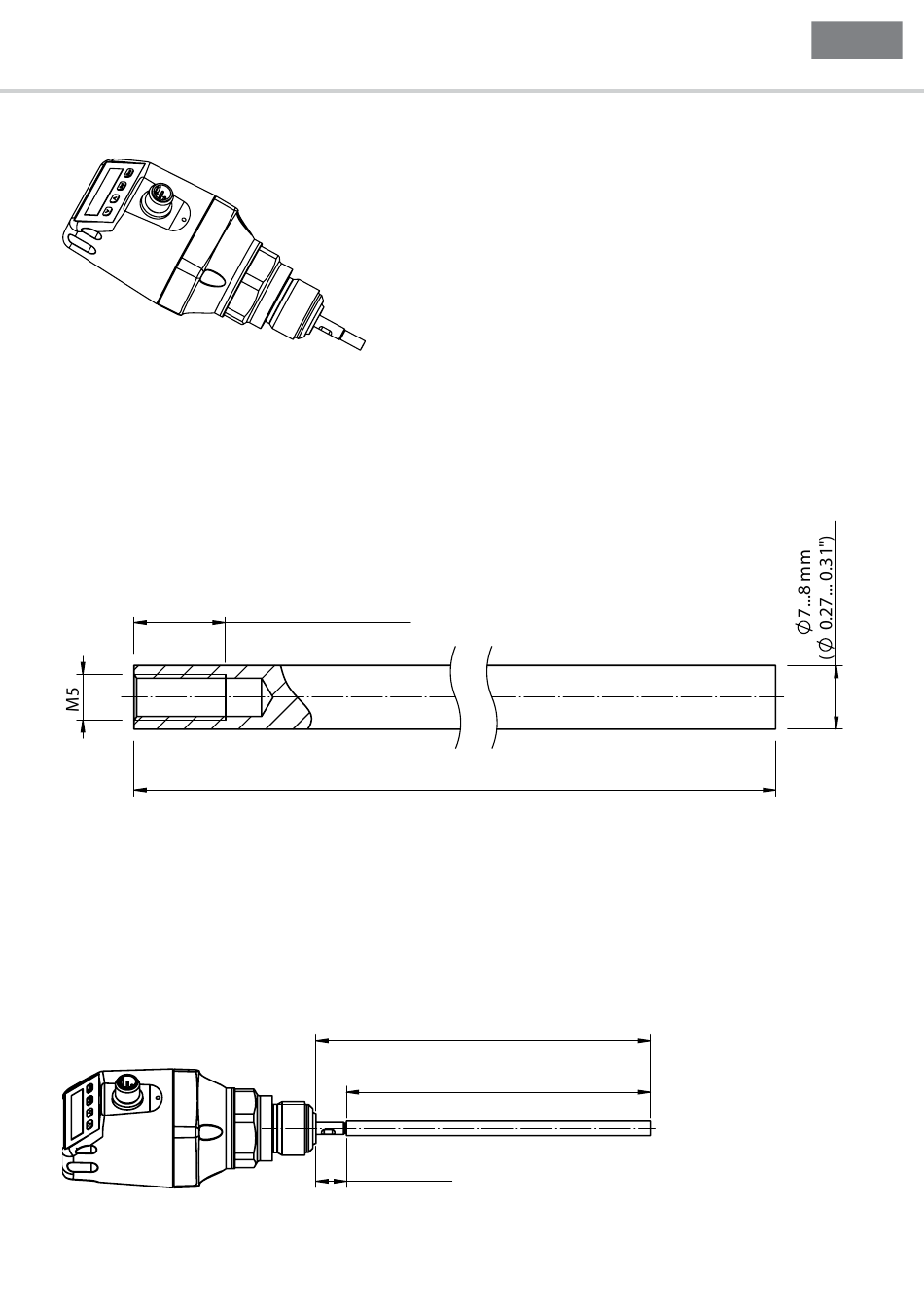

With the LFP Cubic, the probe rod can be modified by the customer. The specifications for the probe
rod should be as follows:
Probe rod diameter: 7 mm to 8 mm
■
Probe rod female thread: M5
■
Female thread length: min. 10 mm
■
Material: Stainless steel
■
Total probe length: 100 mm to 4,000 mm
■
Total probe length = 15 mm + probe rod length
■
Set the total probe length as described in Chapter "5.4 Configuring the probe length".
The EXPRT-Config-Length menu is password protected. If the system experiences strong vibrations,
secure the probe with thread locker.
