9.7 Environmental conditions

Ambient temperature, opera-
tion
1)
Ambient temperature, storage
According to UL listing: degree of contamination 3 (UL61010-1: 2012-05); air humidity: 80% at temperatures up to
1)
31 °C; installation height: max. 3,000 m above sea level; indoor applications only

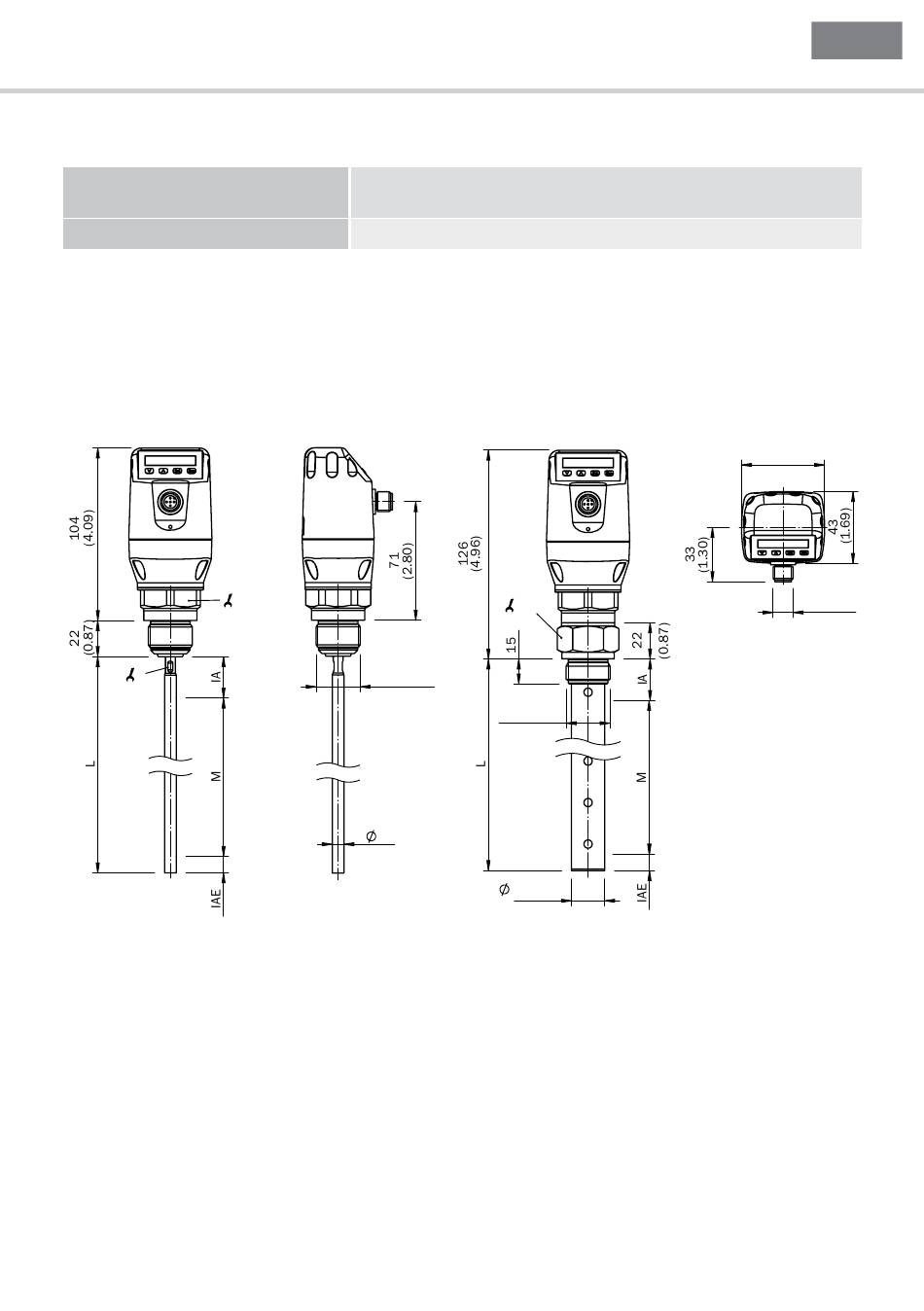

9.8 Dimensional drawings

36 (1.42)
5
(0.20)
Monoprobe
M: Measuring range
L: Probe length
IA: Inactive area at process connection 25 mm
IAE: Inactive area at probe end 10 mm
8014825/YE12/2014-09-15 © SICK AG • Level sensors • Germany • Subject to change without notice
9 Technical data
–20°C to +60°C
–40°C to +80°C
32
(1.26)
G 3/4 A
3/4" NPT
G 3/4 A
3/4" NPT
7 (0.28)
20 (0.79)
Dimensions in mm
with Coax tube
