Maintenance, Cleaning and Care
2. To dismount a drive wheel, loosen the four Allen head
screws using the Allen wrench size 8 in the middle of
the wheel (Fig. 31) and remove the wheel.
3. If the tyre/inner tube of a drive wheel needs to be repla-
ced, loosen screws on the inner side of the rim using the
Allen head wrench size 8 and pull apart the two-piece rim.
4. The defective inner tube is now freely accessible and
can be replaced.

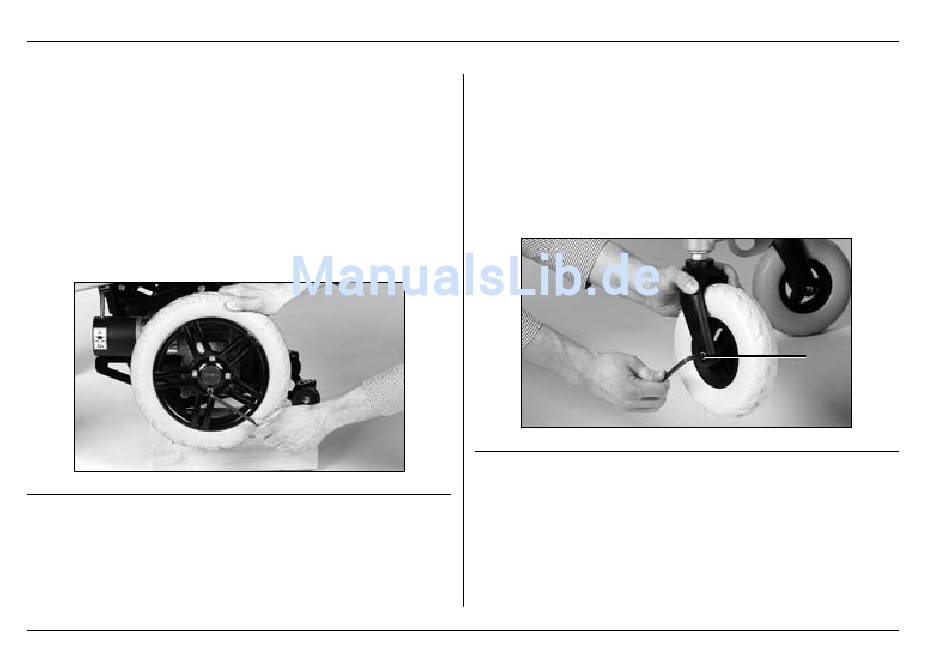

Fig. 31 Disassembling drive wheel
130 Ottobock
|
To change the front wheel, proceed as follows:
1. To dismount the front wheel, loosen the screw of the
axle using a 6 mm Allen wrench (see Fig. 32, item 1)
and pull out the axle.
2. The defective wheel is now freely accessible and can
be replaced.
Fig. 32 Disassembling front wheel
1 Axle screw
1
A200
