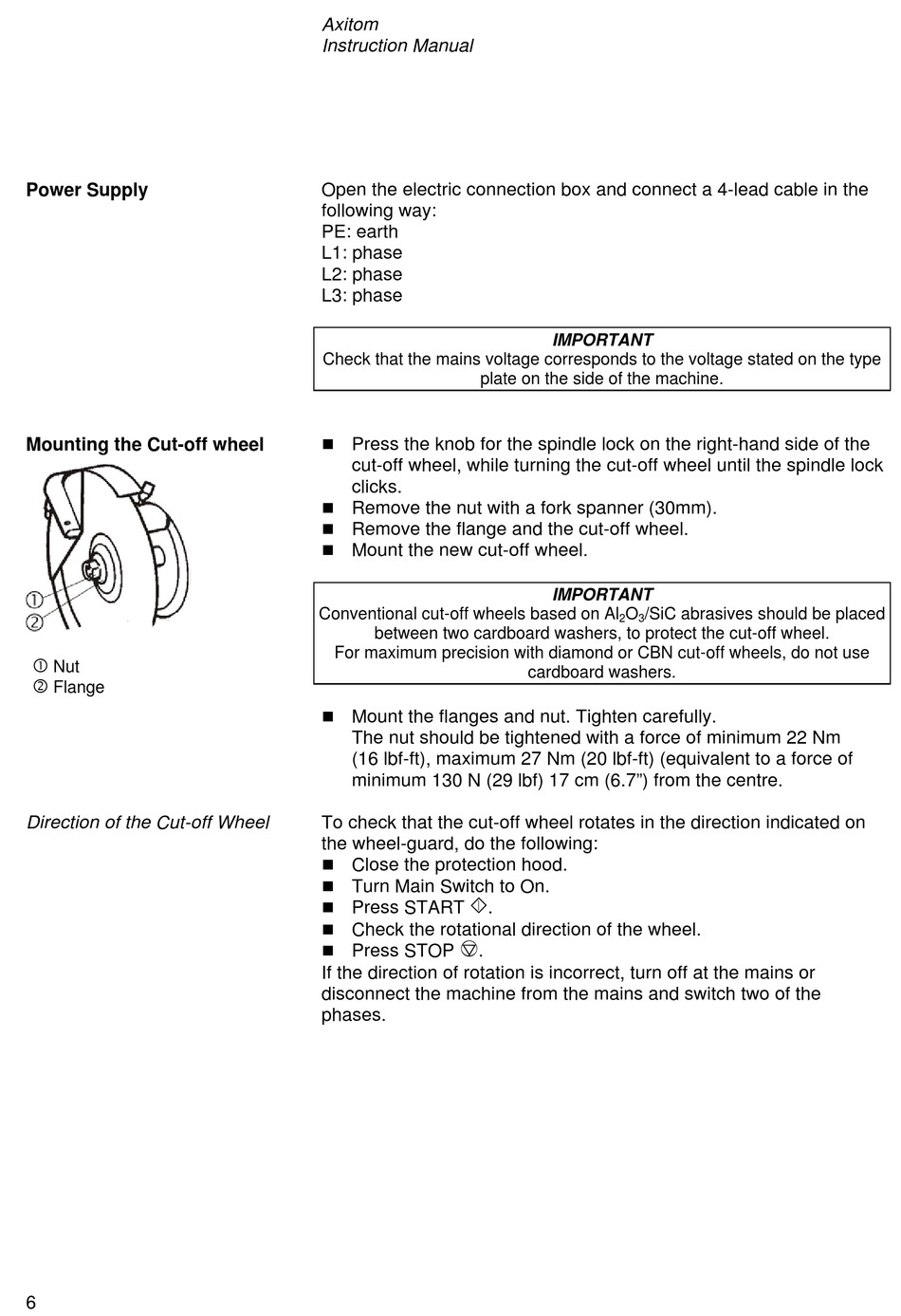

Power Supply

Mounting the Cut-off wheel


Nut

Flange

Direction of the Cut-off Wheel

6
Axitom
Instruction Manual
Open the electric connection box and connect a 4-lead cable in the
following way:
PE: earth
L1: phase
L2: phase
L3: phase
Check that the mains voltage corresponds to the voltage stated on the type
plate on the side of the machine.

Press the knob for the spindle lock on the right-hand side of the
cut-off wheel, while turning the cut-off wheel until the spindle lock
clicks.

Remove the nut with a fork spanner (30mm).

Remove the flange and the cut-off wheel.

Mount the new cut-off wheel.
Conventional cut-off wheels based on Al
between two cardboard washers, to protect the cut-off wheel.
For maximum precision with diamond or CBN cut-off wheels, do not use

Mount the flanges and nut. Tighten carefully.
The nut should be tightened with a force of minimum 22 Nm
(16 lbf-ft), maximum 27 Nm (20 lbf-ft) (equivalent to a force of
minimum 130 N (29 lbf) 17 cm (6.7") from the centre.
To check that the cut-off wheel rotates in the direction indicated on
the wheel-guard, do the following:

Close the protection hood.

Turn Main Switch to On.


Press START .

Check the rotational direction of the wheel.


Press STOP .
If the direction of rotation is incorrect, turn off at the mains or
disconnect the machine from the mains and switch two of the
phases.
IMPORTANT
IMPORTANT
O /SiC abrasives should be placed
2 3
cardboard washers.
