Assembly
Electrical connections

▪ Fuses must only be replaced by a professional electrician.
▪ Repairs to the device must only be carried out by a qualified electrician
approved by Heidolph Instruments. Improper repairs could result in serious
dangers. Please contact your specialist dealer if the device needs to be repaired.
Warning:
Risk of electric shock
The device must be connected to an earthed power socket.
The rated voltage for the device and the supply voltage must be the
same. The rated voltage for the device can be found on the rating plate
on the rear of the device.
The device is supplied with a grounded power cord. In case the original
plug is replaced, the new plug must have a protective conductor!
If the device is still connected to power while changing the fuse, you
might get in contact with live parts.
Prior to replacing the fuse ensure that the unit is switched off and pull
the plug from the electric socket. Only use original spare fuses from
Heidolph Instruments.
After changing a fuse check the device for safe operating condition
according to IEC 61010-1.

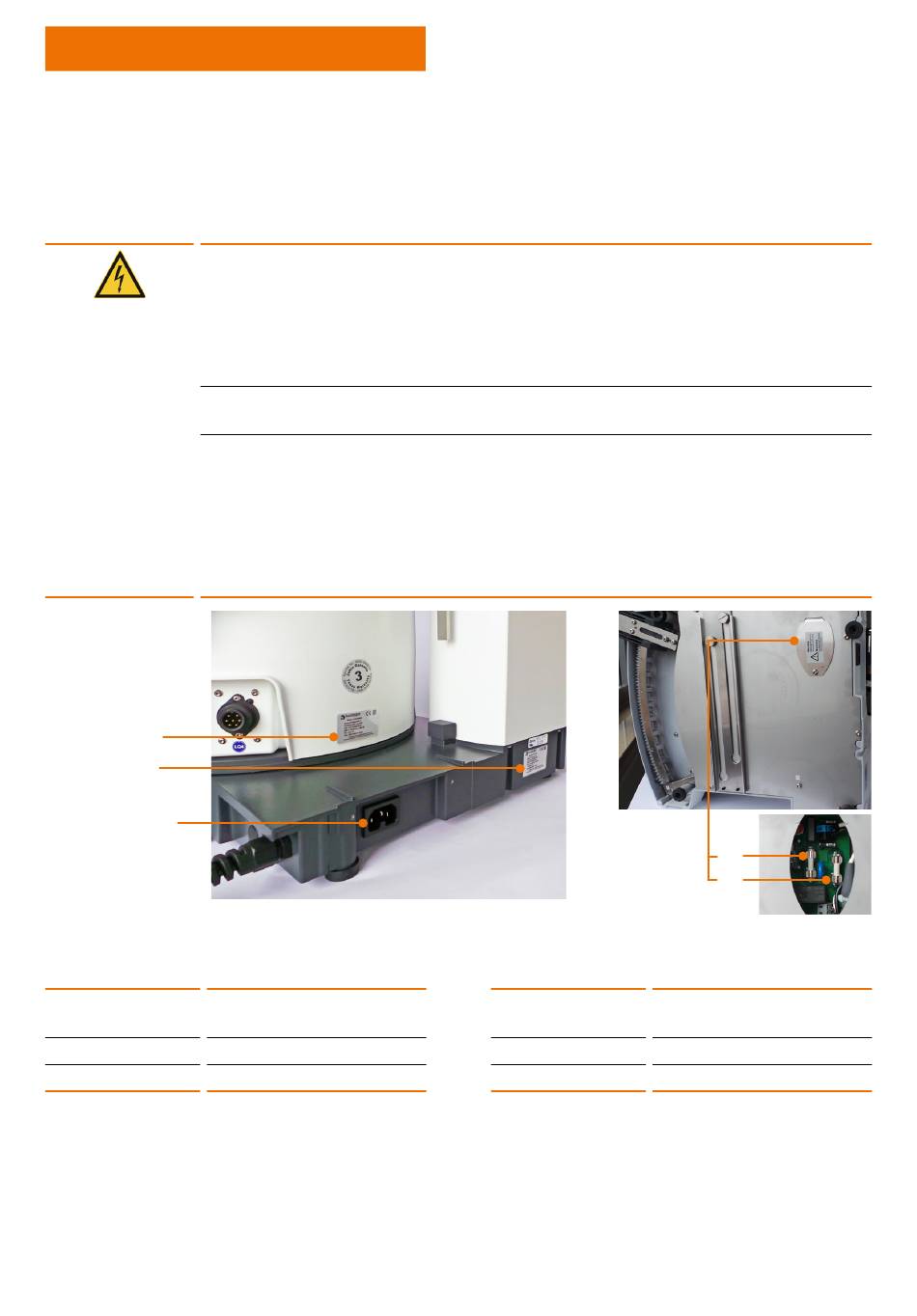

Rating plate
heating bath
Rating plate
device
Device socket
Colour code for electrical connections:
Europe
GREEN/YEL- PE: Protective
LOW
conductor (Earth)
BLUE
N: Neutral conductor
BROWN P: Phase
The device is connected to the mains with the power cord supplied. The power connection
is located on the rear of the housing.
For countries where a different plug than the standard plug supplied is used:
▪ The plug supplied may only be changed by a professional electrician.
▪ If you wish to use an adapter, ensure that it is grounded and approved in accordance
with the local regulations.
▪ Wiring, adapter and plug must at least meet the electrical power stated on the rating
plate.
Assembly
North America
GREEN
WHITE
BLACK
81
Device
F4
fuses
F2
PE: Protective
conductor (Earth)
N: Neutral conductor
P: Phase
