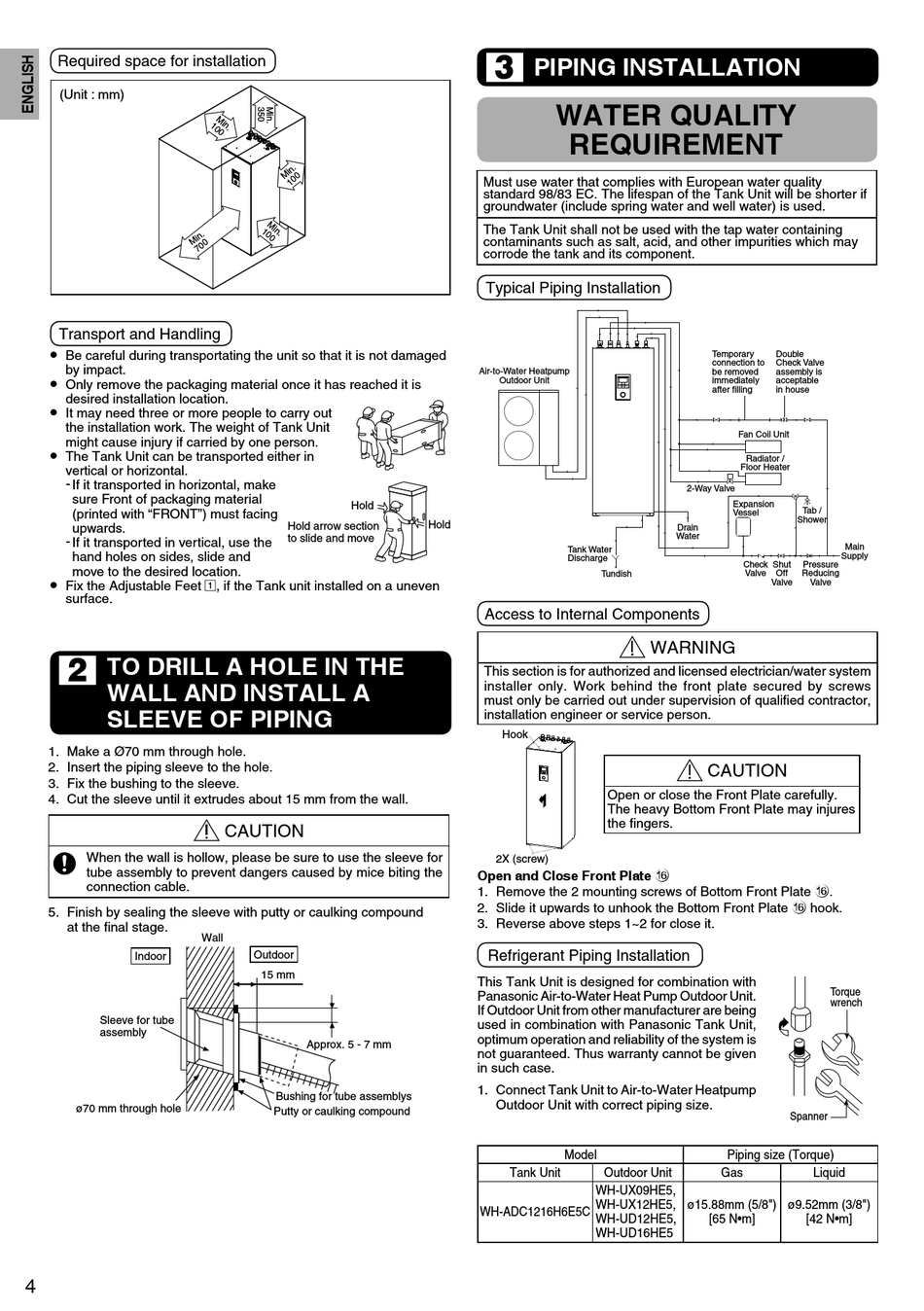

Required space for installation
(Unit : mm)
Transport and Handling
•
Be careful during transportating the unit so that it is not damaged
by impact.
•
Only remove the packaging material once it has reached it is
desired installation location.
•
It may need three or more people to carry out
the installation work. The weight of Tank Unit
might cause injury if carried by one person.
•
The Tank Unit can be transported either in
vertical or horizontal.
- If it transported in horizontal, make
sure Front of packaging material
(printed with "FRONT") must facing
upwards.
- If it transported in vertical, use the
hand holes on sides, slide and
move to the desired location.
•
Fix the Adjustable Feet 1 , if the Tank unit installed on a uneven
surface.
TO DRILL A HOLE IN THE
2
WALL AND INSTALL A
SLEEVE OF PIPING
1. Make a Ø70 mm through hole.
2. Insert the piping sleeve to the hole.
3. Fix the bushing to the sleeve.
4. Cut the sleeve until it extrudes about 15 mm from the wall.
When the wall is hollow, please be sure to use the sleeve for
tube assembly to prevent dangers caused by mice biting the
connection cable.
5. Finish by sealing the sleeve with putty or caulking compound
at the fi nal stage.
Indoor
Sleeve for tube
assembly
ø70 mm through hole
4
Hold
Hold arrow section
to slide and move
CAUTION
Wall
Outdoor
15 mm
Approx. 5 - 7 mm
Bushing for tube assemblys
Putty or caulking compound
PIPING INSTALLATION
3
WATER QUALITY
REQUIREMENT
Must use water that complies with European water quality
standard 98/83 EC. The lifespan of the Tank Unit will be shorter if
groundwater (include spring water and well water) is used.
The Tank Unit shall not be used with the tap water containing
contaminants such as salt, acid, and other impurities which may
corrode the tank and its component.
Typical Piping Installation
Air-to-Water Heatpump
Outdoor Unit
Hold
Tank Water
Discharge
Tundish
Access to Internal Components
This section is for authorized and licensed electrician/water system
installer only. Work behind the front plate secured by screws
must only be carried out under supervision of qualifi ed contractor,
installation engineer or service person.
Hook
2X (screw)
Open and Close Front Plate f
1. Remove the 2 mounting screws of Bottom Front Plate f.
2. Slide it upwards to unhook the Bottom Front Plate f hook.
3. Reverse above steps 1~2 for close it.
Refrigerant Piping Installation
This Tank Unit is designed for combination with
Panasonic Air-to-Water Heat Pump Outdoor Unit.
If Outdoor Unit from other manufacturer are being
used in combination with Panasonic Tank Unit,
optimum operation and reliability of the system is
not guaranteed. Thus warranty cannot be given
in such case.
1. Connect Tank Unit to Air-to-Water Heatpump
Outdoor Unit with correct piping size.
Model
Tank Unit
WH-UX09HE5,
WH-UX12HE5,

WH-ADC1216H6E5C

WH-UD12HE5,
WH-UD16HE5
Temporary Double
connection to Check Valve
be removed assembly is
immediately acceptable
after fi lling in house
Fan Coil Unit
Radiator /
Floor Heater
2-Way Valve
Expansion
Vessel
Drain
Water
Check Shut
Valve Off
Valve
WARNING
CAUTION
Open or close the Front Plate carefully.
The heavy Bottom Front Plate may injures
the fi ngers.
Piping size (Torque)
Outdoor Unit Gas
ø15.88mm (5/8")
[65 N•m]
Tab /
Shower
Main
Supply
Pressure
Reducing
Valve
Torque
wrench
Spanner
Liquid
ø9.52mm (3/8")
[42 N•m]
