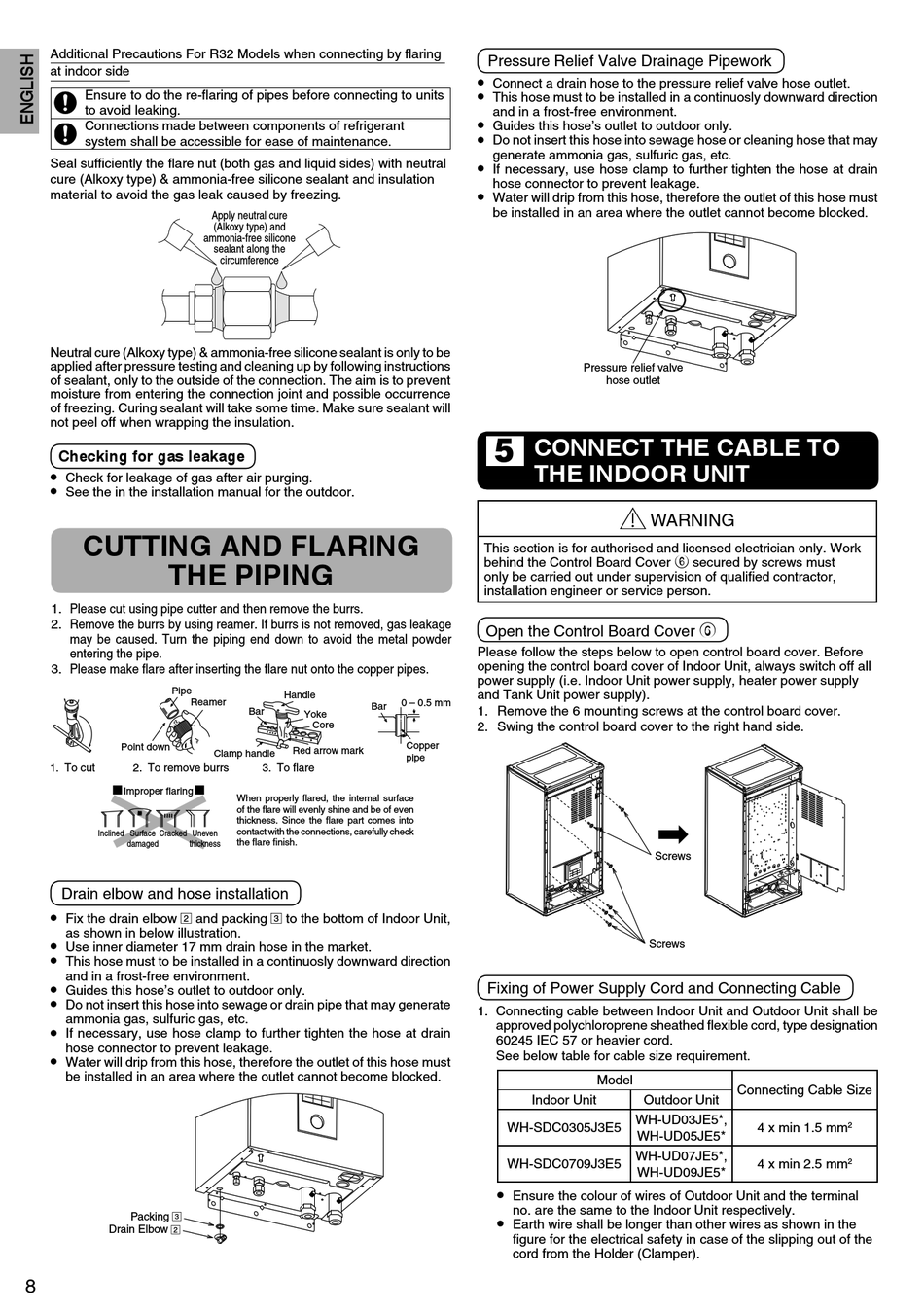

Connect The Cable To The Indoor Unit - Panasonic WH-SDC0305J3E5 Installationshandbuch

Additional Precautions For R32 Models when connecting by fl aring
at indoor side
Ensure to do the re-fl aring of pipes before connecting to units
to avoid leaking.
Connections made between components of refrigerant
system shall be accessible for ease of maintenance.
Seal suffi ciently the fl are nut (both gas and liquid sides) with neutral
cure (Alkoxy type) & ammonia-free silicone sealant and insulation
material to avoid the gas leak caused by freezing.
Neutral cure (Alkoxy type) & ammonia-free silicone sealant is only to be
applied after pressure testing and cleaning up by following instructions
of sealant, only to the outside of the connection. The aim is to prevent
moisture from entering the connection joint and possible occurrence
of freezing. Curing sealant will take some time. Make sure sealant will
not peel off when wrapping the insulation.
Checking for gas leakage
•
Check for leakage of gas after air purging.
•
See the in the installation manual for the outdoor.
CUTTING AND FLARING
THE PIPING
1. Please cut using pipe cutter and then remove the burrs.
2. Remove the burrs by using reamer. If burrs is not removed, gas leakage
may be caused. Turn the piping end down to avoid the metal powder
entering the pipe.
3. Please make fl are after inserting the fl are nut onto the copper pipes.
Pipe
Reamer
Point down
1. To cut 2. To remove burrs
 
Improper fl aring
Inclined Surface Cracked Uneven
damaged thickness
Drain elbow and hose installation
•
Fix the drain elbow 2 and packing 3 to the bottom of Indoor Unit,
as shown in below illustration.
•
Use inner diameter 17 mm drain hose in the market.
•
This hose must to be installed in a continuosly downward direction
and in a frost-free environment.
•
Guides this hose's outlet to outdoor only.
•
Do not insert this hose into sewage or drain pipe that may generate
ammonia gas, sulfuric gas, etc.
•
If necessary, use hose clamp to further tighten the hose at drain
hose connector to prevent leakage.
•
Water will drip from this hose, therefore the outlet of this hose must
be installed in an area where the outlet cannot become blocked.
Packing 3
Drain Elbow 2
8
Apply neutral cure
(Alkoxy type) and
ammonia-free silicone
sealant along the
circumference
Handle
Bar
Bar
Yoke
Core
Red arrow mark
Clamp handle
3. To fl are
When properly fl ared, the internal surface
of the fl are will evenly shine and be of even
thickness. Since the fl are part comes into
contact with the connections, carefully check
the fl are fi nish.
Pressure Relief Valve Drainage Pipework
•
Connect a drain hose to the pressure relief valve hose outlet.
•
This hose must to be installed in a continuosly downward direction
and in a frost-free environment.
•
Guides this hose's outlet to outdoor only.
•
Do not insert this hose into sewage hose or cleaning hose that may
generate ammonia gas, sulfuric gas, etc.
•
If necessary, use hose clamp to further tighten the hose at drain
hose connector to prevent leakage.
•
Water will drip from this hose, therefore the outlet of this hose must
be installed in an area where the outlet cannot become blocked.
CONNECT THE CABLE TO
5
THE INDOOR UNIT
This section is for authorised and licensed electrician only. Work
behind the Control Board Cover 6 secured by screws must
only be carried out under supervision of qualifi ed contractor,
installation engineer or service person.
Open the Control Board Cover 6
Please follow the steps below to open control board cover. Before
opening the control board cover of Indoor Unit, always switch off all
power supply (i.e. Indoor Unit power supply, heater power supply
and Tank Unit power supply).
0 – 0.5 mm
1. Remove the 6 mounting screws at the control board cover.
2. Swing the control board cover to the right hand side.
Copper
pipe
Fixing of Power Supply Cord and Connecting Cable
1. Connecting cable between Indoor Unit and Outdoor Unit shall be
approved polychloroprene sheathed fl exible cord, type designation
60245 IEC 57 or heavier cord.
See below table for cable size requirement.
Indoor Unit
WH-SDC0305J3E5
WH-SDC0709J3E5
•
Ensure the colour of wires of Outdoor Unit and the terminal
no. are the same to the Indoor Unit respectively.
•
Earth wire shall be longer than other wires as shown in the
fi gure for the electrical safety in case of the slipping out of the
cord from the Holder (Clamper).
Pressure relief valve
hose outlet
WARNING
Screws
Screws
Model
Connecting Cable Size
Outdoor Unit
WH-UD03JE5*,
4 x min 1.5 mm
WH-UD05JE5*
WH-UD07JE5*,
4 x min 2.5 mm
WH-UD09JE5*
