The main menu always displays the following items:
Status: operating status (e.g. standby, go, Fault, input functions)
Frequency: value in [Hz]
Pressure: value in [bar] or [psi] depending on the set unit of measurement.
If an event occurs, the following may be displayed:
Fault messages
Warning messages
Messages on functions associated with inputs
Special icons
The error or status conditions visible in the main menu are listed in Table 12.
Identifier
GO
Electric pump ON
SB
Electric pump OFF
BL
Block due to water failure
LP
Block due to low power supply voltage
HP
Block due to high internal power supply voltage
EC
Block due to incorrect setting of rated current
OC
Block due to current overload on electric pump motor
OF
Block due to current overload on final stages of output
SC
Block due to short circuit on output phases
OT
Block due to overheating of final power stages
OB
Block due to overheating of printed circuit
BP
Block due to fault on pressure sensor
NC
Pump not connected
F1
Float function status/alarm
F3
System disable function status/alarm
F4
Low pressure signal function status/alarm
P1
Operating status with auxiliary 1 pressure
P2
Operating status with auxiliary 2 pressure
P3
Operating status with auxiliary 3 pressure
P4
Operating status with auxiliary 4 pressure
Operating status in multi inverter communication with specified address
Com. icon with number
Error status in communication of multi inverter system
Com. icon with E
E0...E16
Internal error 0...16
EE
Writing and reading on EEprom of factory settings
WARN.
Warning due to power supply voltage failure
Low voltage
The other menu pages vary according to the associated functions, and are described below according to the type of specification or
setting. After entering any one of the menus, the lower section of the page always shows a summary of the main operating
parameters (operating status or possible fault status, applied frequency and pressure).
This enables a constant overview of the main machine parameters.
ENGLISH
Error and status conditions visible in the main menu
Table 12: Error status messages on main page

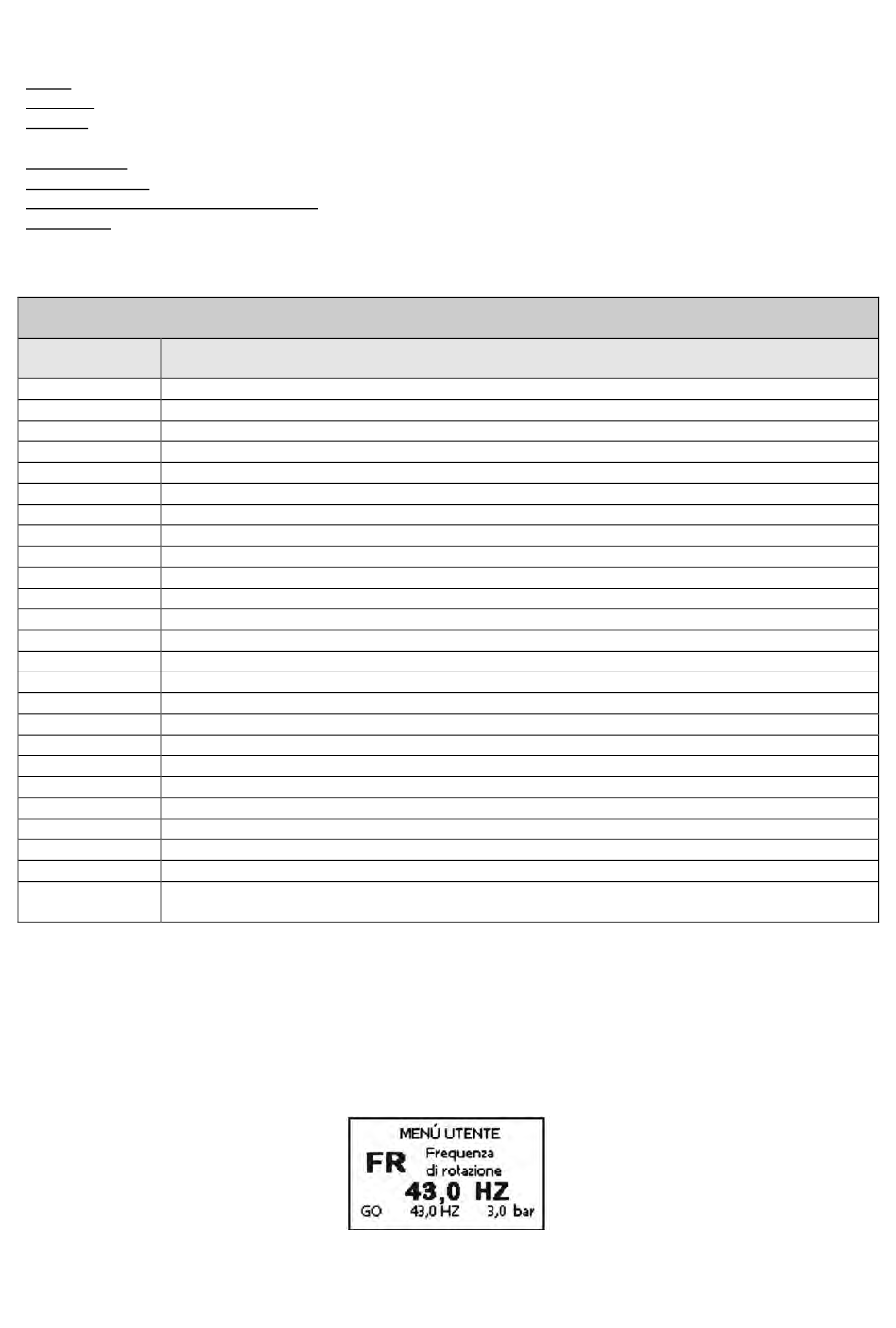

Figure 15: Menu parameter display
