To enable use, the current pressure sensor must be configured via software, parameter PR in the installer menu; refer to paragraph
6.5.7.
Multiple inverter connection:
Multiple inverter systems can be set up with a single 4-20mA current pressure sensor, but the sensor must be wired on all inverters.
To connect the inverters, a shielded cable must be used (sheath + 2 wires).
Proceed as follows:
Connect all earthing terminals of the inverters.
Connect terminal 18 of J5 (GND) of all inverters in the chain (use the sheath of the shielded cable).
Connect terminal 1 of J5 (GND) of all inverters in the chain (use the sheath of the shielded cable).
Connect the pressure sensor to the first inverter in the chain.
brown wire (IN +) on terminal 11 of J5
o
green wire (OUT +) on terminal 7 of J5
o
ENGLISH

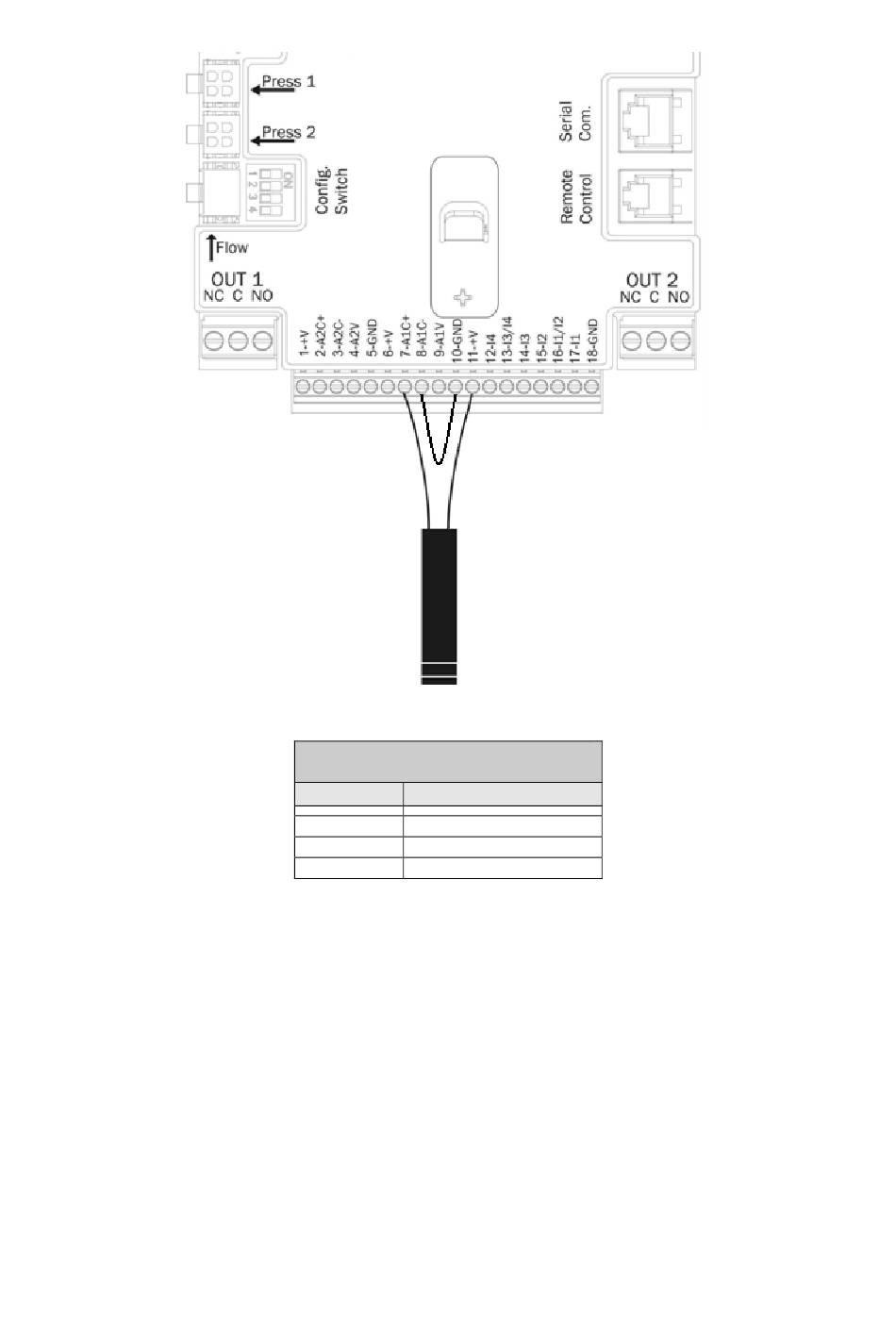

Figure 8: Connecting the 4 - 20 mA pressure sensor

4 – 20mA sensor connections
Single inverter system
Terminal
Cable to connect
7
8 -10
11

Table 5: Connecting the 4 - 20 mA pressure sensor

78
Green (OUT -)
Jumper
Brown (IN +)
