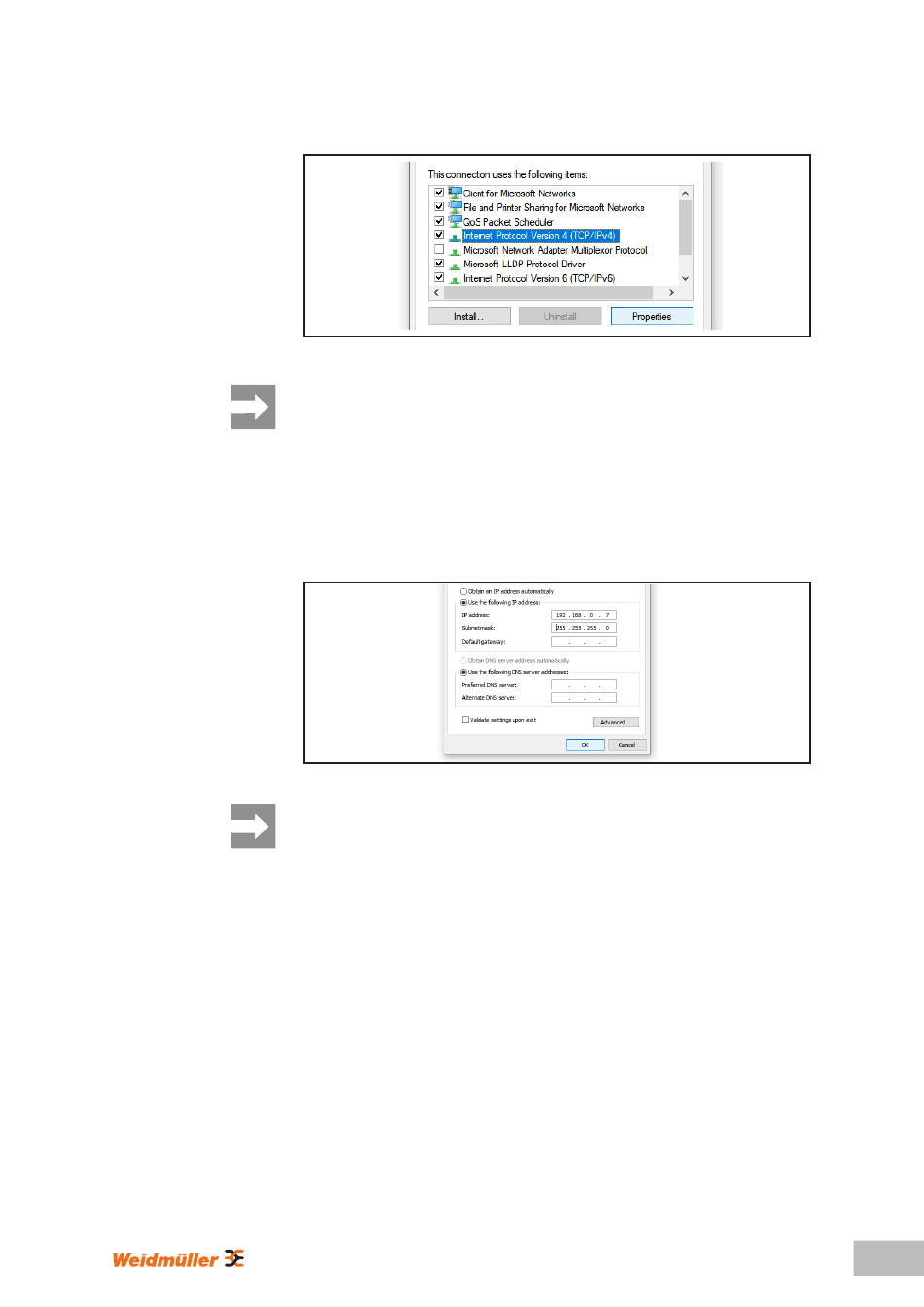

Figure 9.3 Selecting internet protocol
If there is already data in the fields, note the data and settings so that you will
be able to access the network later on.
If there is no data present, you can select the point Get IP address automat-
ically again later on.
► Activate the option Use the following IP address.
► Enter an IP address between 192.168.0.2 and 192.168.0.254 (except for
192.168.0.8).
► Enter 255.255.255.0 as the subnet mask.
► Confirm by pressing OK.
Figure 9.4 Define the IP address
192.168.0.8 is the default static IP address assigned for the EV charging box.
DHCP is deactivated on the Ethernet interface upon delivery. You can change
the DHCP setting in the web server of the EV charging box. Please note that
there may be IP address conflicts if you are still connected to other networks
that use the same subnet.
Networking and configuring the EV charging box
Operating instructions – AC SMART 91
