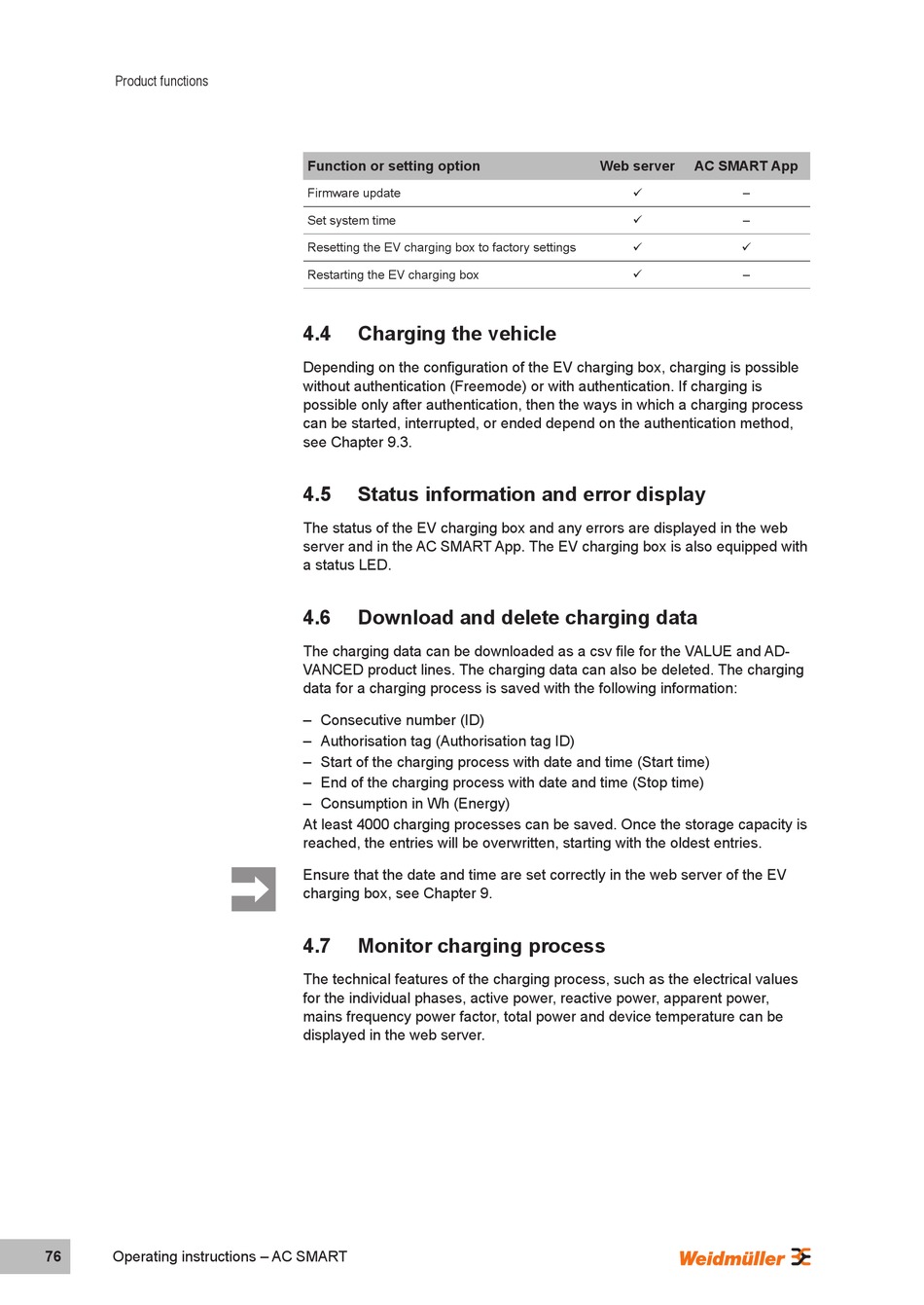

Product functions
76
Operating instructions – AC SMART
Function or setting option
Firmware update
Set system time
Resetting the EV charging box to factory settings
Restarting the EV charging box
4.4
Charging the vehicle
Depending on the configuration of the EV charging box, charging is possible
without authentication (Freemode) or with authentication. If charging is
possible only after authentication, then the ways in which a charging process
can be started, interrupted, or ended depend on the authentication method,
see Chapter 9.3.
4.5
Status information and error display
The status of the EV charging box and any errors are displayed in the web
server and in the AC SMART App. The EV charging box is also equipped with
a status LED.
4.6
Download and delete charging data
The charging data can be downloaded as a csv file for the VALUE and AD-
VANCED product lines. The charging data can also be deleted. The charging
data for a charging process is saved with the following information:
– Consecutive number (ID)
– Authorisation tag (Authorisation tag ID)
– Start of the charging process with date and time (Start time)
– End of the charging process with date and time (Stop time)
– Consumption in Wh (Energy)
At least 4000 charging processes can be saved. Once the storage capacity is
reached, the entries will be overwritten, starting with the oldest entries.
Ensure that the date and time are set correctly in the web server of the EV
charging box, see Chapter 9.
4.7
Monitor charging process
The technical features of the charging process, such as the electrical values
for the individual phases, active power, reactive power, apparent power,
mains frequency power factor, total power and device temperature can be
displayed in the web server.
Web server
AC SMART App
–
–
–
