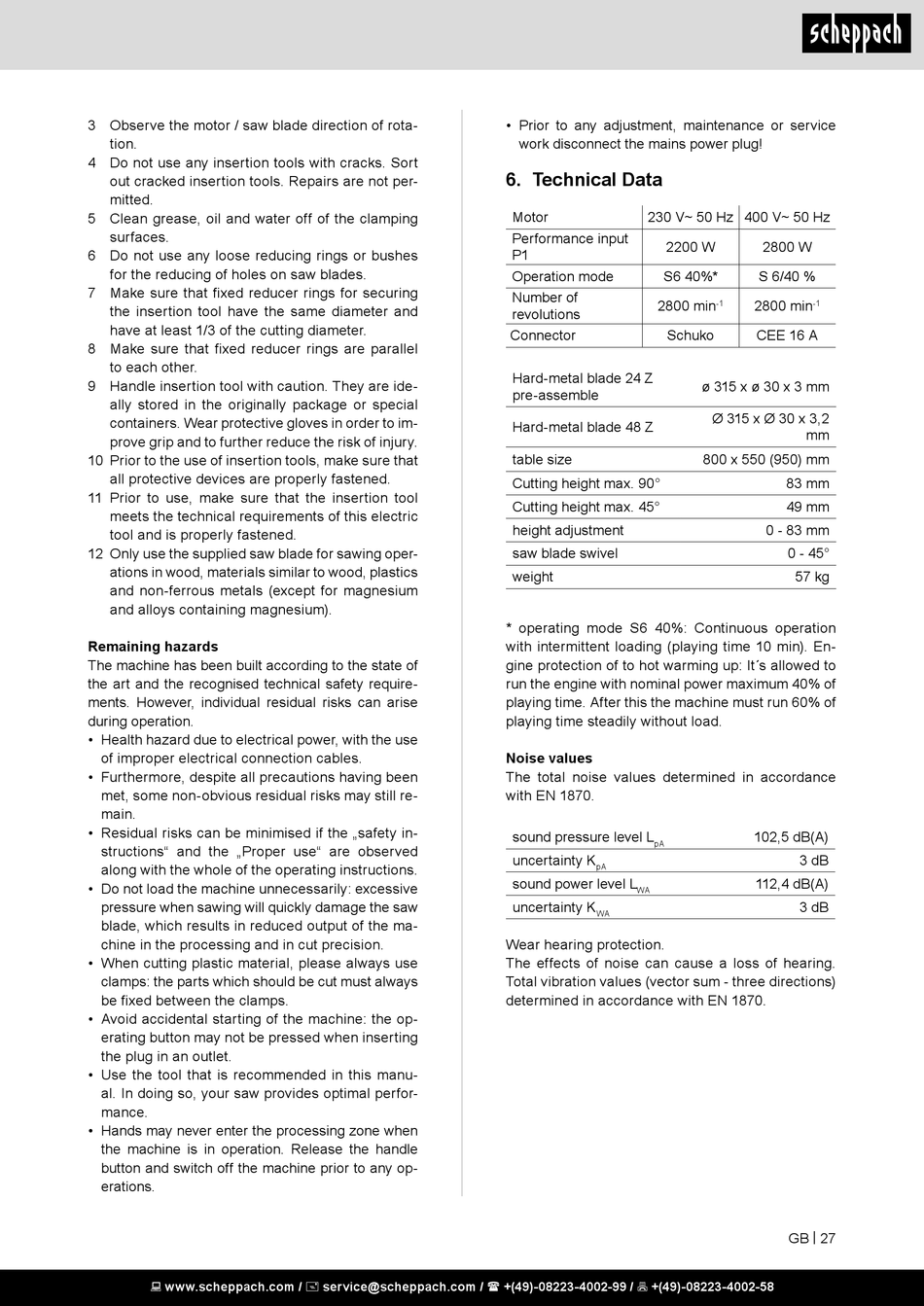

Technical Data - Scheppach TS310 Original Bedienungsanleitung

3 Observe the motor / saw blade direction of rota-
tion.
4 Do not use any insertion tools with cracks. Sort
out cracked insertion tools. Repairs are not per-
mitted.
5 Clean grease, oil and water off of the clamping
surfaces.
6 Do not use any loose reducing rings or bushes
for the reducing of holes on saw blades.
7 Make sure that fixed reducer rings for securing
the insertion tool have the same diameter and
have at least 1/3 of the cutting diameter.
8 Make sure that fixed reducer rings are parallel
to each other.
9 Handle insertion tool with caution. They are ide-
ally stored in the originally package or special
containers. Wear protective gloves in order to im-
prove grip and to further reduce the risk of injury.
10 Prior to the use of insertion tools, make sure that
all protective devices are properly fastened.
11 Prior to use, make sure that the insertion tool
meets the technical requirements of this electric
tool and is properly fastened.
12 Only use the supplied saw blade for sawing oper-
ations in wood, materials similar to wood, plastics
and non-ferrous metals (except for magnesium
and alloys containing magnesium).
Remaining hazards
The machine has been built according to the state of
the art and the recognised technical safety require-
ments. However, individual residual risks can arise
during operation.
• Health hazard due to electrical power, with the use
of improper electrical connection cables.
• Furthermore, despite all precautions having been
met, some non-obvious residual risks may still re-
main.
• Residual risks can be minimised if the „safety in-
structions" and the „Proper use" are observed
along with the whole of the operating instructions.
• Do not load the machine unnecessarily: excessive
pressure when sawing will quickly damage the saw
blade, which results in reduced output of the ma-
chine in the processing and in cut precision.
• When cutting plastic material, please always use
clamps: the parts which should be cut must always
be fixed between the clamps.
• Avoid accidental starting of the machine: the op-
erating button may not be pressed when inserting
the plug in an outlet.
• Use the tool that is recommended in this manu-
al. In doing so, your saw provides optimal perfor-
mance.
• Hands may never enter the processing zone when
the machine is in operation. Release the handle
button and switch off the machine prior to any op-
erations.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
• Prior to any adjustment, maintenance or service
work disconnect the mains power plug!

6. Technical Data

Motor 230 V~ 50 Hz 400 V~ 50 Hz
Performance input
2200 W
P1
Operation mode S6 40%*
Number of
2800 min
revolutions
Connector Schuko
Hard-metal blade 24 Z
pre-assemble
Hard-metal blade 48 Z
table size
Cutting height max. 90°
Cutting height max. 45°
height adjustment
saw blade swivel
weight
* operating mode S6 40%: Continuous operation
with intermittent loading (playing time 10 min). En-
gine protection of to hot warming up: It´s allowed to
run the engine with nominal power maximum 40% of
playing time. After this the machine must run 60% of
playing time steadily without load.
Noise values
The total noise values determined in accordance
with EN 1870.
sound pressure level L
pA
uncertainty K
pA
sound power level L
WA
uncertainty K
WA
Wear hearing protection.
The effects of noise can cause a loss of hearing.
Total vibration values (vector sum - three directions)
determined in accordance with EN 1870.
2800 W
S 6/40 %
2800 min
-1 -1
CEE 16 A
ø 315 x ø 30 x 3 mm
Ø 315 x Ø 30 x 3,2
mm
800 x 550 (950) mm
83 mm
49 mm
0 - 83 mm
0 - 45°
57 kg
102,5 dB(A)
3 dB
112,4 dB(A)
3 dB
