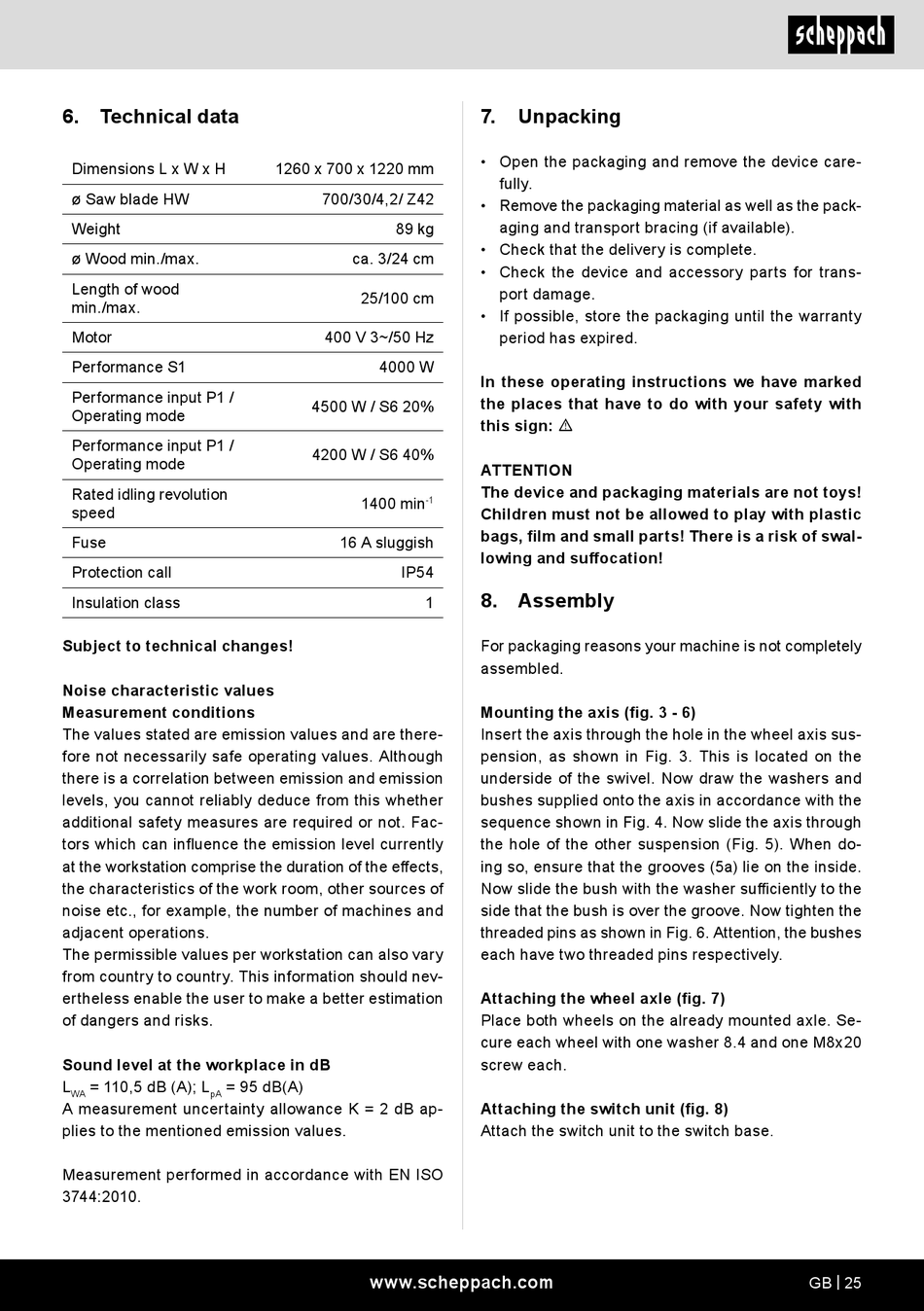

6. Technical data

Dimensions L x W x H
ø Saw blade HW
Weight
ø Wood min./max.
Length of wood
min./max.
Motor
Performance S1
Performance input P1 /
Operating mode
Performance input P1 /
Operating mode
Rated idling revolution
speed
Fuse
Protection call
Insulation class
Subject to technical changes!
Noise characteristic values
Measurement conditions
The values stated are emission values and are there-
fore not necessarily safe operating values. Although
there is a correlation between emission and emission
levels, you cannot reliably deduce from this whether
additional safety measures are required or not. Fac-
tors which can influence the emission level currently
at the workstation comprise the duration of the effects,
the characteristics of the work room, other sources of
noise etc., for example, the number of machines and
adjacent operations.
The permissible values per workstation can also vary
from country to country. This information should nev-
ertheless enable the user to make a better estimation
of dangers and risks.
Sound level at the workplace in dB
L = 110,5 dB (A); L = 95 dB(A)
WA pA
A measurement uncertainty allowance K = 2 dB ap-
plies to the mentioned emission values.
Measurement performed in accordance with EN ISO
3744:2010.
1260 x 700 x 1220 mm
700/30/4,2/ Z42
89 kg
ca. 3/24 cm
25/100 cm
400 V 3~/50 Hz
4000 W
4500 W / S6 20%
4200 W / S6 40%
1400 min
-1
16 A sluggish
IP54
1
www.scheppach.com
7.

Unpacking

• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the pack-
aging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for trans-
port damage.
• If possible, store the packaging until the warranty
period has expired.
In these operating instructions we have marked
the places that have to do with your safety with
this sign: m
ATTENTION
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts! There is a risk of swal-
lowing and suffocation!

8. Assembly

For packaging reasons your machine is not completely
assembled.
Mounting the axis (fig. 3 - 6)
Insert the axis through the hole in the wheel axis sus-
pension, as shown in Fig. 3. This is located on the
underside of the swivel. Now draw the washers and
bushes supplied onto the axis in accordance with the
sequence shown in Fig. 4. Now slide the axis through
the hole of the other suspension (Fig. 5). When do-
ing so, ensure that the grooves (5a) lie on the inside.
Now slide the bush with the washer sufficiently to the
side that the bush is over the groove. Now tighten the
threaded pins as shown in Fig. 6. Attention, the bushes
each have two threaded pins respectively.
Attaching the wheel axle (fig. 7)
Place both wheels on the already mounted axle. Se-
cure each wheel with one washer 8.4 and one M8x20
screw each.
Attaching the switch unit (fig. 8)
Attach the switch unit to the switch base.
