Operation
6.4
Operating procedure of laying cycle
General is it the drivers obligation (of the support vehicle) to have at every time the complete working area of
the support frame and the attachment in his field of view.
He must ensure, that in the danger zone are either persons nor objects
•
Lifting up the HVZ-GENIUS using the support frame till the clamp is hanging free.
•
RESET procedure of the HVZ-GENIUS accomplish:

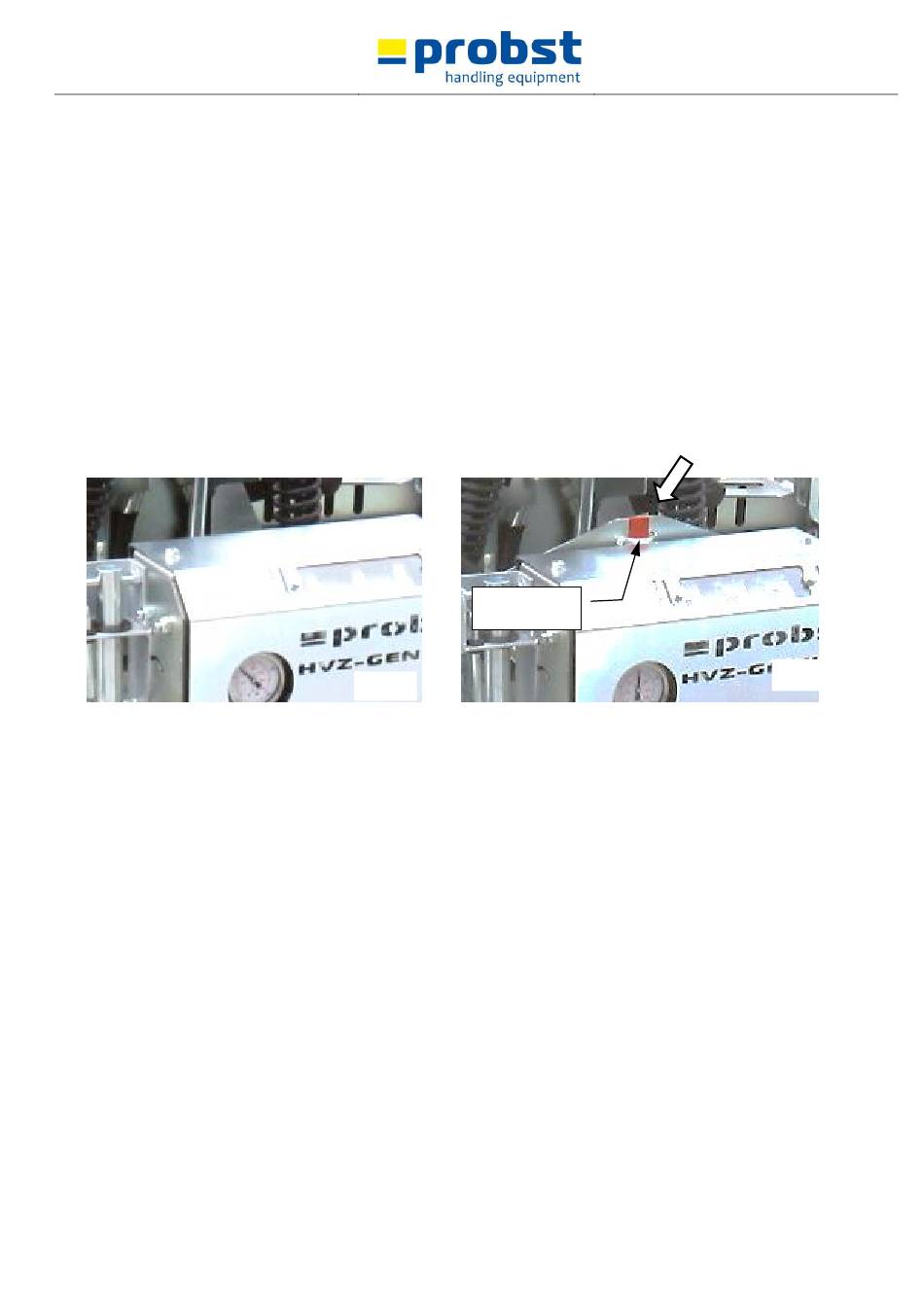

Move hydraulic control lever on "Position 1" and hold it in this position until the ADV-bar is visible (see fig. 1 and
2).
Take care, that there is nobody in the danger zone, especially swing range of the side clamp arms.
DANGER OF ACCIDENTS!
