Height adjustment of the rollers

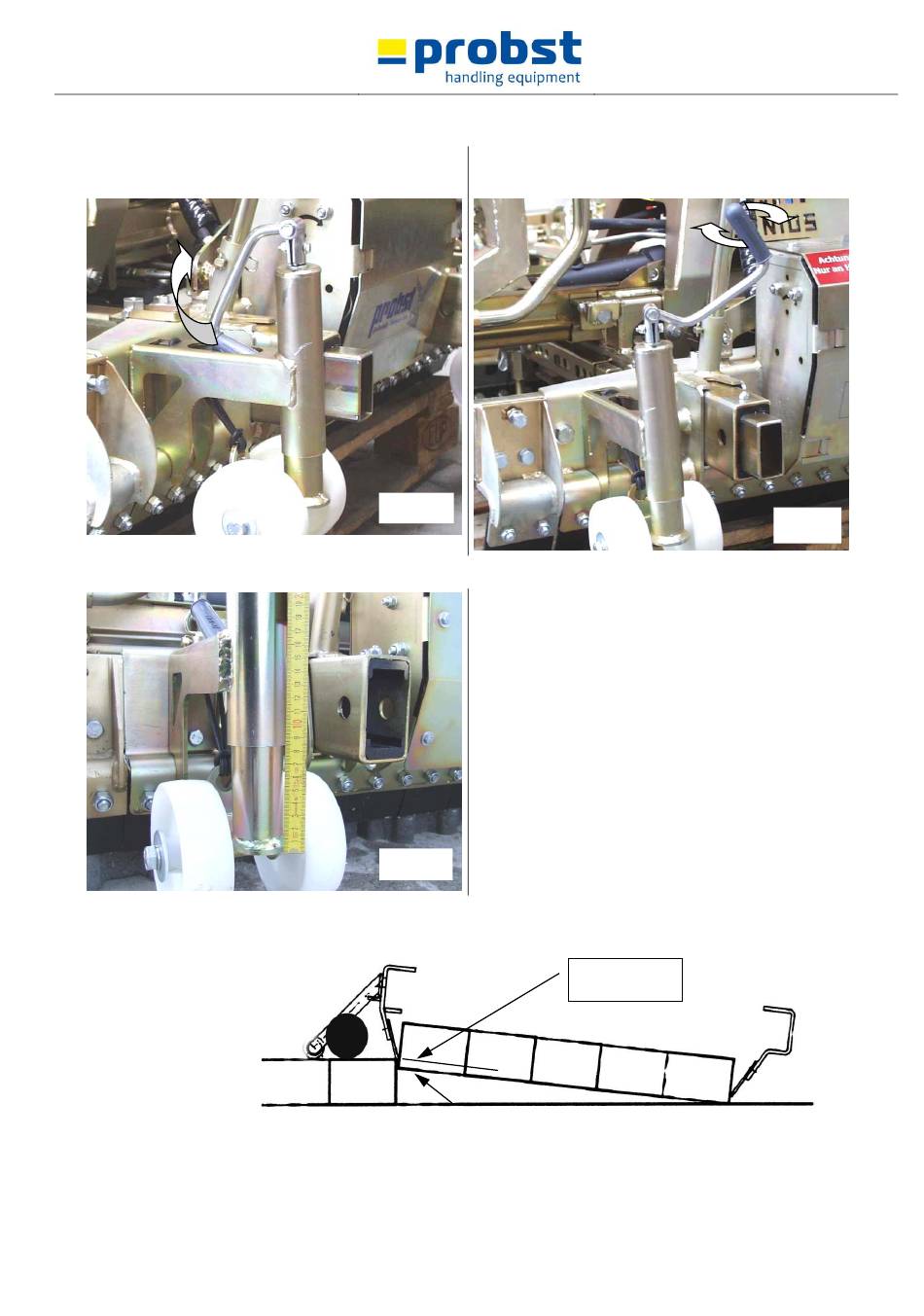

Swing crank upwards to adjust the height of the rollers.
Picture A
5140.0042
By Rotating at the crank change the height of the
rollers.
Fig. 11
Adjust the height of both rollers identically.
Distance between the steel lamellas to the lower edge
of the stone layer ~ 50 mm (see picture A )
Swing crank downwards and secure it in the same
position, as shown in fig.11.
Fig. 13
V1
50 mm
