Requirements for hydraulic operation (operating hydraulics of the carrier):
HVZ-GENIUS:
– Volumetric flow (l/min), usable min. 25, optimal 35 – 40, max. 80
– Working pressure (bar), usable min. 180, optimal 200, max. 320
– Backflow pressure: max. 10 bar
Minimum excavator operating weight:
– HVZ-GENIUS from approx. 3,5t
(Operating weight may vary depending on excavator type and form. No binding specifications: must be co-ordinated in
the individual case.)
3.2

Stone formations

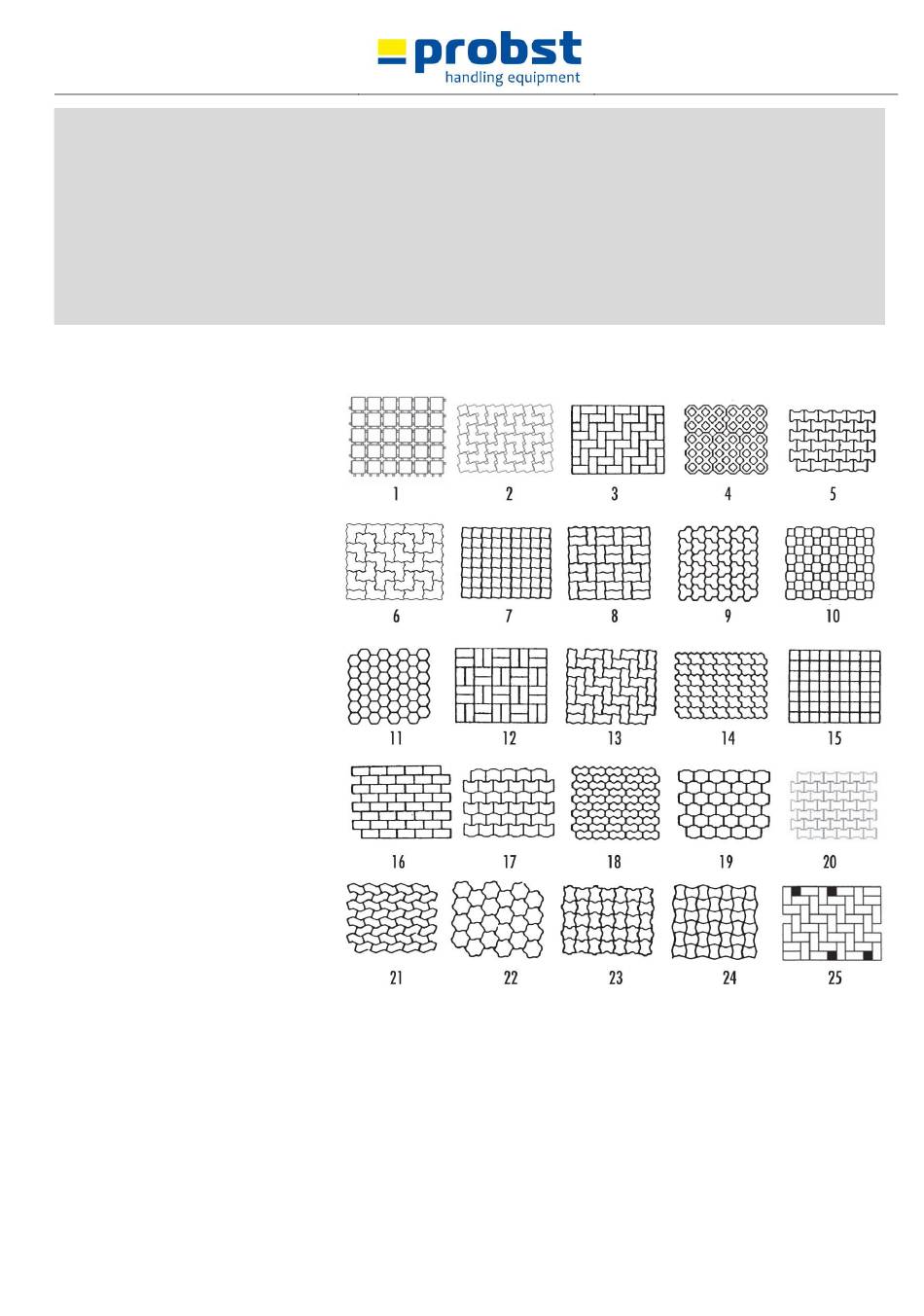

1.) The stone formations 1 – 20 shown
below are suitable among others for
mechanical installation. Other stone
formations can also be laid by machines
as long as the stones are packed in the
correct formation ready for the
machine to lay them.
2.) The stone formations 16 – 20 are
suitable for mechanical installation by
the shifting adapter PA (4140.0003).
3.) The stone formations 21 – 25 are
suitable for mechanical installation by
special adapter.
Special adapters SA for installation units 21–24 or similar are available on request (indicate stone formation).
