Installation
4.2

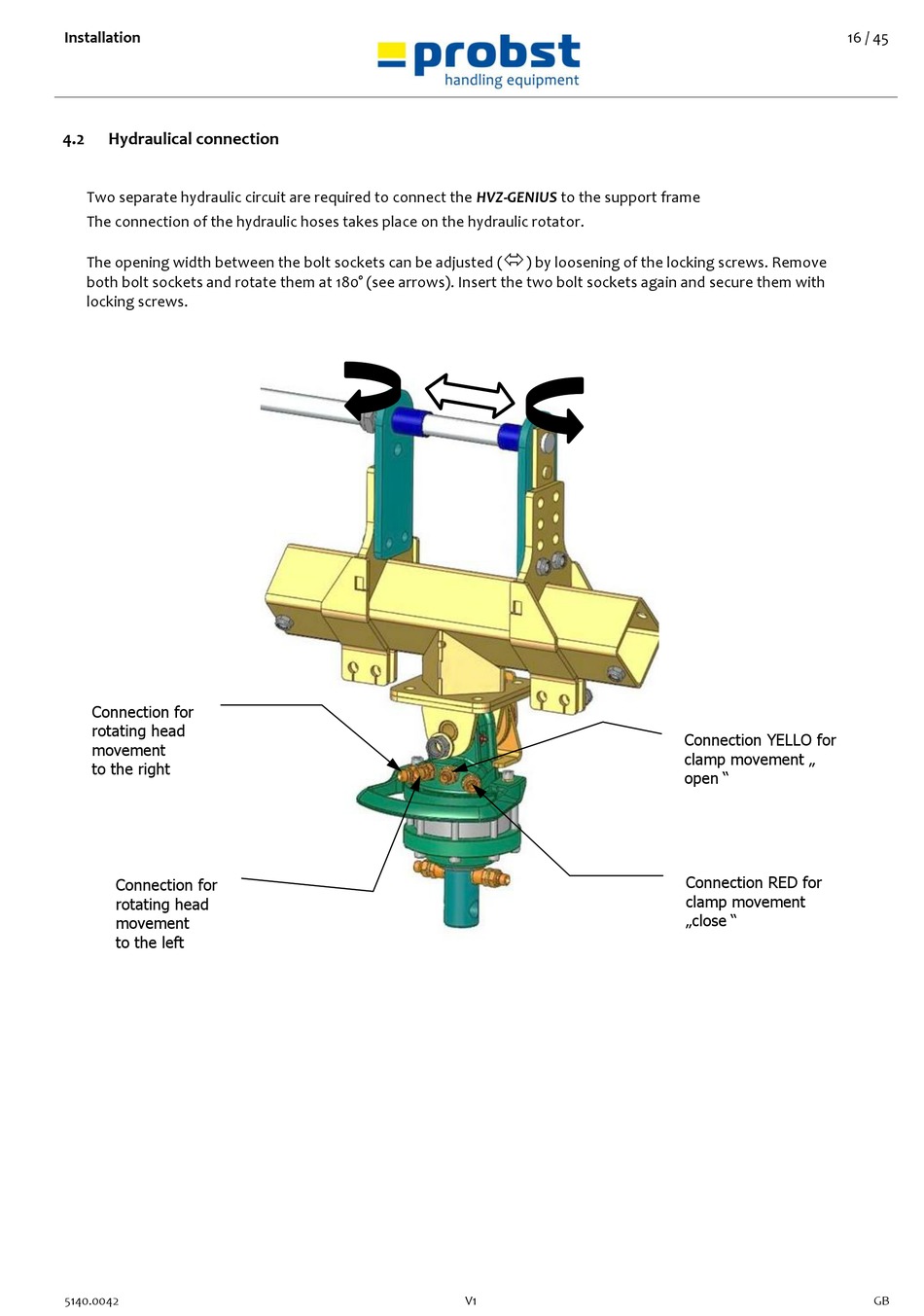

Hydraulical connection

Two separate hydraulic circuit are required to connect the HVZ-GENIUS to the support frame
The connection of the hydraulic hoses takes place on the hydraulic rotator.
The opening width between the bolt sockets can be adjusted (
both bolt sockets and rotate them at 180° (see arrows). Insert the two bolt sockets again and secure them with
locking screws.
Connection for
rotating head
movement
to the right
Connection for
rotating head
movement
to the left
5140.0042

) by loosening of the locking screws. Remove
V1
16 / 45
Connection YELLO for
clamp movement „
open "
Connection RED for
clamp movement
„close "
