Adjustments
5.1.6

Gripper Widening

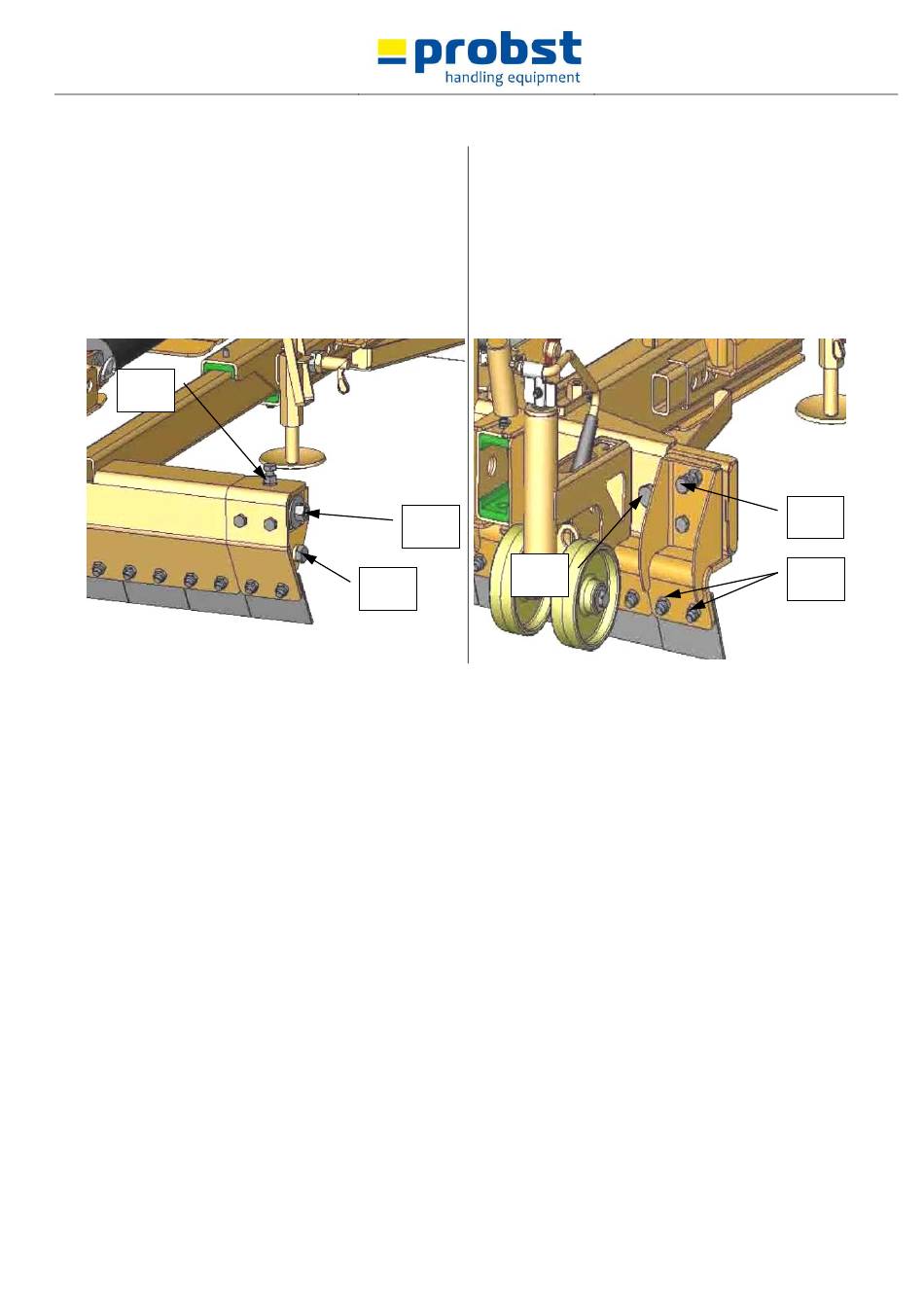

Remove or mount the gripper widening at the main
gripping (laying side) corresponding to the breadth of
the stone layer. Unscrew and remove the adjusting
screw „B" to remove the gripper widening.
Unscrew the adjusting screw „A"
With adjusting screw „C" the pretension of the outer
steel-lamella can be adjusted. For them loosen the
screw "A" and "B" , adjust the pretension and fasten
the screws again.
(C)
5140.0042
Remove or mount the gripper widening at the main
gripping (machine side) corresponding to the breadth
of the stone layer. For them remove screw "D".
Adjust the adjusting screw „E" for pretension/angular
position of the outer steel-lamellas to the stone layer.
Loosen screw "F" a little. Adjust screw "E" and fasten
screw "F" again.
(A)
(D)
(B)
Fig. 22
V1
28 / 45
(E)
(F) (F)
Fig. 23
