Adjustments

5 Adjustments
5.1

General

For all adjustments the device must be completely shut down!
Caution with all adjustments exists danger of injury the hands!
5.1.1

Adjusting the gripping depth

5.1.1.1

Facing bedding sand

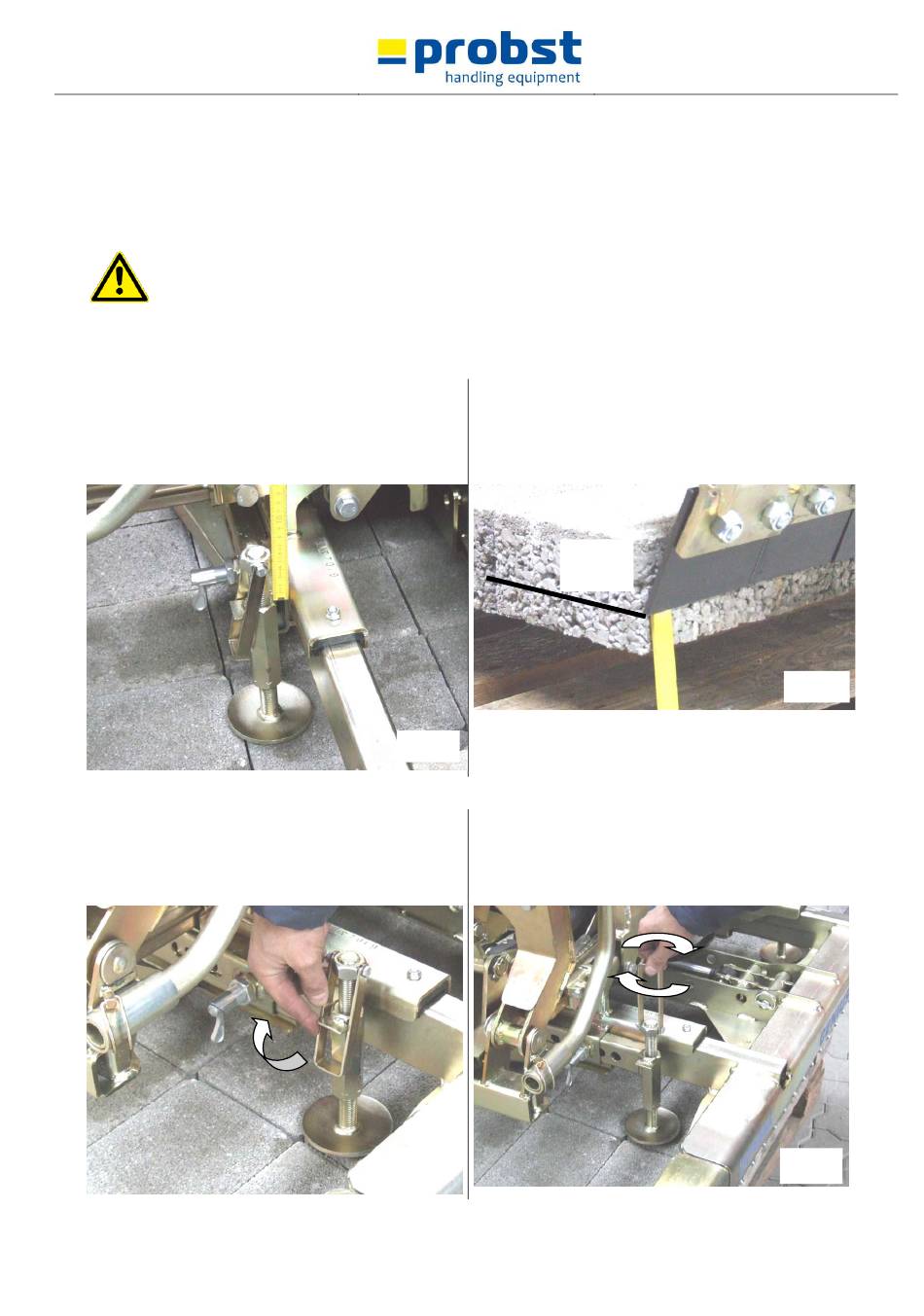

Adjust the gripping depth (laying side) so, that the steel-
lamellas are gripping in the lower
(see fig. 2).
Swing crank upwards to adjust the gripping depth.
5140.0042
With extremely large stone layers it recommends to adjust the
⅓ gripping depth a little lower, so that the steel-lamellas grip in
of the stone layer
the lowest range of the stone layer. Otherwise it exist the
danger that the stone layer breaks out.
Fig. 1
Adjust the gripping depth identical on both sides of the
device.
Swing crank downwards and secure it in the same
position, as shown in fig.3.
Fig. 3
V1
⅓
19 / 45
Fig. 2
Fig.4
