General

2.9.3

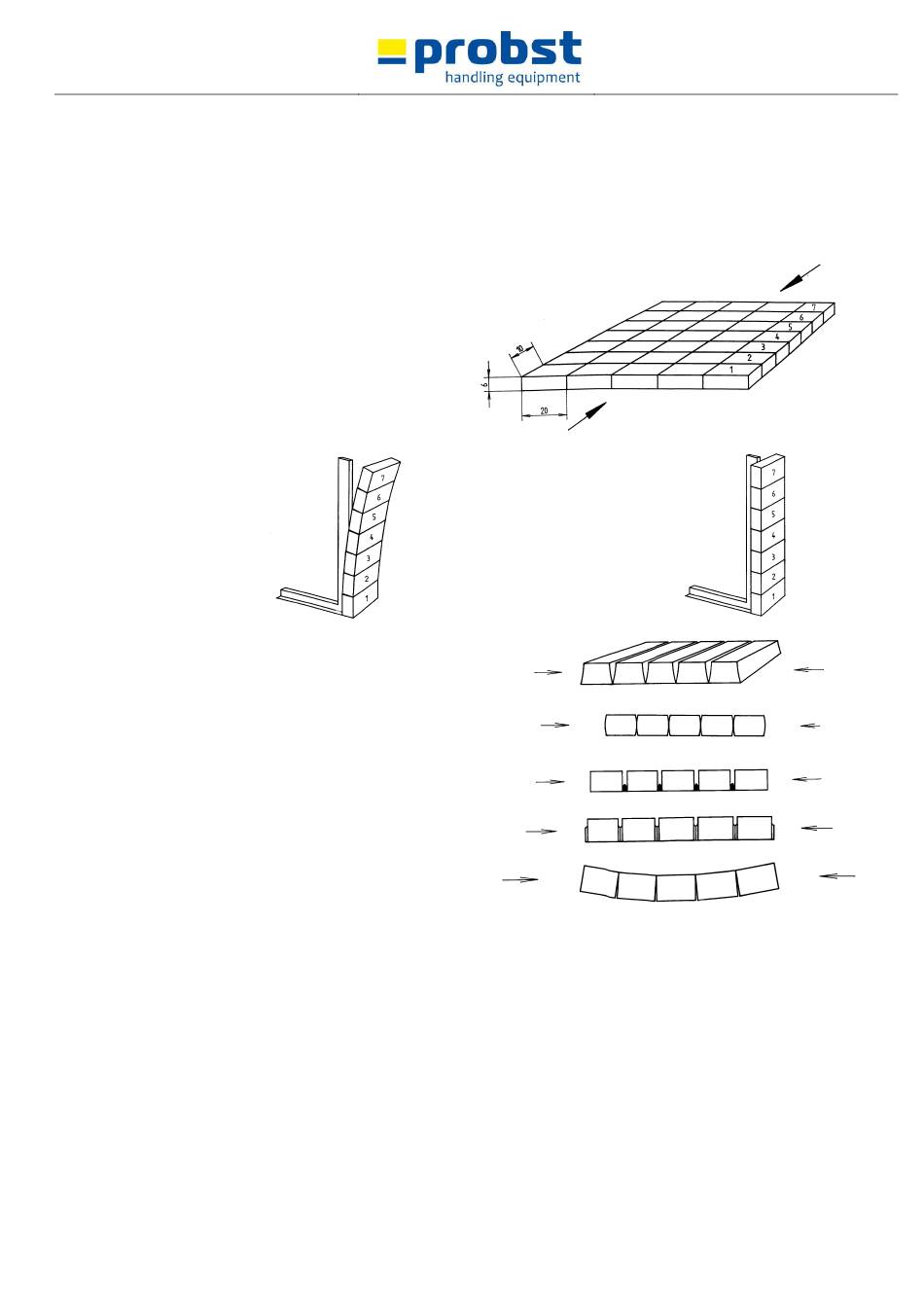

Check on the gripping quality of certain layers of paving stones

For the secure function of the automatic cuber/the device the gripping quality of certain layers of paving stones has to be
checked as follows:
Take the number of blocks you want to grip. The blocks in
main gripper direction have to face the ground.
If the tower is falling, the
blocks can fall out of the
cube moving grab STAZ.
Blocks have "feet" (for instance by torn paver moulds)
Blocks have "bellies" (for instance by wet mixture)
The sand in the gabs of the lowest layer enforces "bridges"
(just with multi layer production)
Spacers do not reach the top ("blind Spacers")
Conclusion: Layer of blocks falls down and tears apart
3 General
3.1

Authorized use

•
This Hydraulic Installation Clamp HVZ-GENIUS was developed to meet the need of builders for a device to
mechanically install awide range of pavers which are delivered to the site in ready-to-install formation. The HVZ-
GENIUS may be used in connection with any excavator with a minimum dead weight of 3,500 kg (7716 lbs).
•
To operate the hydraulic installation clamp 2 separate hydraulic circuits are required on the carrier (1x for HVZ-
GENIUS and 1x for hydraulic rotator).
•
With the device (HVZ-GENIUS) it is possible to handle one layer of pavers. Do not exceed the carrying capacity and
the max. width of the device. Only pavers in good quality are allowed for laying. Pavers with „feet, bellies and blind
spacers" are not allowed", because the complete bricklayer could fall out of the device.
5140.0042
If the tower is standing, the
gripping quality is OK.
V1
10 / 45
main gripper
direction
