Installation

4 Installation
4.1

Mechanical connection

Use only original accessories, in case of doubt consult the manufacturer.
Take care that the carrying capacity / working load limit (WLL) of the lifting device/carrier is not exceeded,
through the load of the device, the attaching devices (turning device, fork sleeves etc.) and the additional
load of the gripping goods!
Gripping devices always have to be gimballed, so they can swing freely in any position.
In no case it is allowed to mount gripping devices with lifting devices/carriers in a rigid way!
Break of the suspension may occur within short time. Death, severe injuries and material damage can
result!
The mechanical connection of the HVZ to the carrier device takes place with the universal-excavator-suspension (UBA or
Lehnhoff-adapter).

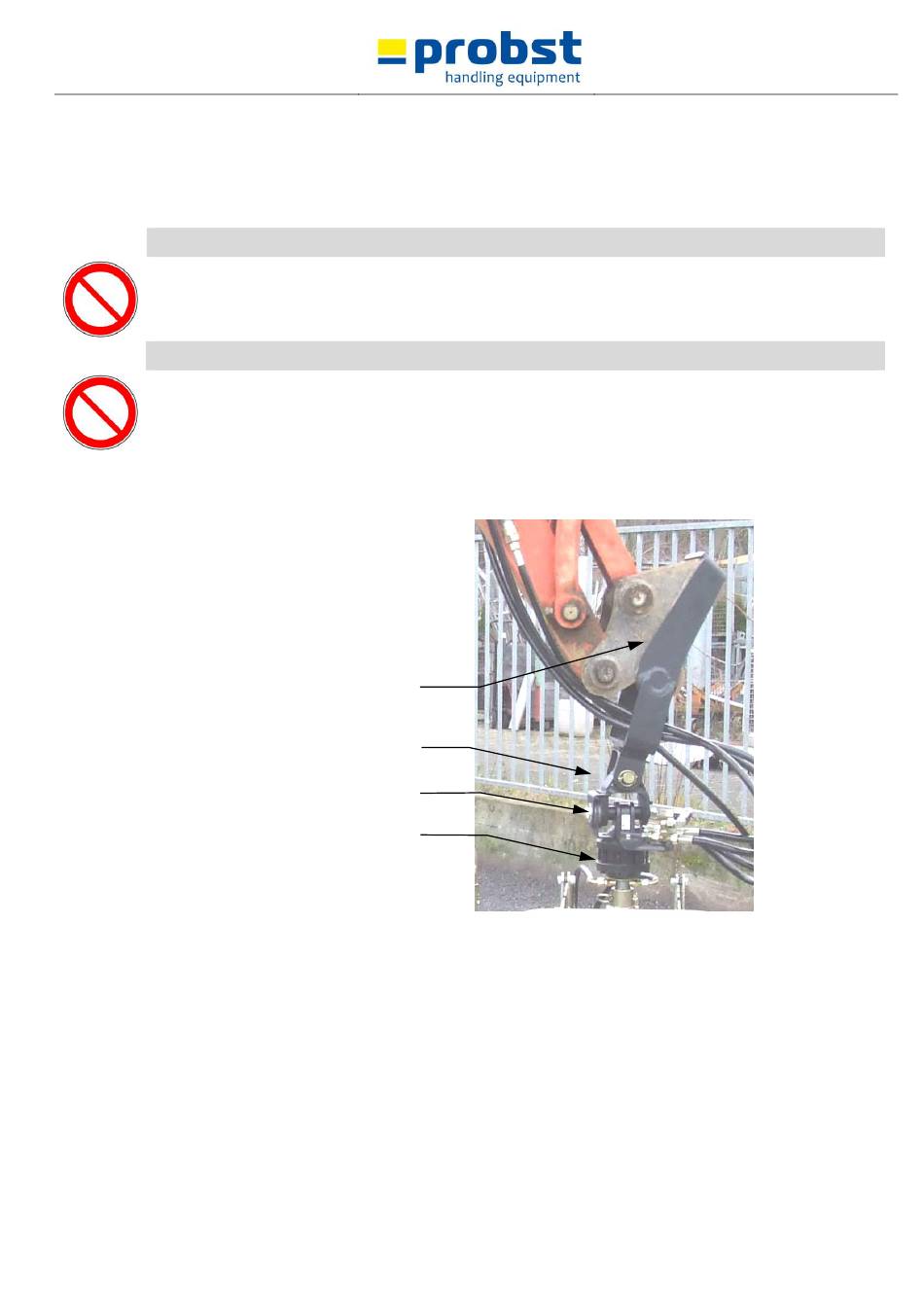

Excavator-suspension Lehnhoff-adapter
Make a secure connection (bolt with locking ring) between
the rotating head and the excavator-suspension.
5140.0042
Excavator suspension
(Lehnhoff-adapter)
Safety bolt with locking
Grab swing brake
Rotating head
V1
