5.1.3

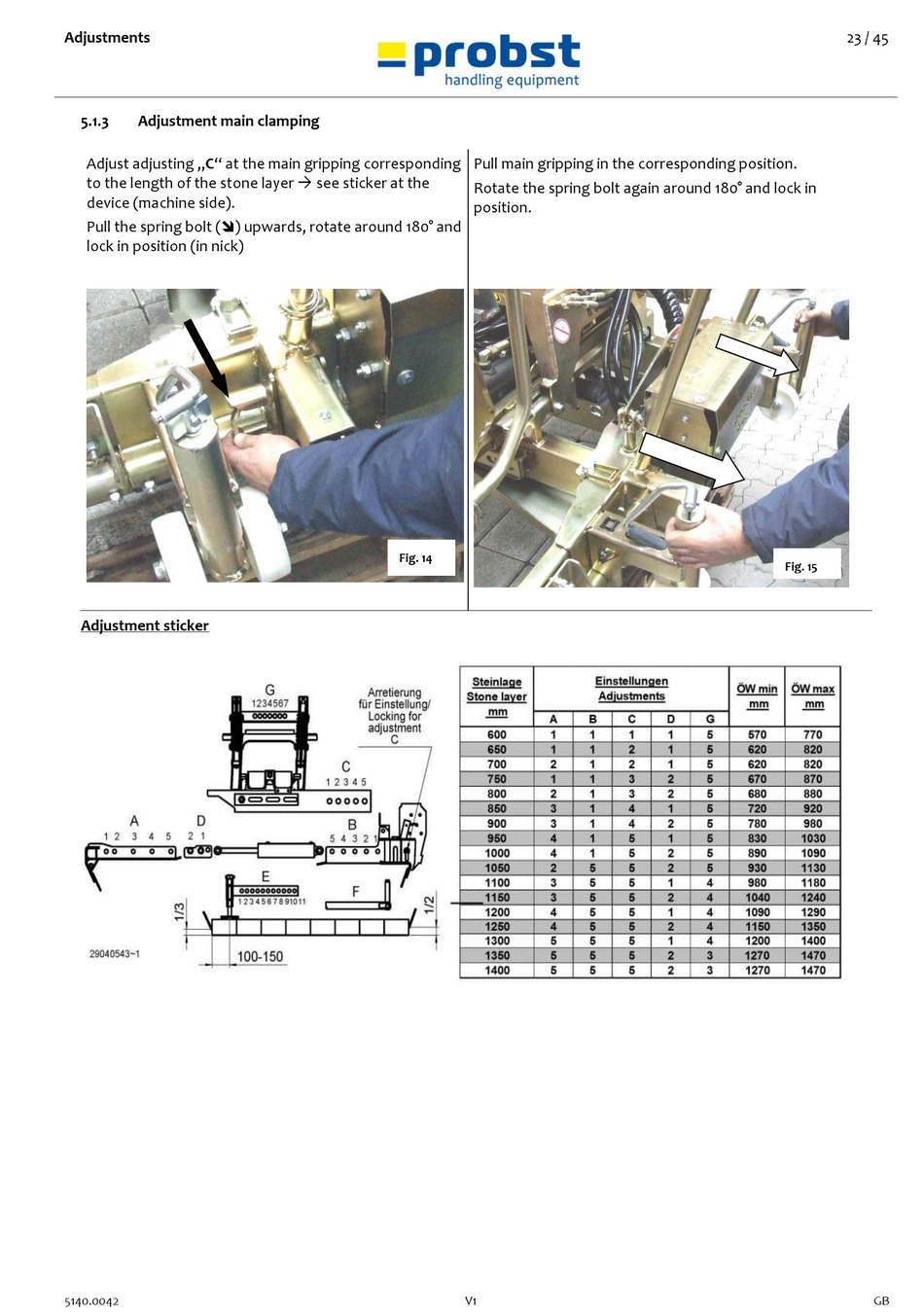

Adjustment main clamping

Adjust adjusting „C" at the main gripping corresponding
to the length of the stone layer → see sticker at the
device (machine side).
Pull the spring bolt () upwards, rotate around 180° and
lock in position (in nick)
Adjustment sticker
5140.0042
Pull main gripping in the corresponding position.
Rotate the spring bolt again around 180° and lock in
position.
