Adjustments

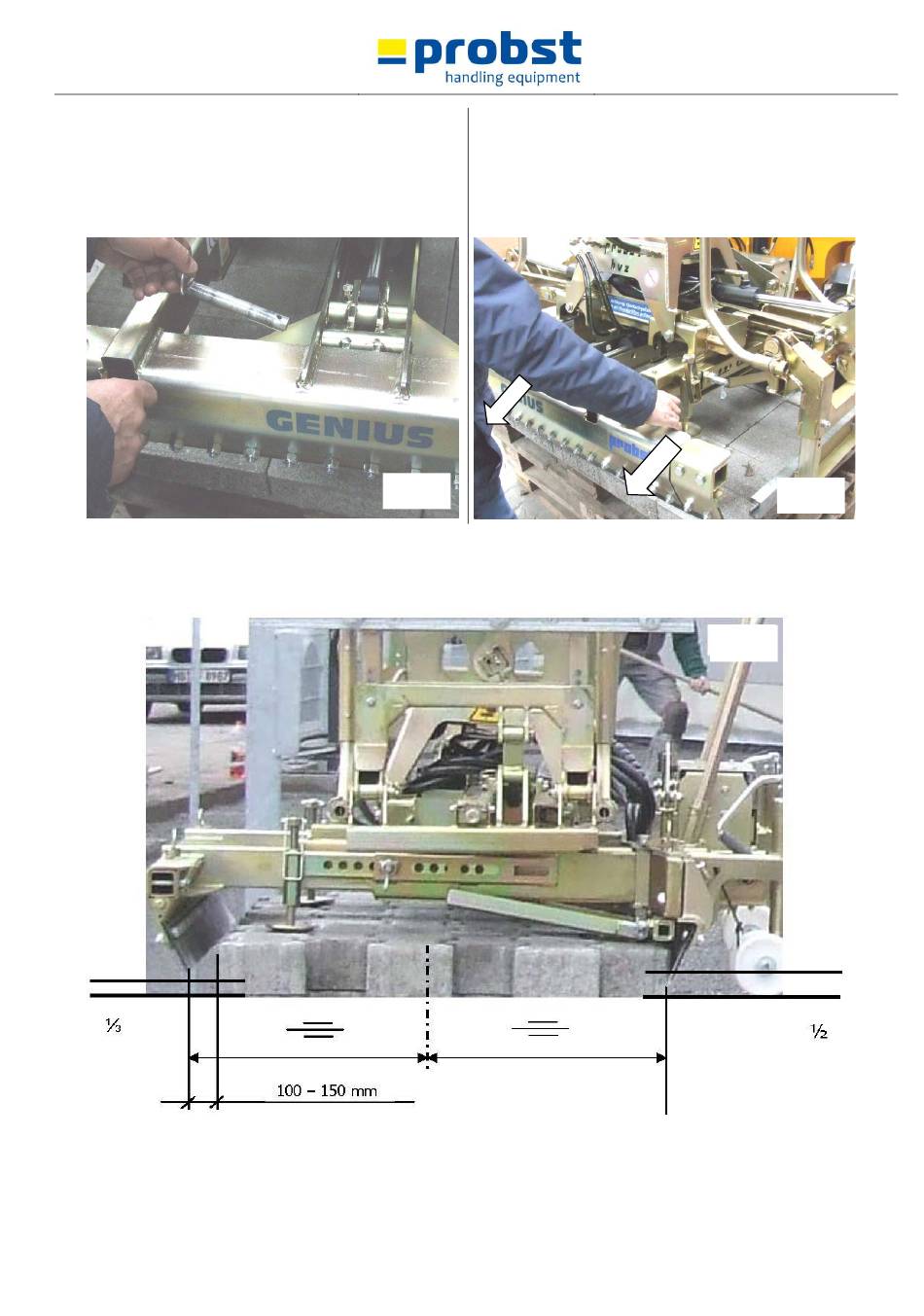

Remove bolt.
The device (HVZ GENIUS) is optimally adjusted, if during the gripping procedure with opened device the steel
lamellas (machine side) contact directly on the stone layer and when the steel lamellas (laying side) have distance
to the stone layer of 100 -150 mm.
5140.0042
Pull main gripping in the corresponding borehole
position (see fig. 19) and insert bolt again (see fig. 15).
Secure bolt with safety clip (as shown in fig.17) again.
Rotate the spring bolt again around 180° (as shown in
fig.17) and lock in position (see adjustment sticker at the
device).
Fig. 18
V1
25 / 45
Fig. 19
Fig. 20
