Adjustments
5.1.7

Adjustment side gripping

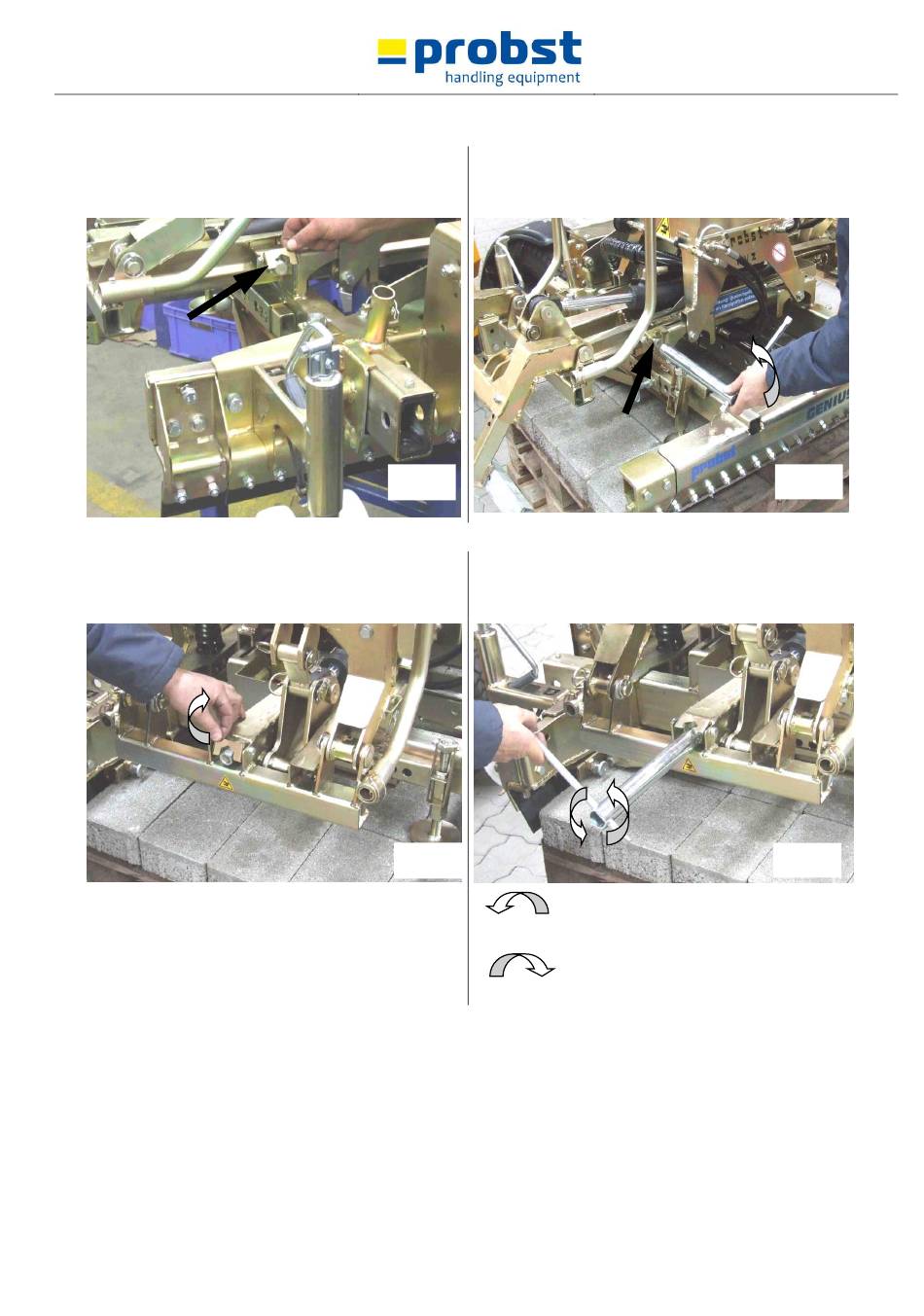

Lift up both screw locking devices (see arrow) at side
clamping (see on the left and on the right at the main
gripping side of the device).
When adjusting the side clamping corresponding to the
stone layer breadth, lift up the screw locking devices.
5140.0042
Open clamping screw with a socket spanner.
Turn down screw locking devices again.
Fig. 24
Adjust the side clamping with the socket spanner
according to (at the side gripping).
Then turn down the screw locking devices again.
Fig. 26
= Enlargement of the side clamping
= Reduction of the side clamping
