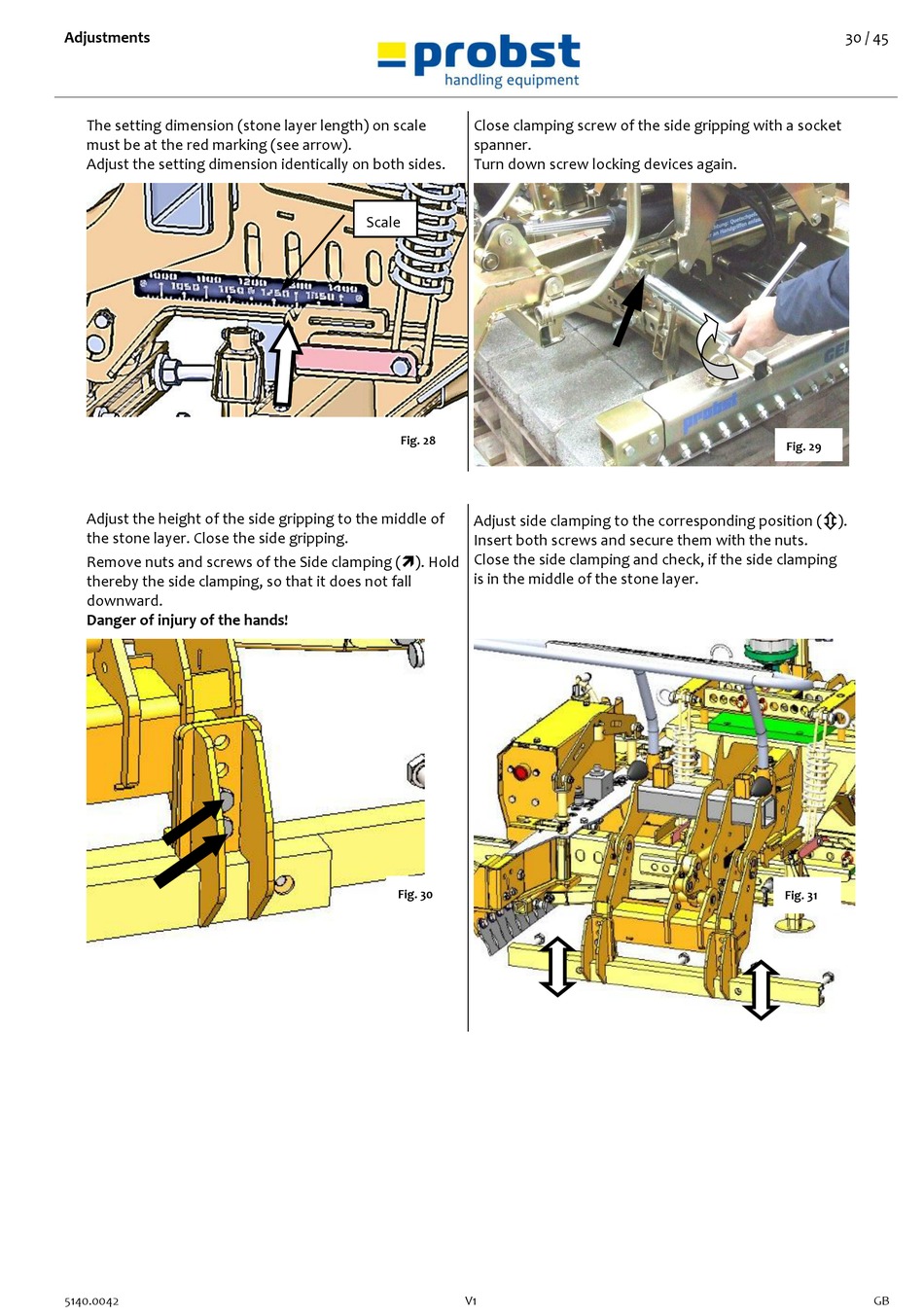

Adjustments
The setting dimension (stone layer length) on scale
must be at the red marking (see arrow).
Adjust the setting dimension identically on both sides.
Adjust the height of the side gripping to the middle of
the stone layer. Close the side gripping.
Remove nuts and screws of the Side clamping (). Hold
thereby the side clamping, so that it does not fall
downward.
Danger of injury of the hands!
5140.0042
Close clamping screw of the side gripping with a socket
spanner.
Turn down screw locking devices again.
Scale
Fig. 28
Adjust side clamping to the corresponding position (
Insert both screws and secure them with the nuts.
Close the side clamping and check, if the side clamping
is in the middle of the stone layer.
Fig. 30
V1
30 / 45
Fig. 29

).
Fig. 31
