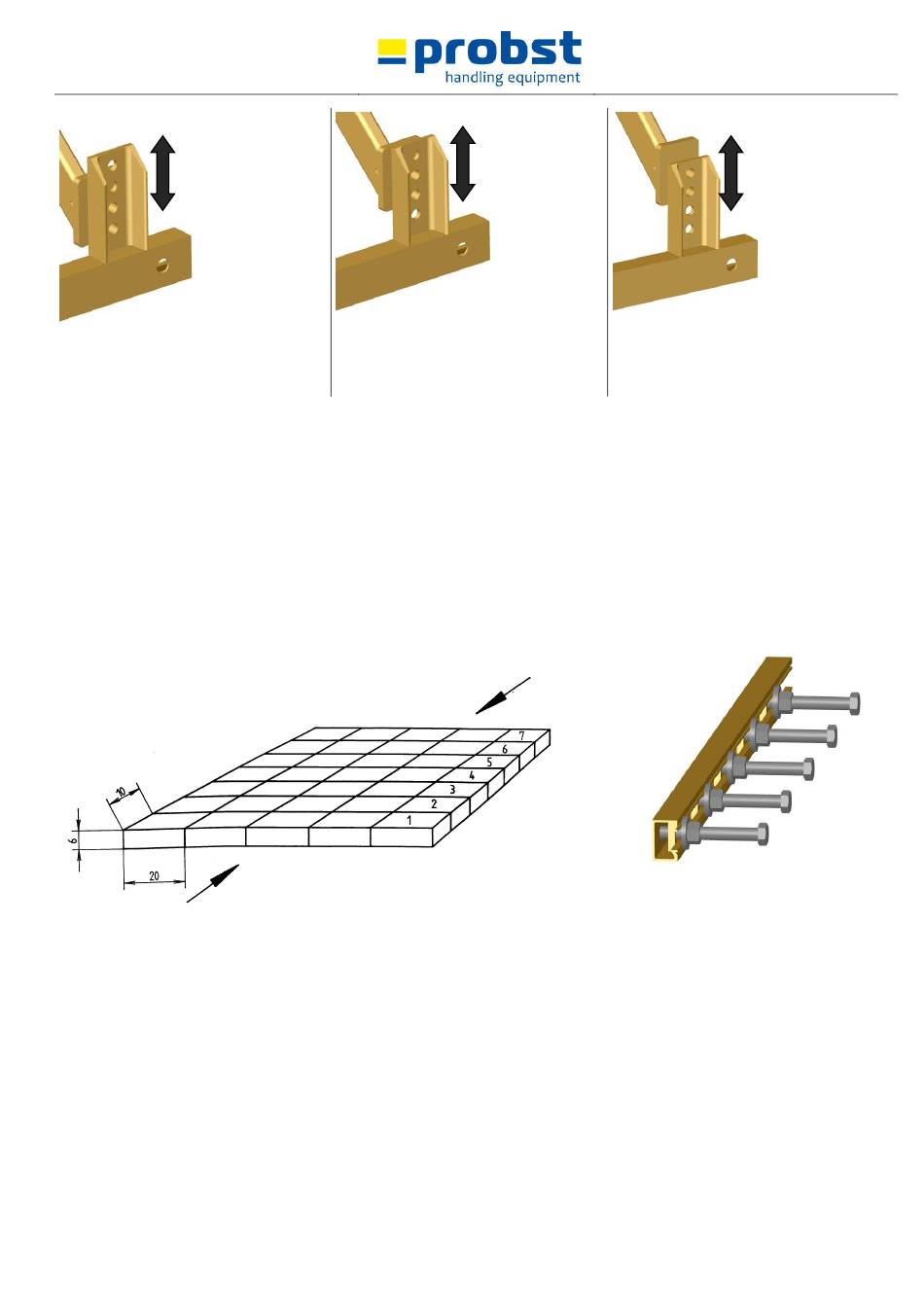

Adjustments
paver thickness 6 cm
depth-adjustment in position 1
Opening width side
clamping
(with shifting of the laying cluster
into running bond)
5140.0042
Fig. A
•
paver thickness 8 cm
depth-adjustment in position 2
•
direction The HVZ-GENIUS with its powerful side clamping action, is capable to shift
not dentated layers of pavers which are palletized in cross bond into the
running bond.
•
To do this special positioning adapters (special accessories) are fixed on
the C-profiles of the side clamp. The number of positioning adapters,
which are needed, is identical with the numbers of rows in main clamping
direction (for example 7 adapters, as shown in this example, of the paver
layer or 5 adapters as shown on the example, mounted on the C-profile)
Direction of main gripping
Fig. B
paver thickness 10 cm
depth-adjustment in position 3
