CONNECTIONS
■ Video jacks
This unit has four types of video jacks (composite, component, S-video and HDMI). Connection depends on the
availability of input jacks on your monitor. When Conversion is set to On (see page 81), the analog video signals input at
the VIDEO, S VIDEO and COMPONENT VIDEO jacks can be output at the VIDEO, S VIDEO and COMPONENT
VIDEO jacks interchangeably. In addition, when Conversion is set to On (see page 81) and HDMI Up-Scaling is set to
On (see page 81), the analog video signals input at the VIDEO, S VIDEO and COMPONENT VIDEO jacks can be
digitally up-converted and output at the HDMI OUT jack.
VIDEO jacks
For conventional composite video signals.
S VIDEO jacks
For S-video signals, separated into luminance (Y) and
color (C) video signals to achieve high-quality color
reproduction.

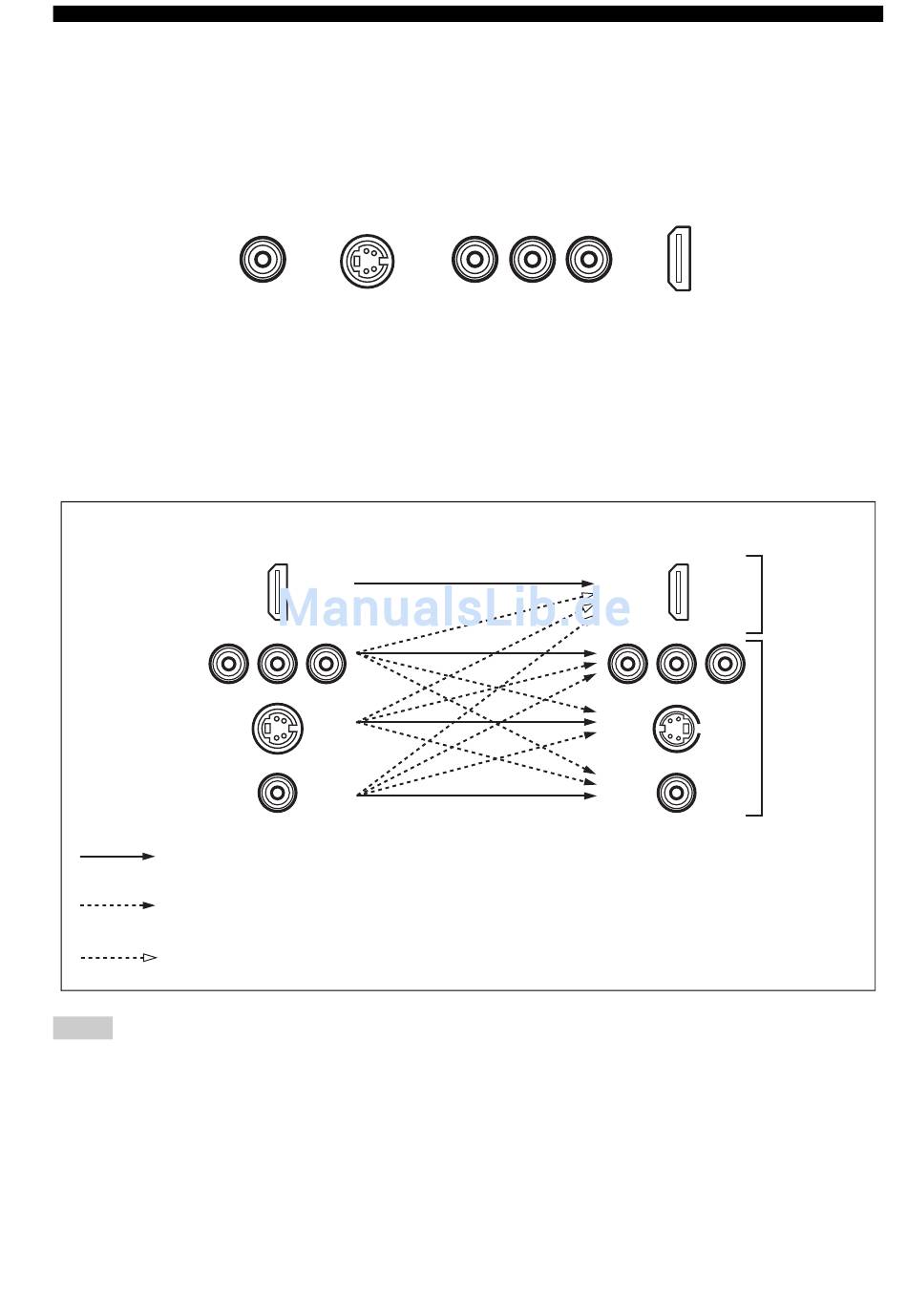

■ Video signal flow for MONITOR OUT
HDMI
COMPONENT
VIDEO
S VIDEO
VIDEO
Through
Component I/P (see page 81) only when Conversion is set to On (see page 81)
HDMI Up-Scaling (see page 81) only when Conversion is set to On (see page 81)
Notes
• The analog video signals output at the COMPONENT VIDEO jacks can be deinterlaced from 480i (NTSC) or 576i (PAL) to 480p
(NTSC) or 576p (PAL). Set Component I/P to On in Manual Setup to activate this feature (see page 81).
• The analog video signals input at the COMPONENT VIDEO jacks and output at the S VIDEO or VIDEO jacks cannot be converted to
480p (NTSC) or 576p (PAL) /1080i/720p.
• The analog video signals output at the HDMI jack can be up-scaled to 480p/1080i/720p.
• When the analog video signals are input at the COMPONENT VIDEO, S VIDEO and VIDEO jacks, the priority order of the input
signals is as follows where the analog video signals input at the COMPONENT VIDEO jacks have the top priority.
1. COMPONENT VIDEO
2. S VIDEO
3. VIDEO
22
S VIDEO
VIDEO
Input
COMPONENT VIDEO
Y P P
B R
COMPONENT VIDEO jacks
For component signals, separated into luminance (Y) and
color difference (P , P
B R
picture reproduction.
HDMI jacks
For HDMI digital video signals.
(MONITOR OUT)
HDMI
) to provide the best quality in
Output
Digital video
Analog video
