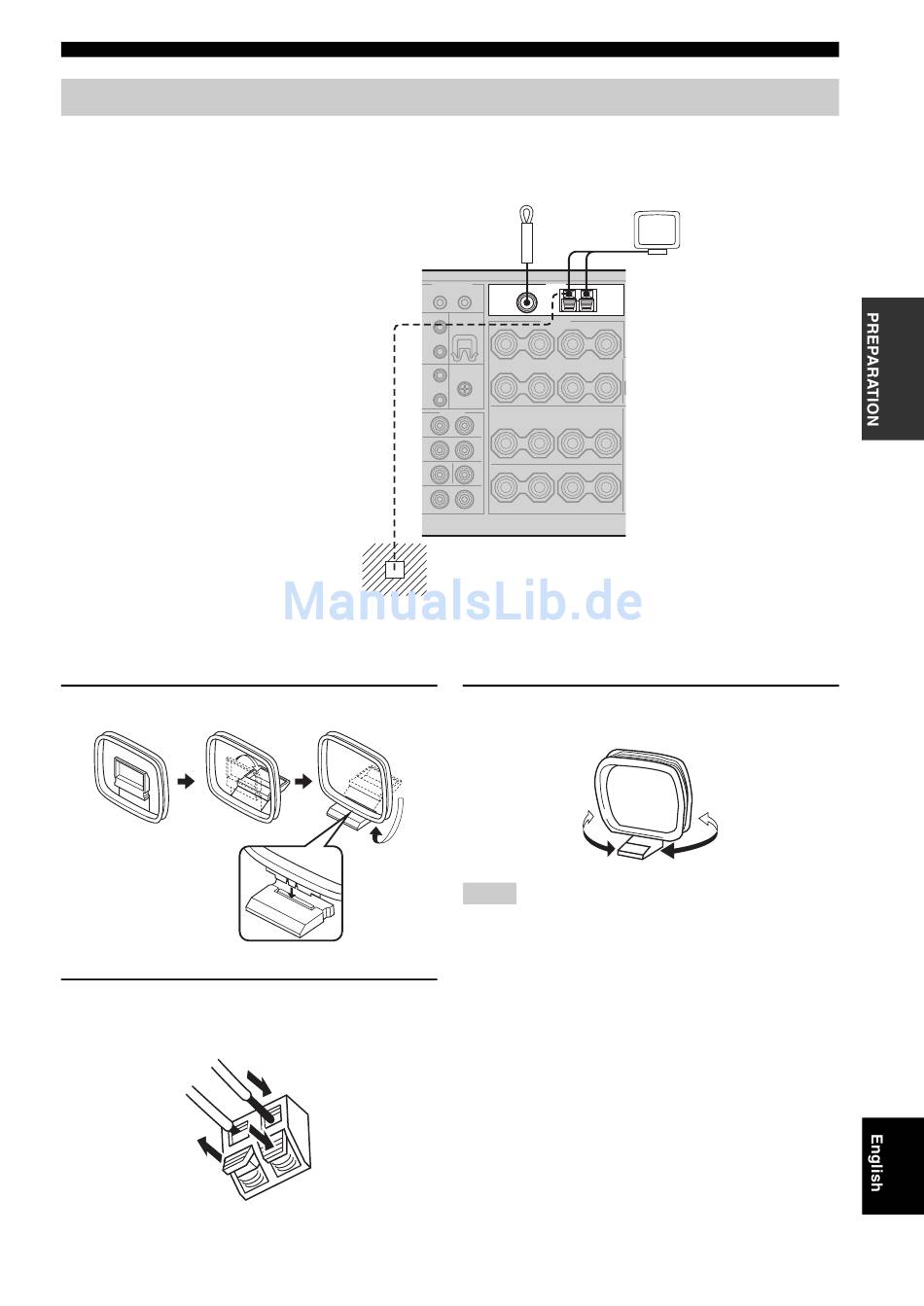

Connecting the antennas

Both AM and FM indoor antennas are included with this unit. In general, these antennas should provide sufficient signal
strength. Connect each antenna correctly to the designated terminals.
Ground (GND terminal)
For maximum safety and minimum interference,
GND
connect the antenna terminal to a good earth
ground. A good earth ground is a metal stake driven
into moist earth.

■ Connecting the AM loop antenna

1
Set up the AM loop antenna.
2
Press and hold the tab to insert the AM loop
antenna lead wires into the AM ANT and GND
terminals.
Indoor FM antenna
(included)
TUNER
FM ANT GND
75Ω
UNBAL.
3
Orient the AM loop antenna for the best
reception.
Notes
• The AM loop antenna should be placed away from this unit.
• The AM loop antenna should always be connected, even if an
outdoor AM antenna is connected to this unit.
• A property installed outdoor antenna provides clearer reception
than an indoor one. If you experience poor reception quality, an
outdoor antenna may improve the quality. Consult the nearest
authorized YAMAHA dealer or service center about outdoor
antennas.
CONNECTIONS
AM loop antenna
(included)
AM ANT
29
