4.4 XL 105 Coating Unit

66
Operating Manual
1
Attention: When using a register flexible die it is necessary to use additional packing.
This packing must NOT be used with a grid sheet.
Instructions for use with grid sheet

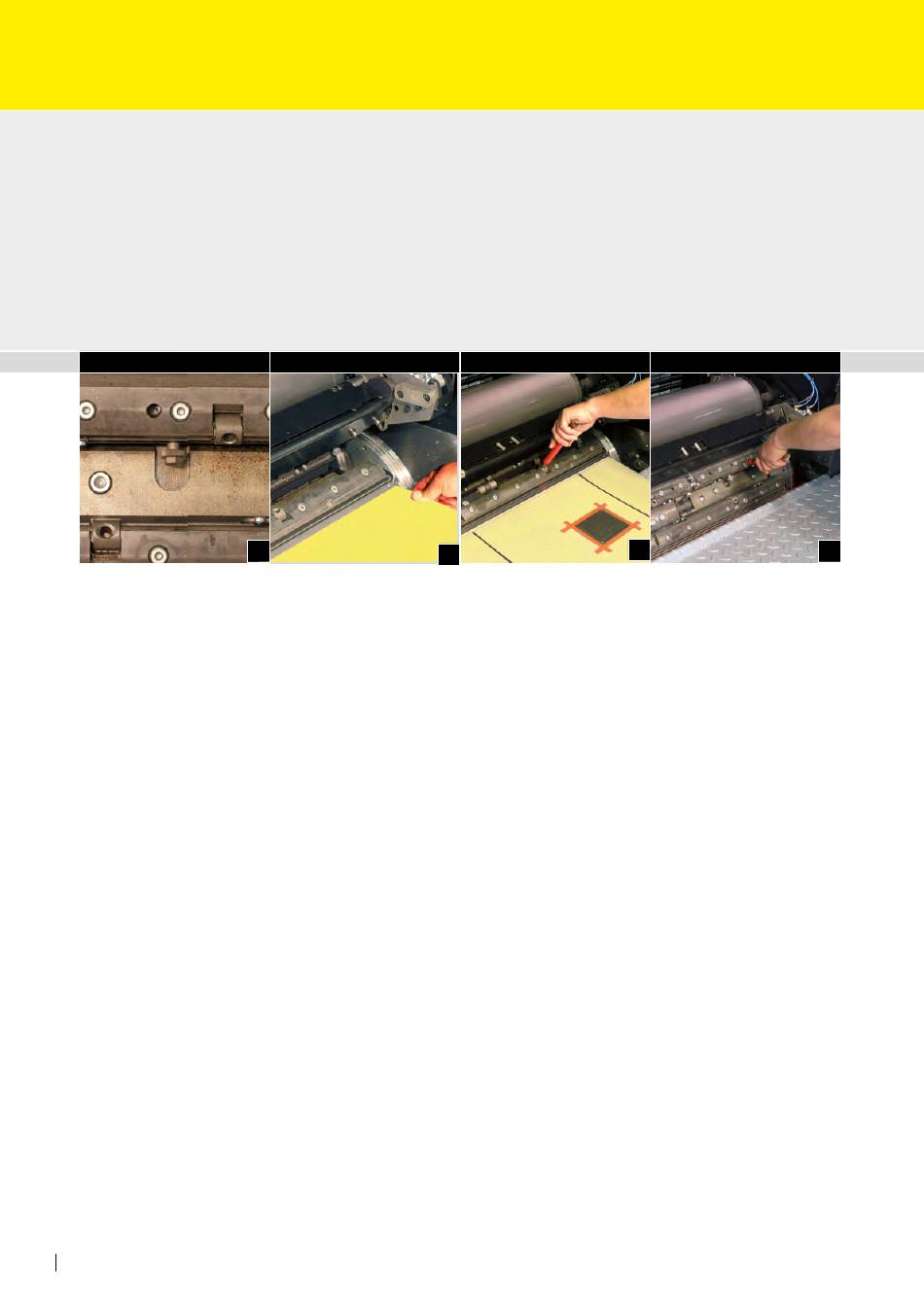

Attention: Set rough register adjustment to zero position (Fig. 1)
• Remove anilox roller
• Remove channel cover on coating cylinder
• Loosen clamping shafts on coating cylinder
• Remove coating blanket/coating plate and packings
• Secure RSP base plate with thickness of 1.90 mm into packing clamping rail and hang
into the machine (Fig. 2)
Ensure that no packing foils are attached to the blanket cylinder; if these are present
the adhered packing foils should be removed.
• Move mounted grid sheet into the front clamping device and pay attention to correct
fitting on the register pins, close clamp eccentric on the front clamping device (Fig. 3)
• Inch the grid sheet forwards
• Insert the grid sheet in rear clamping device, activate manual pressure roller, then close
the centre clamp eccentric. Then close the right-hand and left-hand clamp eccentrics
(Fig. 4)
• Disengage the manual and pneumatic pressure roller
• Clamp grid sheet using torque wrench set to 25 Nm (Fig. 5)
• Reattach channel cover on coating cylinder
2
3
4
