Operating Manual
2a 1
• Check that all retaining hooks in the upper section of the closure hinge are correctly
engaged
• Draw in the RSP grid sheet or RSP direct fit flexible die together with the base plate
by inching forward

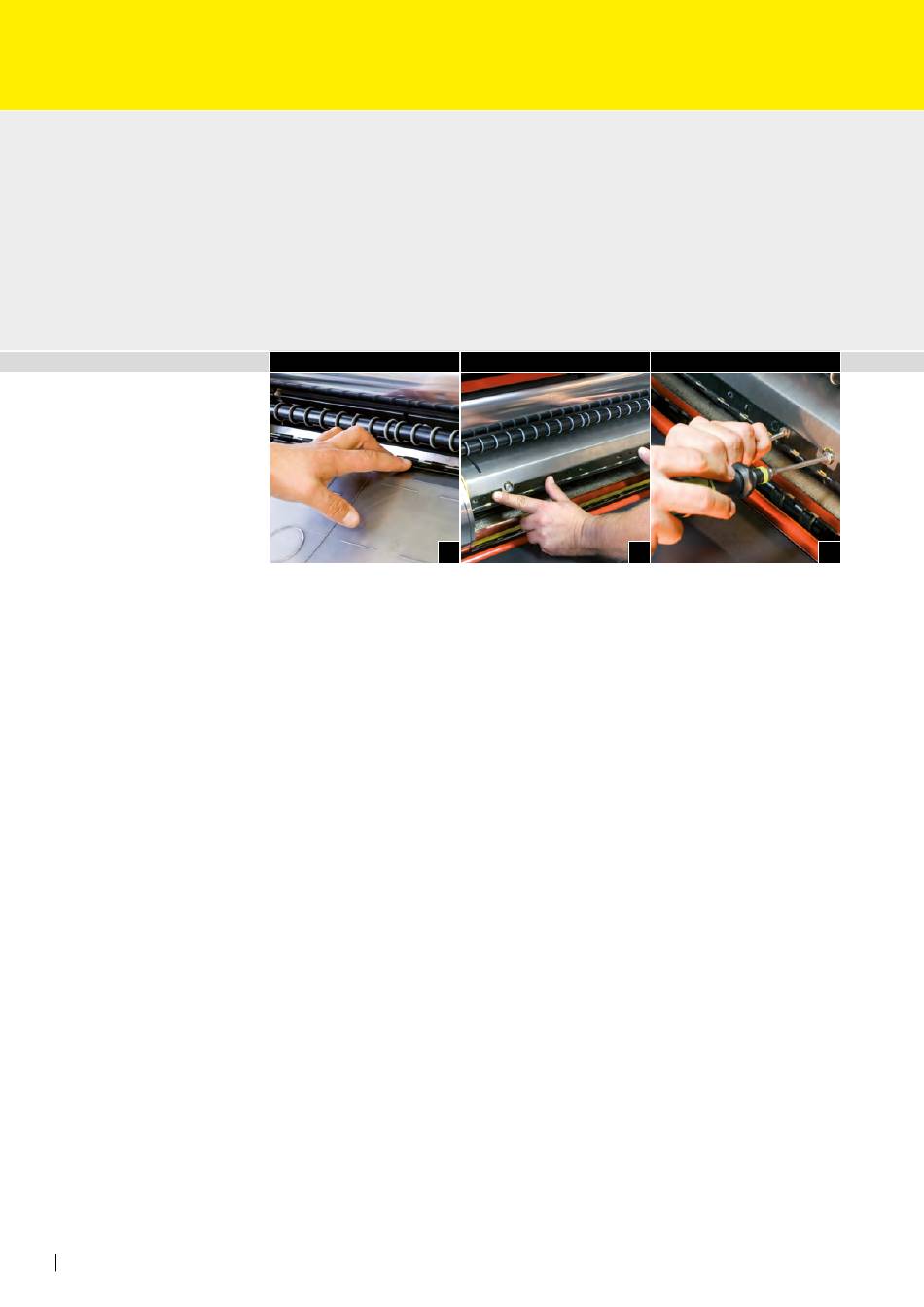

• Loosen the locking screws of the rear closure hinge (Fig. 3)
• Open the rear closure hinge using the unlocking tool
• Hang the RSP grid sheet or RSP direct fit flexible die in the dome of the rear hinge
lower section and close the closure hinge by pressing together (Fig. 3a)
• Check that all retaining hooks in the upper section of the closure hinge are correctly
engaged
• Now insert the unlocking tool in the recess in the rear closure hinge, pull the lock-
ing hinge downwards to tension the RSP grid sheet or RSP direct fit flexible die, and
simultaneously tighten the locking screws using the pre-set RSP TX 20 torque screw-
driver (1.2 Nm) (Fig. 4/4a)
• Check that the RSP grid sheet or RSP direct fit flexible die is lying and in contact with
the RSP base plate at the rear and front edges. If not, repeat the tensioning of the grid
sheet
