4. Installation instructions for
RSP System 2.0
60
Operating Manual
(according to machine type)
1
4.1 SM 52 Printing Unit and SM 52 Coating unit DryStar Coating
Clamping the RSP base plate
Important note:

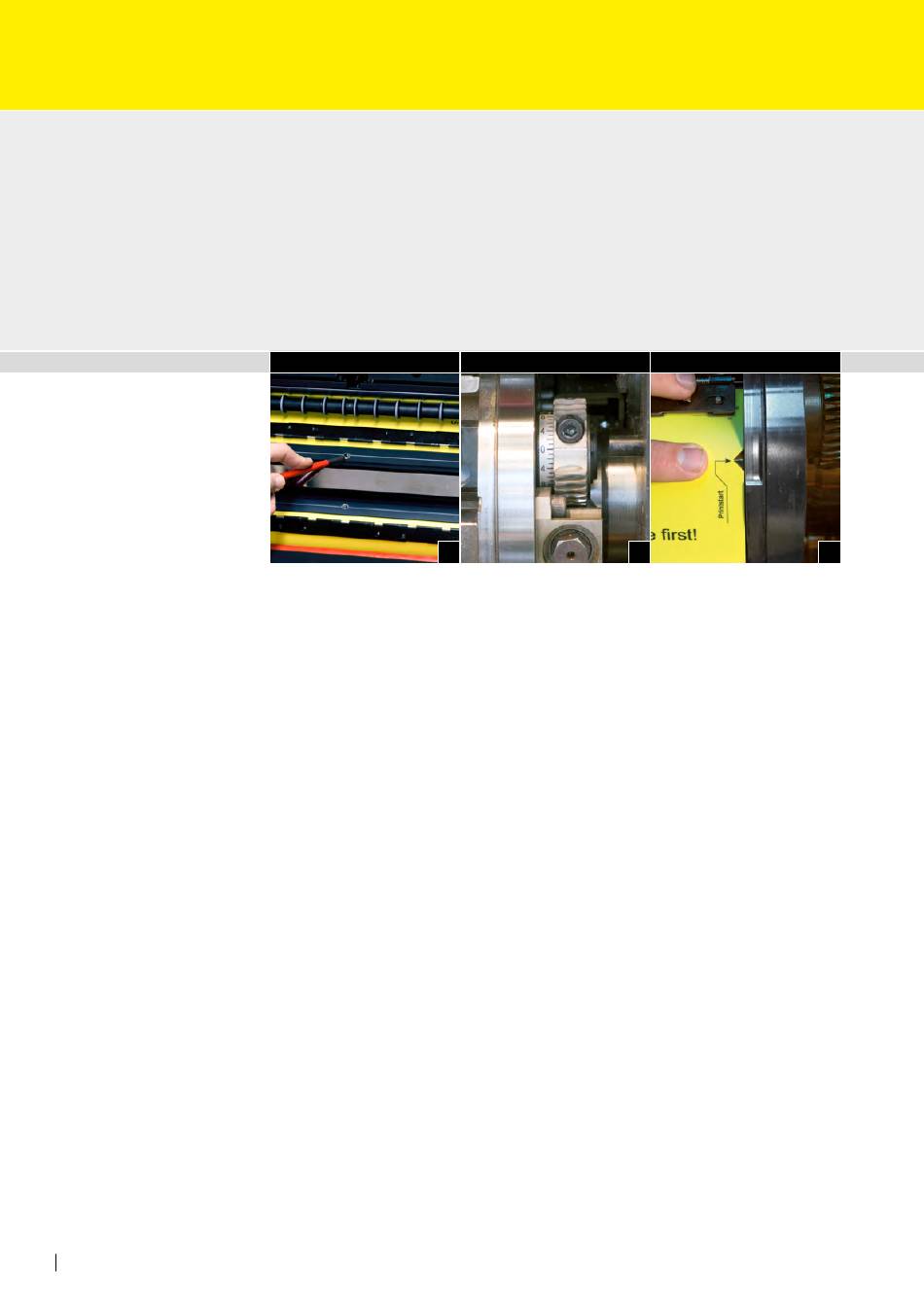

During installation make sure that the spring bolt rests in place on both the front and
rear blanket clamping shafts (Fig. 1)
It is also essential that the circumferential adjustment for positioning the blanket on
the rear clamping shaft is set to 0 on the scale (Fig. 2) prior to each installation of the
base plate.
• Mount the base plate on the front clamping bar into the holding claws of the
clamping shaft
• Press the clamping bar in the opposite direction of the holding claw spring force
downward making sure that the clamping bar latches in the clamping shaft
• Place the front edge of the base plate on Printstart.
• Mount a calibrated packing sheet between the base plate and the blanket cylinder
• Inch the press forward until the base plate is inched in up to the rear edge
• Unscrew the tensioning screws by 3 full revolutions to mount the rear edge of
the base plate.
Attention: the machine must not be run or inched forward while in this position
because the front edge of the base plate is not in the Printstart position
• Mount the base plate into the rear clamping shaft. Press the clamping bar in the
opposite direction of the holding claw spring force downward until the clamping
bar latches in the clamping shaft
• Tighten the base plate by turning the tensioning screws with a torque wrench set
at 25 Nm
• Re-check the Printstart position on the front edge (Fig. 3)
1 2 2 3 3
