3 Step: Fitting the RSP grid sheet or RSP direct fit flexible die
rd
Important note:
Please check before installation of the base plate that the closure hinge at the front edge
has been set to the central position with the register adjustment.
The RSP direct fit flexible die is 0.30 mm lower (no compensation required) than an RSP
grid sheet with attached tool. Therefore always set the cylinder spacing to a sufficient
distance (0.35 mm) whenever changing an RSP grid sheet / RSP direct fit flexible die.
The RSP system 2.0 must only be operated – even during inching of the press – with
the locking hinge closed!
Always tighten the locking screws to a torque of 1.2 Nm. Use only the TX 20 torque
screwdriver supplied to loosen and tighten the screws.
When installing and removing the RSP direct fit flexible dies, we recommend wearing
safety gloves (RSP accessories).

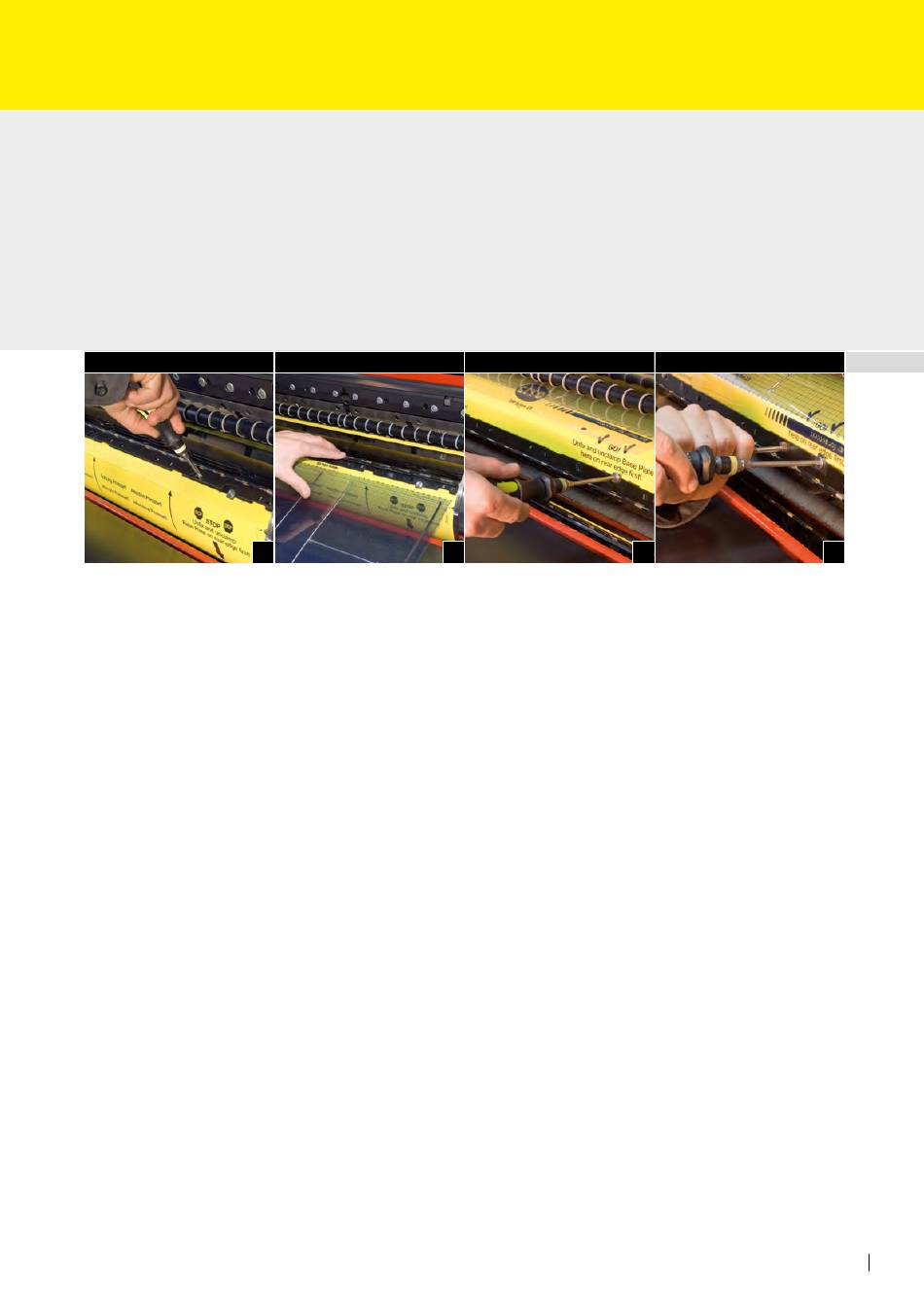

• Open the front closure hinge using the unlocking tool (Fig. 1)
• Hang the assembled RSP grid sheet or RSP direct fit flexible die with the print start
side in the dome of the front hinge lower section; close the front closure hinge by
pressing together (Fig. 2/2a)
2 2 3 3
