Instructions for use with register flexible die
•
Remove anilox roller
•
Remove protective cover on coating cylinder
•
Remove blanket
•
Unscrew front and rear clamp eccentrics
•

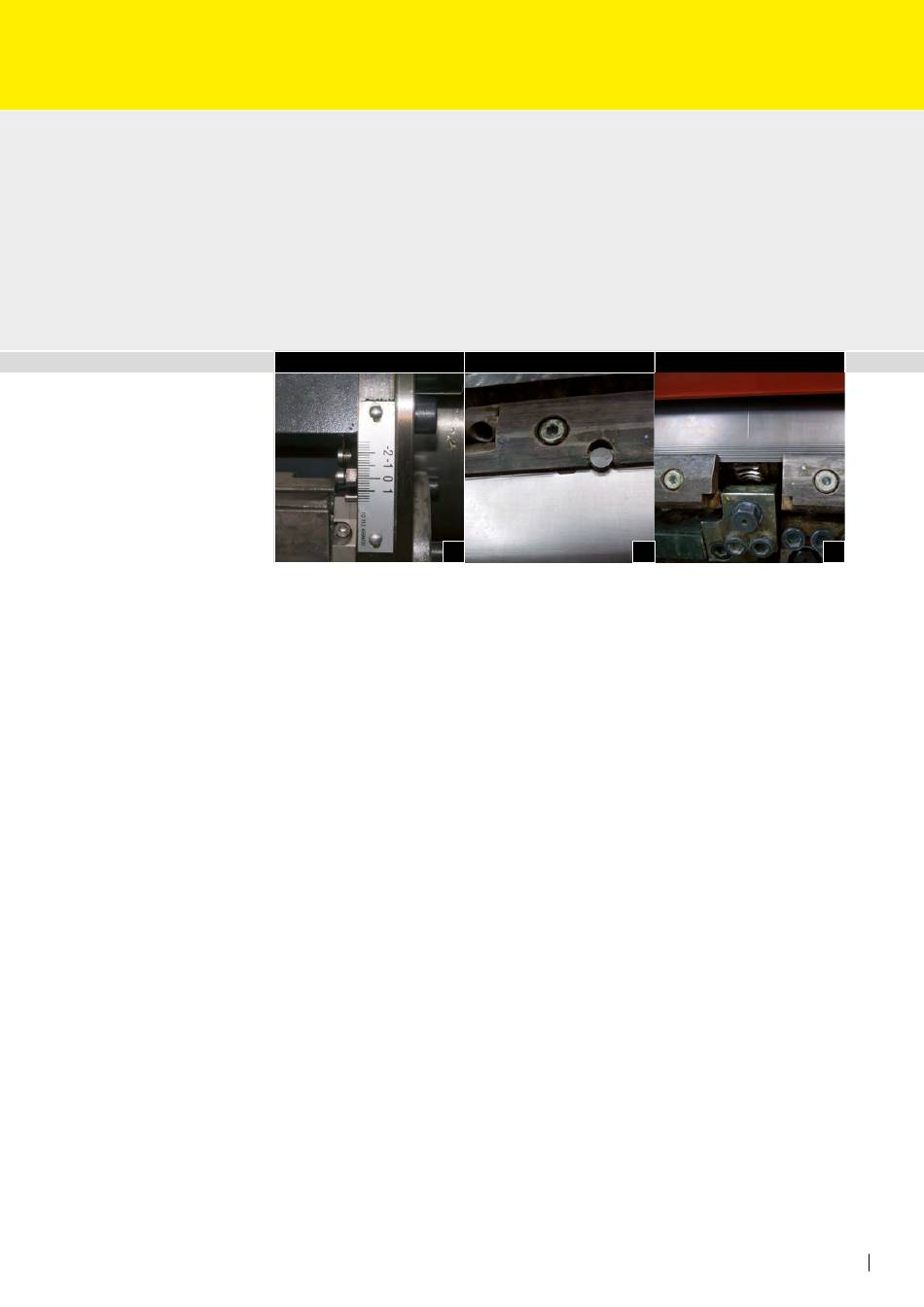

Set the print start pointer on operating side to + 0.2 mm (1 stop) (Fig. 1)
•
Fasten RSP register flexible die packing 1.20 mm thick in the pass rail and retaining rail.
•
Ensure that no packing foils are attached to the blanket cylinder, otherwise adjust the
packings as necessary.
•
Fit retaining rail into holes on cylinder channel
•
Insert plastic base plate with clamping rail into front clamping rail mounting
•
Hang RSP register flexible die into front clamping rail and close the eccentric (Fig. 2)
•
Activate the pressure roller
•
Draw in the register flexible die
•
Hang the register flexible die into rear clamping rail and close eccentric
•
Disengage the pressure roller
•
Clamp register flexible die with clamping bolts on rear edge using torque wrench set
to 30 Nm (Fig. 3)
•
Tighten front tightening shaft until zero position
•
Check correct tensioning of register flexible die and correct positioning of register
flexible die and packings
•
Reattach protective cover on coating cylinder
1
1
2
2
Operating Manual
3
3
65
