Multilingual Meetings / Interpreting Applications

For multilingual meetings or interpreting applications you must complete the MCW-D 200 control unit with the CA 2451 PCB for analogue
individual inputs and outputs.
Important:
The CA 2451 PCB is installed at the factory or at a local authorized distributor in your country.
Using the CA 2451 PCB the audio signals of the individual microphone units are available separately and the individual audio inputs can be
used for the aural channels in interpreting applications (original sound and foreign languages). Depending on the number of the installed
CA 2450 PCBs (1 transmitting/receiving channel), it is possible to listen to separate audio signals of max. 7 switched on microphone units and
max. 8 audio signals for the aural channels.

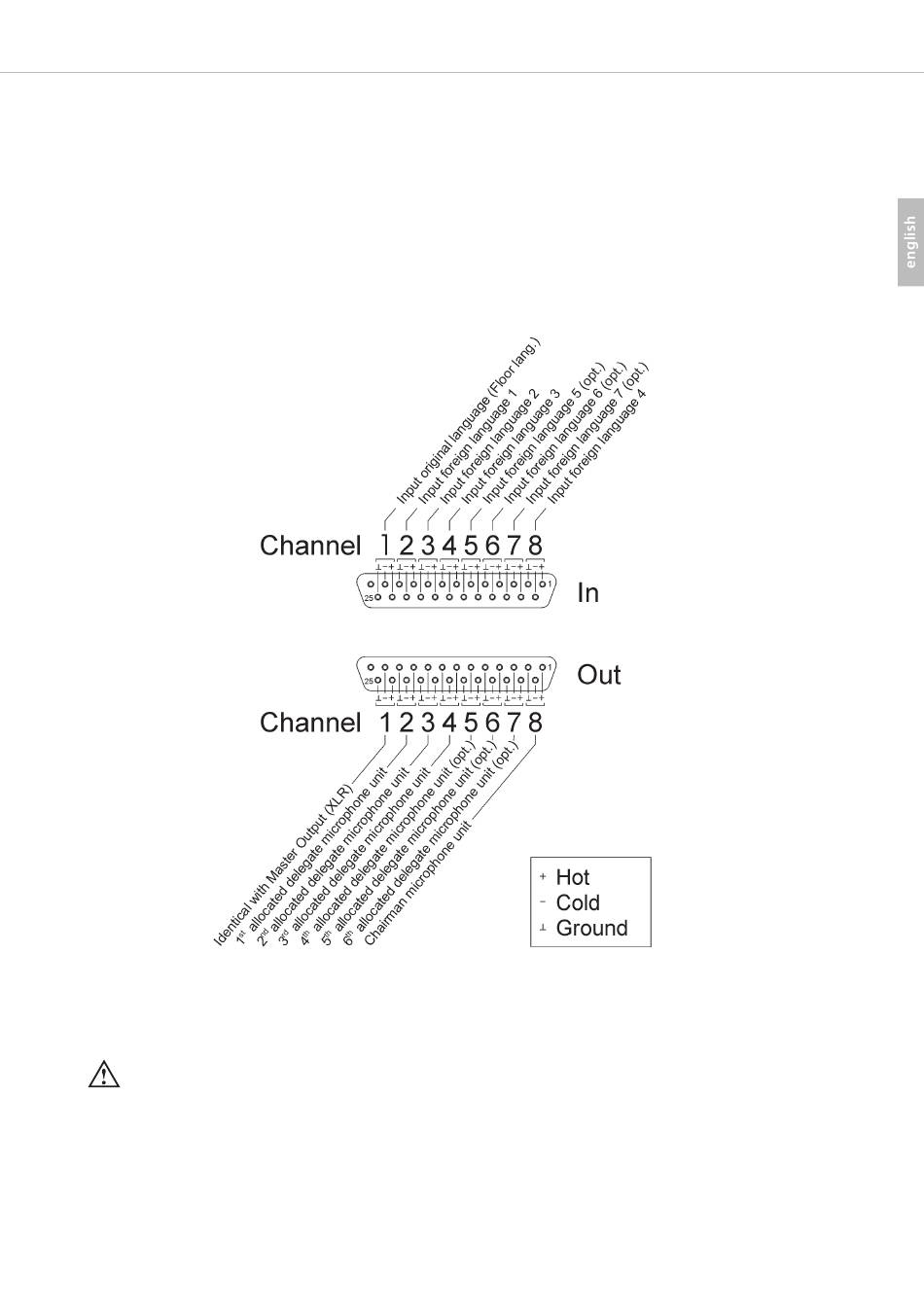

The pin connection corresponds to Tascam-DA-XX-Recorders. As an input cable (25-pin Sub-D, male to XLR, female) use a
standard cable of the type Tascam CU SD 303 (3 m) or Tascam CU SD 305 (5 m).
As an output cable (25-pin Sub-D, male to XLR, male) use a standard cable of the type Tascam CU SD 203 (3 m) or Tascam CU SD 205 (5 m).
Important:
• The max. input level is +6 dBm; i.e. the connected device must not produce a higher signal even with loud passages.
4.3

CA 2452 Digital Inputs and Outputs AES/EBU and S-PDIF

By using the CA 2452 PCB the MCW-D 200 control unit can be equipped with a digital input and output (AES/EBU input and output as XLR;
S-PDIF as RCA). It can be used with the CA 2450 and CA 2451 PCBs. By using the MCW-D 200 Editor software you can access the input
switch. The output signal corresponds to "Master Out".
