MCW-D 200 – Control Unit
The PCB has to be installed as described below:
1. Unscrew the screws on top (1) and at the sides (2) of the MCW-D 200 and remove the cover.
2. Unscrew the screws of the release pin (3) and put the PCB onto a free slot (4).
3. Connect the cable of the PCB to the corresponding antenna connection. Make sure that you do not interchange the connections. Refer also
to drawing 2, e.g. TX/RX 6 are connected to TX 6 and RX 6, TX/RX 7 to TX 7 and RX 7 etc.
4. Replace the cover on the MCW-D 200 and tighten the screws. Make sure that the yellowish-green non-fused earthed conductor cable is not
removed from the cover.
5. After having installed modules the channels have to be set with the MCW-D 200 Editor Software.

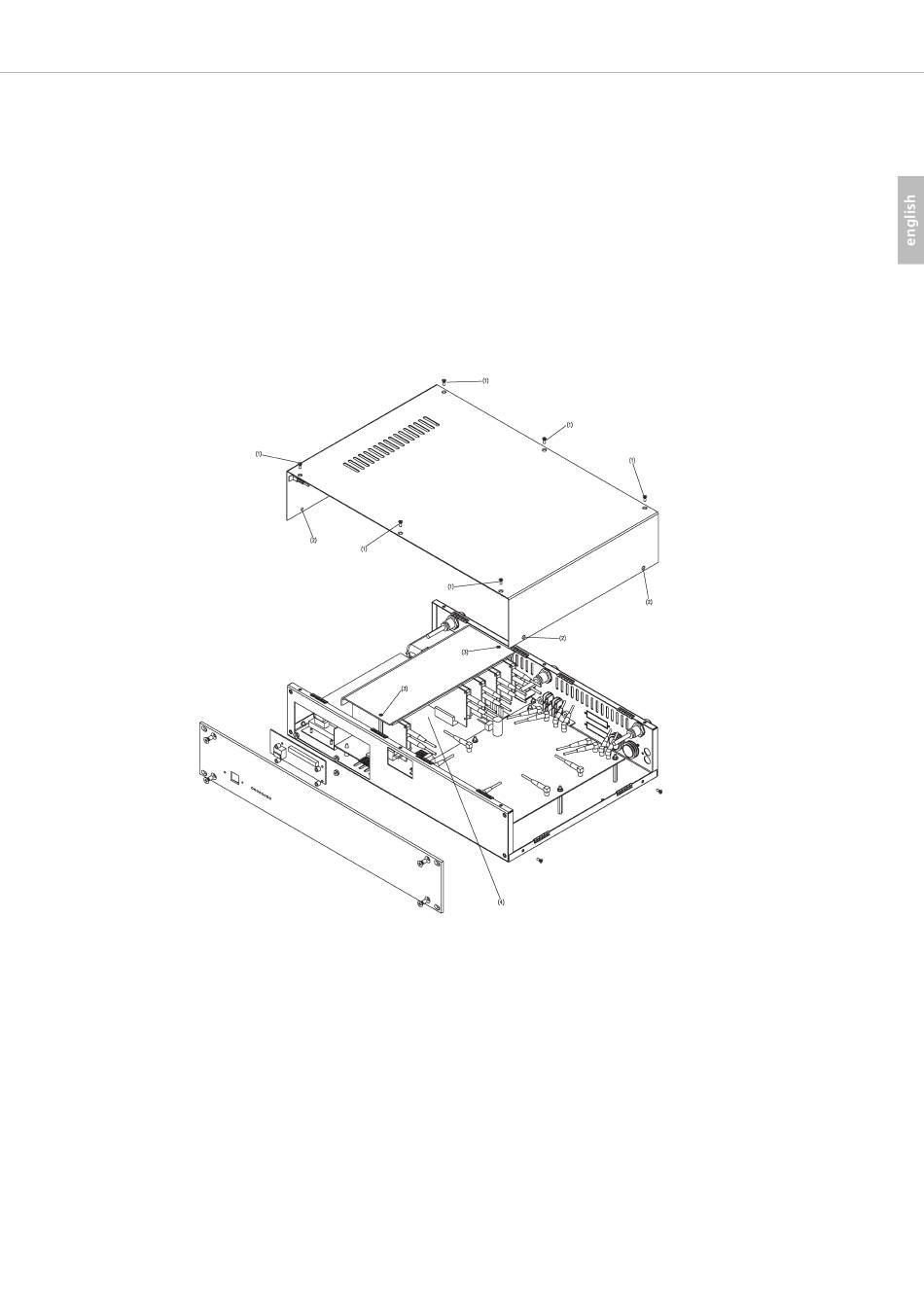

Drawing 1
