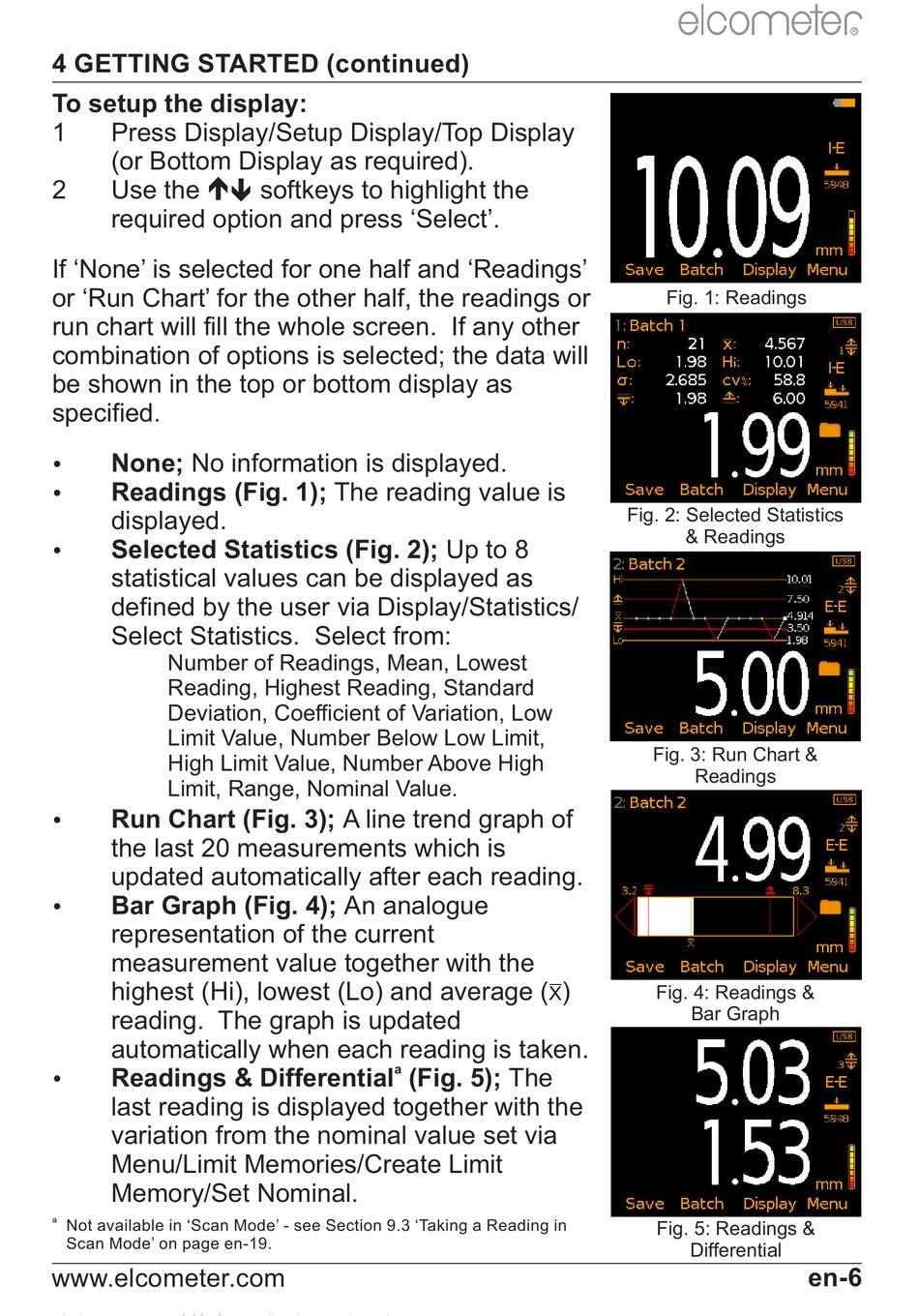

4 GETTING STARTED (continued)
To setup the display:
1 Press Display/Setup Display/Top Display
(or Bottom Display as required).

2 Use the
required option and press 'Select'.
If 'None' is selected for one half and 'Readings'
or 'Run Chart' for the other half, the readings or
run chart will fill the whole screen. If any other
combination of options is selected; the data will
be shown in the top or bottom display as
specified.
None; No information is displayed.

Readings (Fig. 1); The reading value is

displayed.
Selected Statistics (Fig. 2); Up to 8

statistical values can be displayed as
defined by the user via Display/Statistics/
Select Statistics. Select from:
Number of Readings, Mean, Lowest
Reading, Highest Reading, Standard
Deviation, Coefficient of Variation, Low
Limit Value, Number Below Low Limit,
High Limit Value, Number Above High
Limit, Range, Nominal Value.
Run Chart (Fig. 3); A line trend graph of

the last 20 measurements which is
updated automatically after each reading.
Bar Graph (Fig. 4); An analogue

representation of the current
measurement value together with the
highest (Hi), lowest (Lo) and average (
reading. The graph is updated
automatically when each reading is taken.
Readings & Differential (Fig. 5); The

last reading is displayed together with the
variation from the nominal value set via
Menu/Limit Memories/Create Limit
Memory/Set Nominal.
a
Not available in 'Scan Mode' - see Section 9.3 'Taking a Reading in
Scan Mode' on page en-19.
www.elcometer.com
softkeys to highlight the

a
Fig. 1: Readings
Fig. 2: Selected Statistics
& Readings
Fig. 3: Run Chart &
Readings
)
Fig. 4: Readings &
X
Bar Graph
Fig. 5: Readings &
Differential
R
