Selecting Your Language; Screen Settings - Elcometer 307 Gebrauchsanleitung

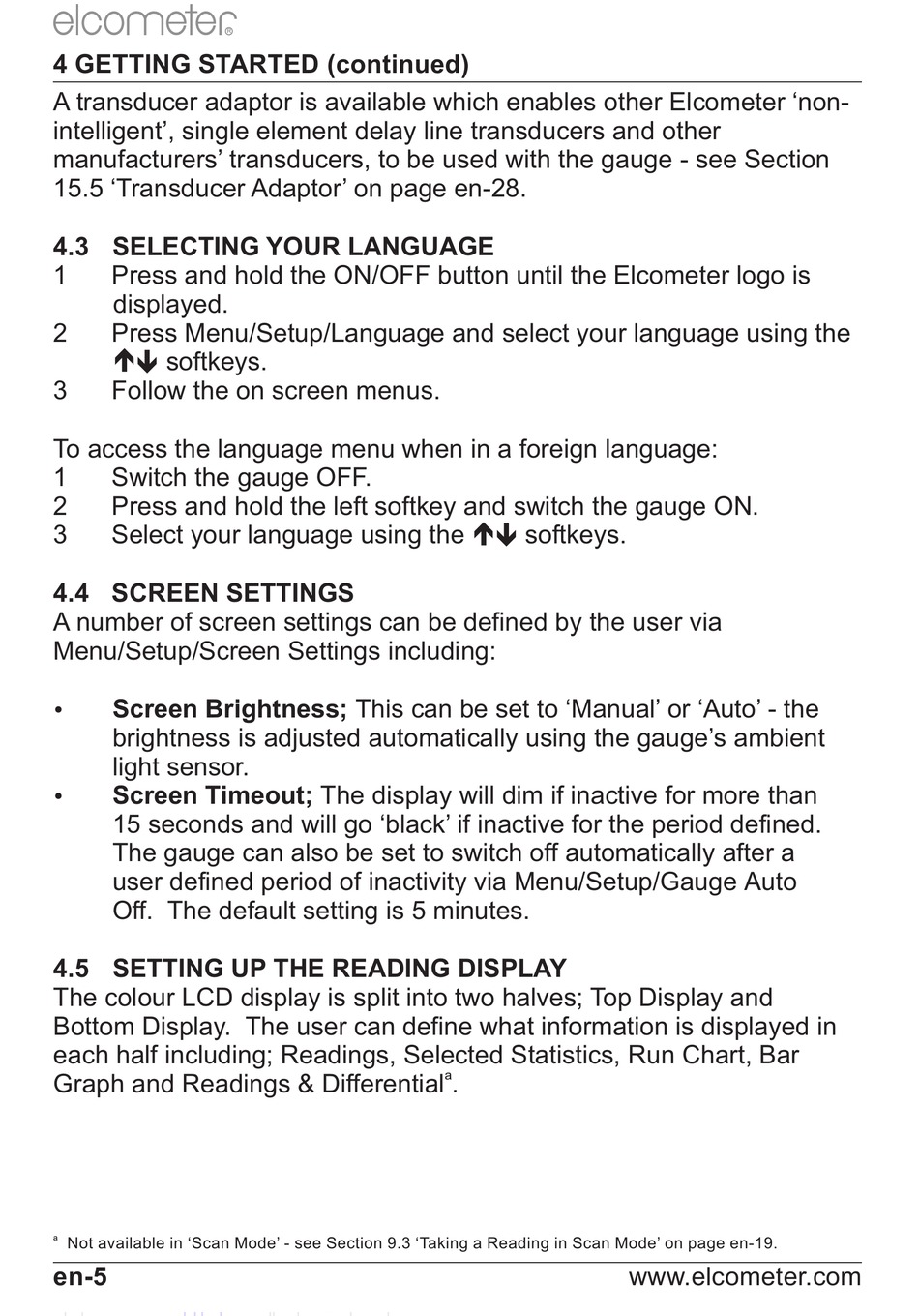

4 GETTING STARTED (continued)
A transducer adaptor is available which enables other Elcometer 'non-
intelligent', single element delay line transducers and other
manufacturers' transducers, to be used with the gauge - see Section
15.5 'Transducer Adaptor' on page en-28.

4.3 SELECTING YOUR LANGUAGE

1 Press and hold the ON/OFF button until the Elcometer logo is
displayed.
2 Press Menu/Setup/Language and select your language using the
  softkeys.
3 Follow the on screen menus.
To access the language menu when in a foreign language:
1 Switch the gauge OFF.
2 Press and hold the left softkey and switch the gauge ON.
3 Select your language using the

4.4 SCREEN SETTINGS

A number of screen settings can be defined by the user via
Menu/Setup/Screen Settings including:
Screen Brightness; This can be set to 'Manual' or 'Auto' - the

brightness is adjusted automatically using the gauge's ambient
light sensor.
Screen Timeout; The display will dim if inactive for more than

15 seconds and will go 'black' if inactive for the period defined.
The gauge can also be set to switch off automatically after a
user defined period of inactivity via Menu/Setup/Gauge Auto
Off. The default setting is 5 minutes.
4.5 SETTING UP THE READING DISPLAY
The colour LCD display is split into two halves; Top Display and
Bottom Display. The user can define what information is displayed in
each half including; Readings, Selected Statistics, Run Chart, Bar
Graph and Readings & Differential .
a
Not available in 'Scan Mode' - see Section 9.3 'Taking a Reading in Scan Mode' on page en-19.
en-5
R
 
softkeys.
a
www.elcometer.com
