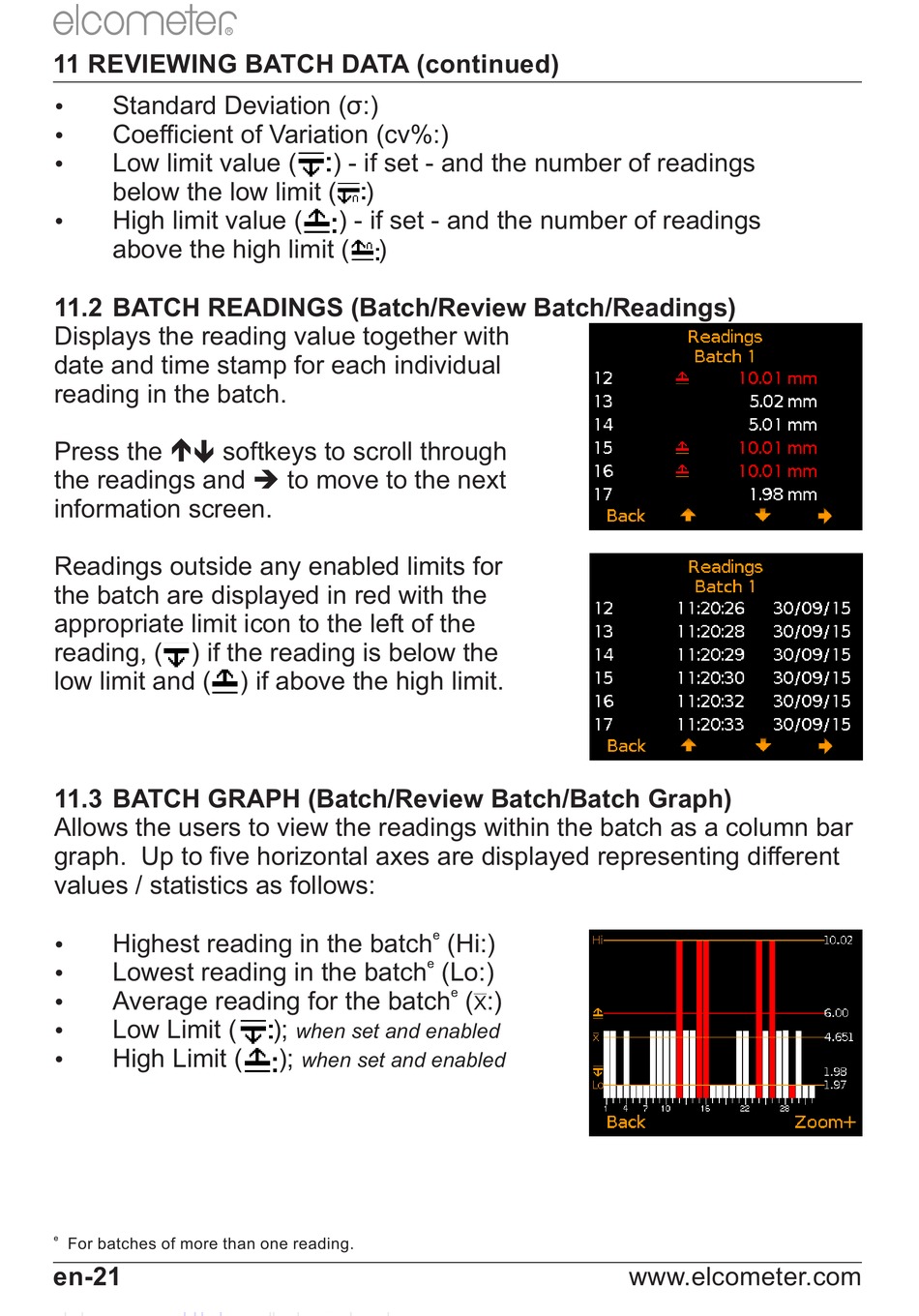

11 REVIEWING BATCH DATA (continued)
Standard Deviation (σ:)

Coefficient of Variation (cv%:)

Low limit value (

below the low limit (
High limit value (

above the high limit (
11.2 BATCH READINGS (Batch/Review Batch/Readings)
Displays the reading value together with
date and time stamp for each individual
reading in the batch.
 
Press the softkeys to scroll through
the readings and  to move to the next
information screen.
Readings outside any enabled limits for
the batch are displayed in red with the
appropriate limit icon to the left of the
reading, ( ) if the reading is below the
low limit and (
11.3 BATCH GRAPH (Batch/Review Batch/Batch Graph)
Allows the users to view the readings within the batch as a column bar
graph. Up to five horizontal axes are displayed representing different
values / statistics as follows:
Highest reading in the batch (Hi:)

Lowest reading in the batch (Lo:)

Average reading for the batch (

Low Limit (

High Limit (

e
For batches of more than one reading.
en-21
R
) - if set - and the number of readings
)
) - if set - and the number of readings
)
) if above the high limit.
);
when set and enabled
);
when set and enabled
e
e
e
:)
X
