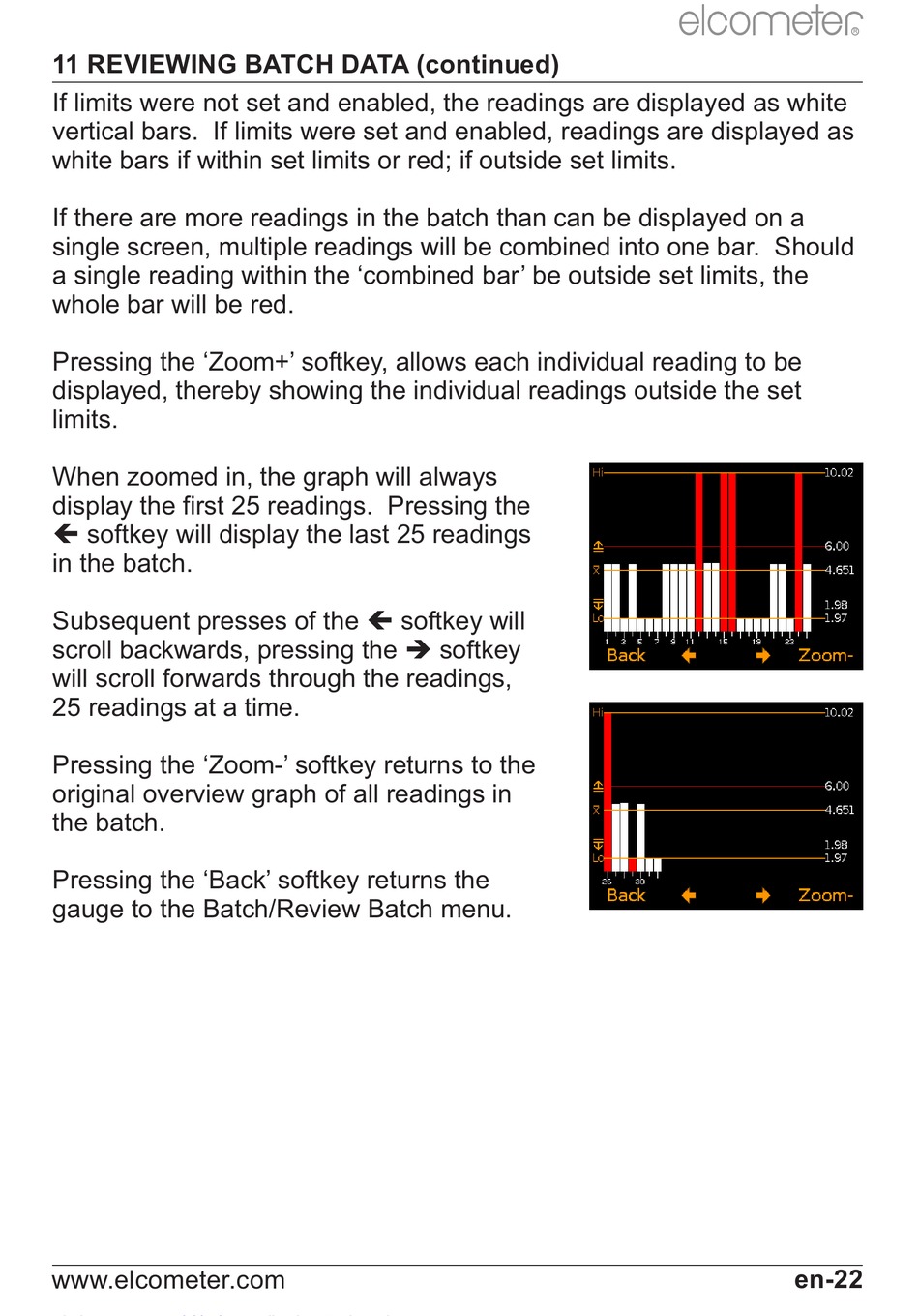

11 REVIEWING BATCH DATA (continued)
If limits were not set and enabled, the readings are displayed as white
vertical bars. If limits were set and enabled, readings are displayed as
white bars if within set limits or red; if outside set limits.
If there are more readings in the batch than can be displayed on a
single screen, multiple readings will be combined into one bar. Should
a single reading within the 'combined bar' be outside set limits, the
whole bar will be red.
Pressing the 'Zoom+' softkey, allows each individual reading to be
displayed, thereby showing the individual readings outside the set
limits.
When zoomed in, the graph will always
display the first 25 readings. Pressing the
 softkey will display the last 25 readings
in the batch.
Subsequent presses of the  softkey will
scroll backwards, pressing the  softkey
will scroll forwards through the readings,
25 readings at a time.
Pressing the 'Zoom-' softkey returns to the
original overview graph of all readings in
the batch.
Pressing the 'Back' softkey returns the
gauge to the Batch/Review Batch menu.
