Batching; Reviewing Batch Data - Elcometer 307 Gebrauchsanleitung

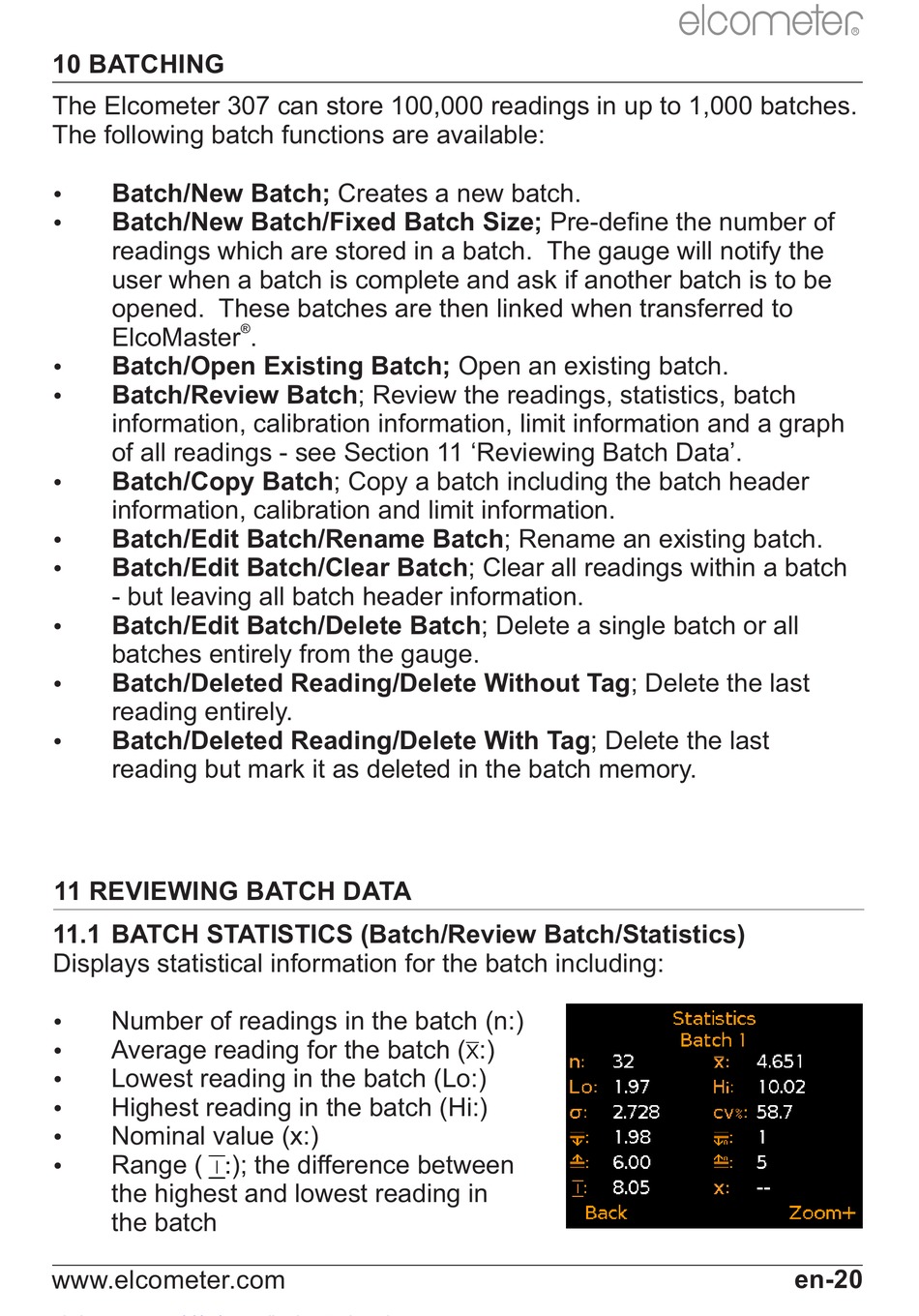

10 BATCHING

The Elcometer 307 can store 100,000 readings in up to 1,000 batches.
The following batch functions are available:
Batch/New Batch; Creates a new batch.

Batch/New Batch/Fixed Batch Size; Pre-define the number of

readings which are stored in a batch. The gauge will notify the
user when a batch is complete and ask if another batch is to be
opened. These batches are then linked when transferred to
ElcoMaster .
Batch/Open Existing Batch; Open an existing batch.

Batch/Review Batch; Review the readings, statistics, batch

information, calibration information, limit information and a graph
of all readings - see Section 11 'Reviewing Batch Data'.
Batch/Copy Batch; Copy a batch including the batch header

information, calibration and limit information.
Batch/Edit Batch/Rename Batch; Rename an existing batch.

Batch/Edit Batch/Clear Batch; Clear all readings within a batch

- but leaving all batch header information.
Batch/Edit Batch/Delete Batch; Delete a single batch or all

batches entirely from the gauge.
Batch/Deleted Reading/Delete Without Tag; Delete the last

reading entirely.
Batch/Deleted Reading/Delete With Tag; Delete the last

reading but mark it as deleted in the batch memory.

11 REVIEWING BATCH DATA

11.1 BATCH STATISTICS (Batch/Review Batch/Statistics)
Displays statistical information for the batch including:
Number of readings in the batch (n:)

Average reading for the batch (

Lowest reading in the batch (Lo:)

Highest reading in the batch (Hi:)

Nominal value (x:)

Range (

the highest and lowest reading in
the batch
www.elcometer.com
®
); the difference between
:)
X
R
en-20
