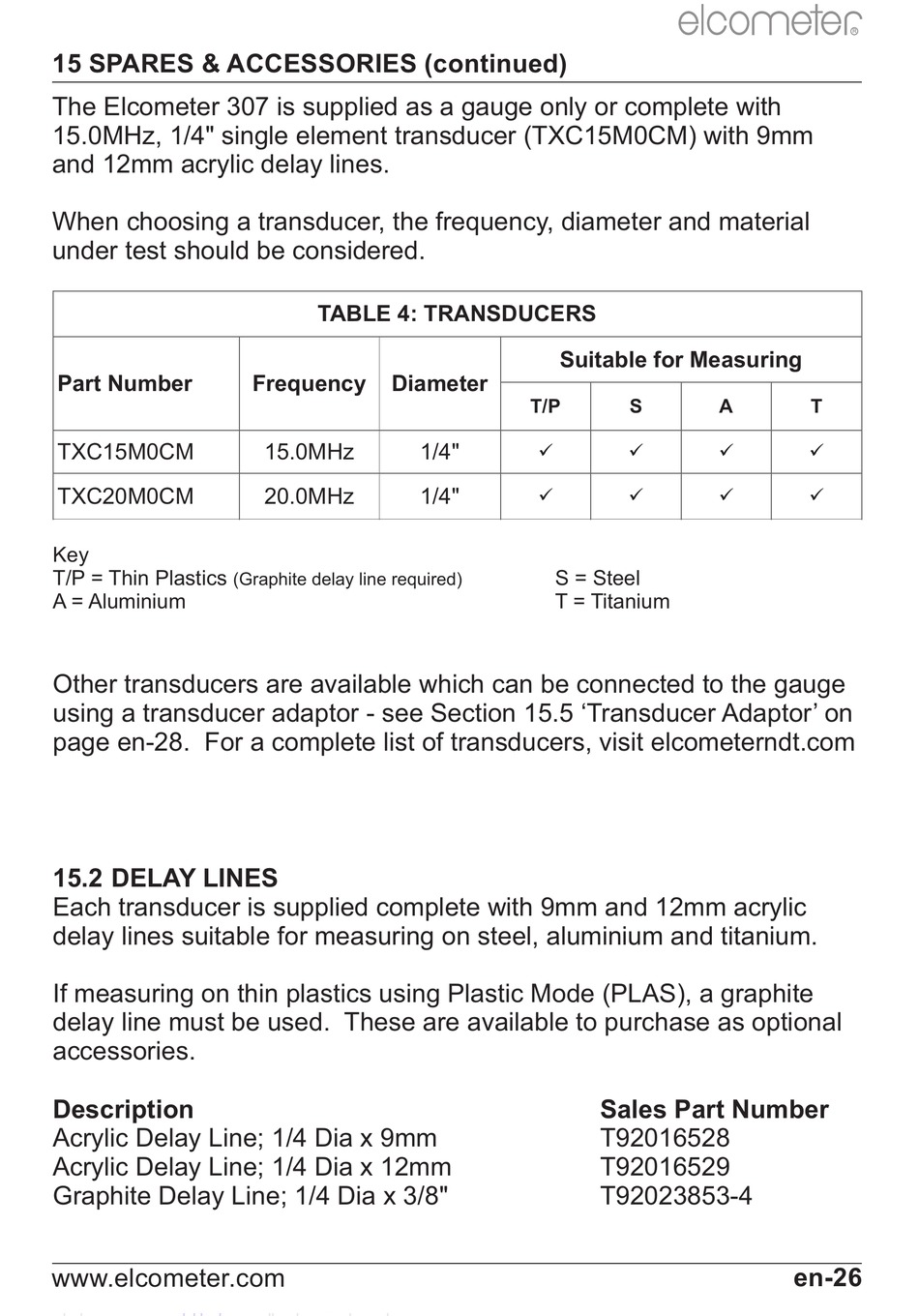

15 SPARES & ACCESSORIES (continued)
The Elcometer 307 is supplied as a gauge only or complete with
15.0MHz, 1/4" single element transducer (TXC15M0CM) with 9mm
and 12mm acrylic delay lines.
When choosing a transducer, the frequency, diameter and material
under test should be considered.
Part Number
TXC15M0CM
TXC20M0CM
Key
T/P = Thin Plastics
A = Aluminium
Other transducers are available which can be connected to the gauge
using a transducer adaptor - see Section 15.5 'Transducer Adaptor' on
page en-28. For a complete list of transducers, visit elcometerndt.com
15.2 DELAY LINES
Each transducer is supplied complete with 9mm and 12mm acrylic
delay lines suitable for measuring on steel, aluminium and titanium.
If measuring on thin plastics using Plastic Mode (PLAS), a graphite
delay line must be used. These are available to purchase as optional
accessories.
Description
Acrylic Delay Line; 1/4 Dia x 9mm
Acrylic Delay Line; 1/4 Dia x 12mm
Graphite Delay Line; 1/4 Dia x 3/8"
www.elcometer.com
TABLE 4: TRANSDUCERS
Frequency Diameter
15.0MHz
20.0MHz
(Graphite delay line required)
Suitable for Measuring
T/P
1/4"

1/4" 
S = Steel
T = Titanium
S A
 
 
Sales Part Number
T92016528
T92016529
T92023853-4
R
T


