3.5.5

Adapting the upstream fuse /transformer options

 Only cooling units with the rated operating voltage 400V / 460V can be optionally connected to a different mains
voltage.
 Reconnection takes place via the supply of the primary side of the transformer.
 The upstream fuse must match the changed mains voltage; see Adapting the upstream fuse.
1

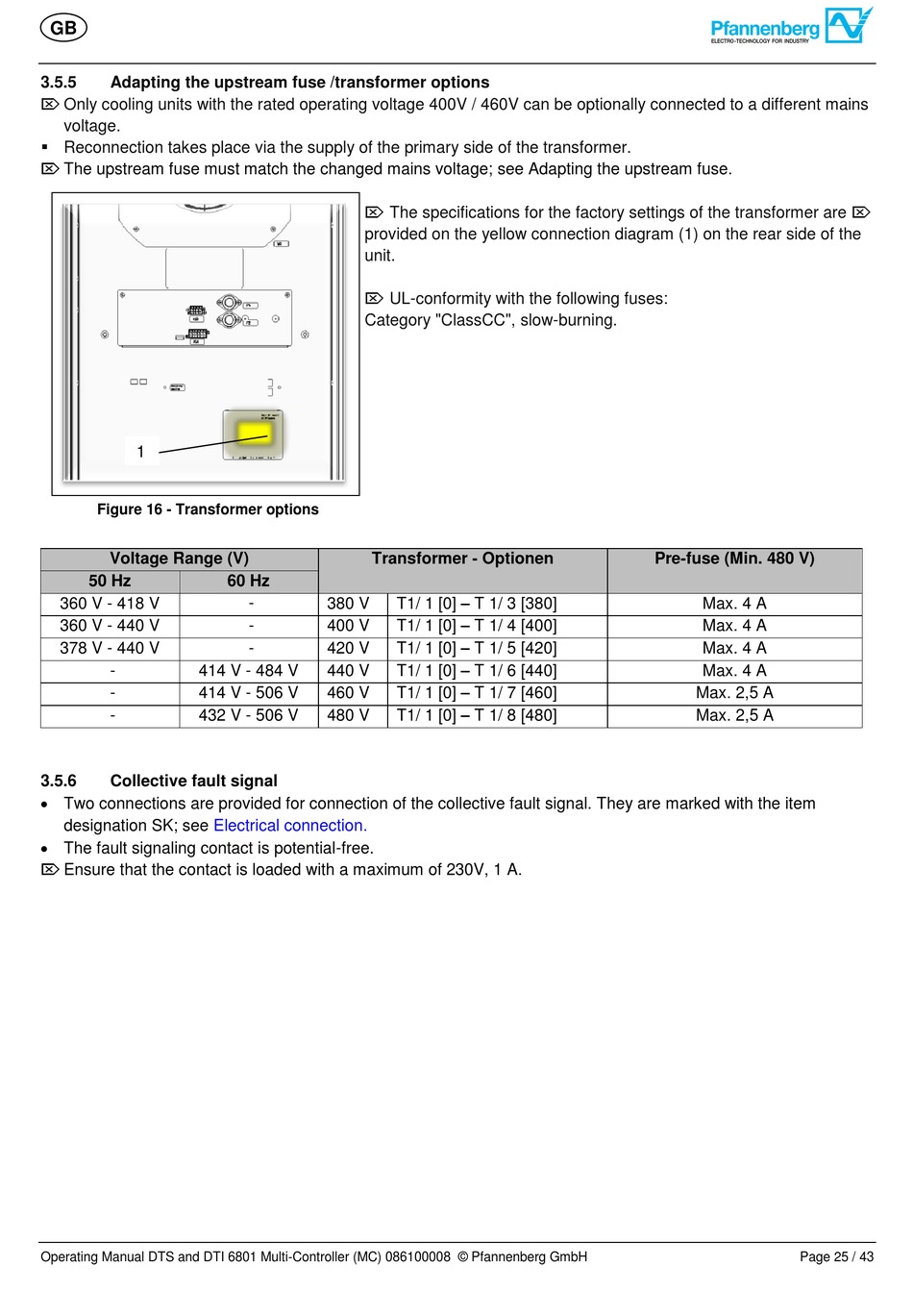

Figure 16 - Transformer options
Voltage Range (V)
50 Hz
360 V - 418 V
360 V - 440 V
378 V - 440 V
- 414 V - 484 V
-
414 V - 506 V
- 432 V - 506 V
3.5.6

Collective fault signal

 Two connections are provided for connection of the collective fault signal. They are marked with the item
designation SK; see
 The fault signaling contact is potential-free.
 Ensure that the contact is loaded with a maximum of 230V, 1 A.
Operating Manual DTS and DTI 6801 Multi-Controller (MC) 086100008 © Pfannenberg GmbH
 The specifications for the factory settings of the transformer are 
provided on the yellow connection diagram (1) on the rear side of the
unit.
 UL-conformity with the following fuses:
Category "ClassCC", slow-burning.
1
Transformer - Optionen
60 Hz
-
380 V
- 400 V
- 420 V
440 V
460 V
480 V
Electrical connection.
T1/ 1 [0] – T 1/ 3 [380]
T1/ 1 [0] – T 1/ 4 [400]
T1/ 1 [0] – T 1/ 5 [420]
T1/ 1 [0] – T 1/ 6 [440]
T1/ 1 [0] – T 1/ 7 [460]
T1/ 1 [0] – T 1/ 8 [480]
Pre-fuse (Min. 480 V)
Max. 4 A
Max. 4 A
Max. 4 A
Max. 4 A
Max. 2,5 A
Max. 2,5 A
