GB
Cooling unit electrical connection
Item Designation
1 Connecting plug
3 Screwdriver (slotted)
Requirement
- All general requirements for safe and reliable operation are assured; see
-
The cooling unit is de-energized.
Procedure
 Connect the cable (4) with the connecting plug (1)/(accessory kit) as specified in the electrical circuit diagram;
see Electrical connection.
 For electrical connection, insert the screwdriver (3) into the cage terminal (2) and connect the cables (4) to the
cooling unit with the connecting plug (1).
 Insert the screwdriver firmly into the cage terminal (2). Never twist the screwdriver; otherwise the cage terminal
(2) will be damaged.
 Before switching on, ensure that the mains voltage matches the upstream fuse; see
 The cooling unit is connected electrically.
Operating Manual DTS and DTI 6801 Multi-Controller (MC) 086100008 © Pfannenberg GmbH
1
1

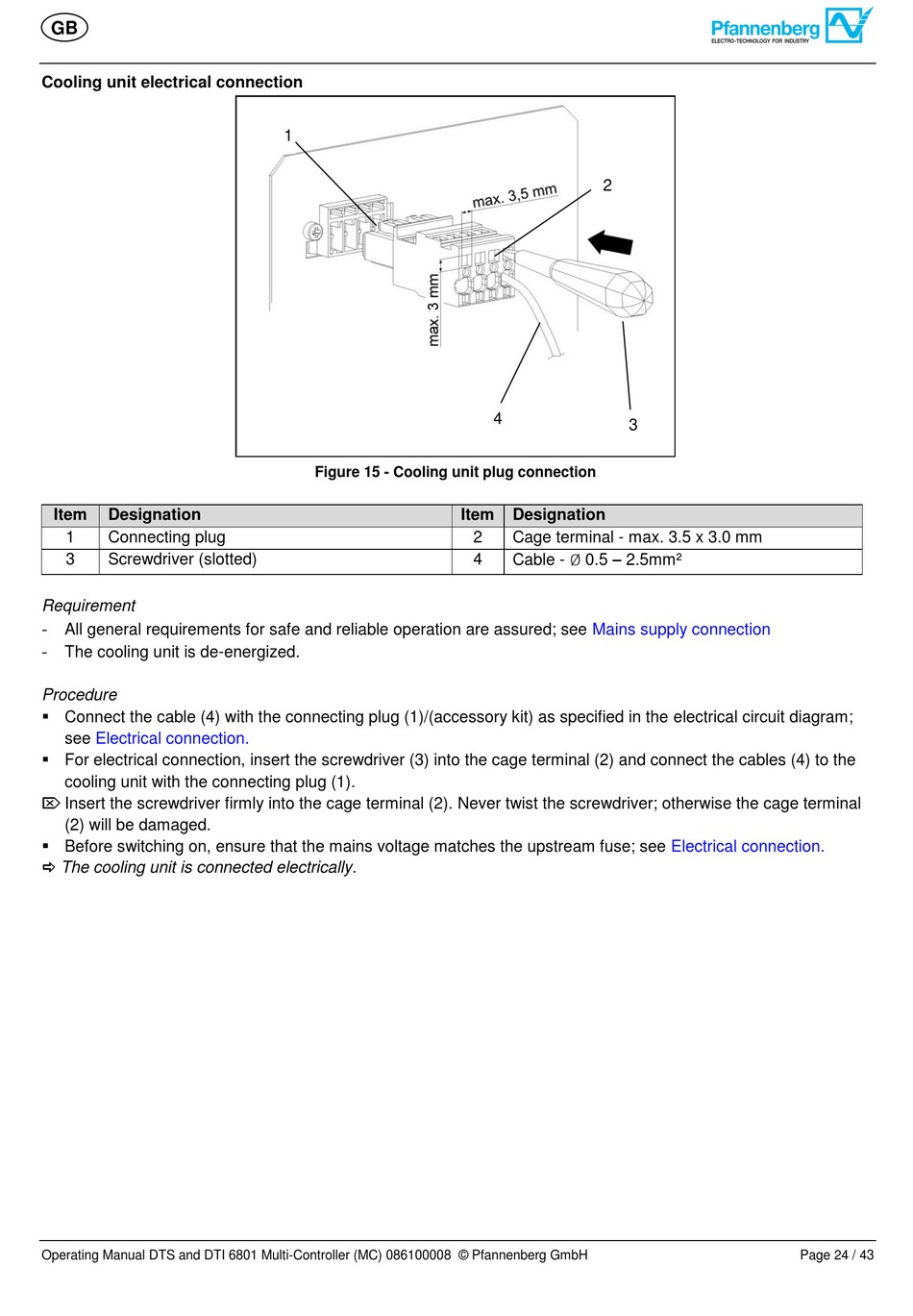

Figure 15 - Cooling unit plug connection
2
2
4 3
4
3
Item Designation
2 Cage terminal - max. 3.5 x 3.0 mm
0.5 – 2.5mm²
4 Cable -
Mains supply connection
Electrical connection.
Page 24 / 43
