DTI cooling unit assembly (installation)

Item Designation
1 Air inlet
3 Device contour
Make cut-outs for the DTI cooling unit
Requirements
- All general requirements have been fulfilled; see
- The unit is de-energized.
Required tools and material
- Saw
- Use a switch cabinet cutter, if applicable
- Protective covers
Procedure
 Use a protective cover to protect the switch cabinet from chips.
 Provide the switch cabinet with cut-outs. For the prescribed dimensions, refer to the figure switch cabinet
exterior view.
 The four corner cut-outs can be rectangular or have a maximum R = 4 mm.
 Deburr the cut edges.
 Remove chips and assembly waste from the switch cabinet.
 Cut-outs have been made.
Operating Manual DTS and DTI 6801 Multi-Controller (MC) 086100008 © Pfannenberg GmbH
1
3

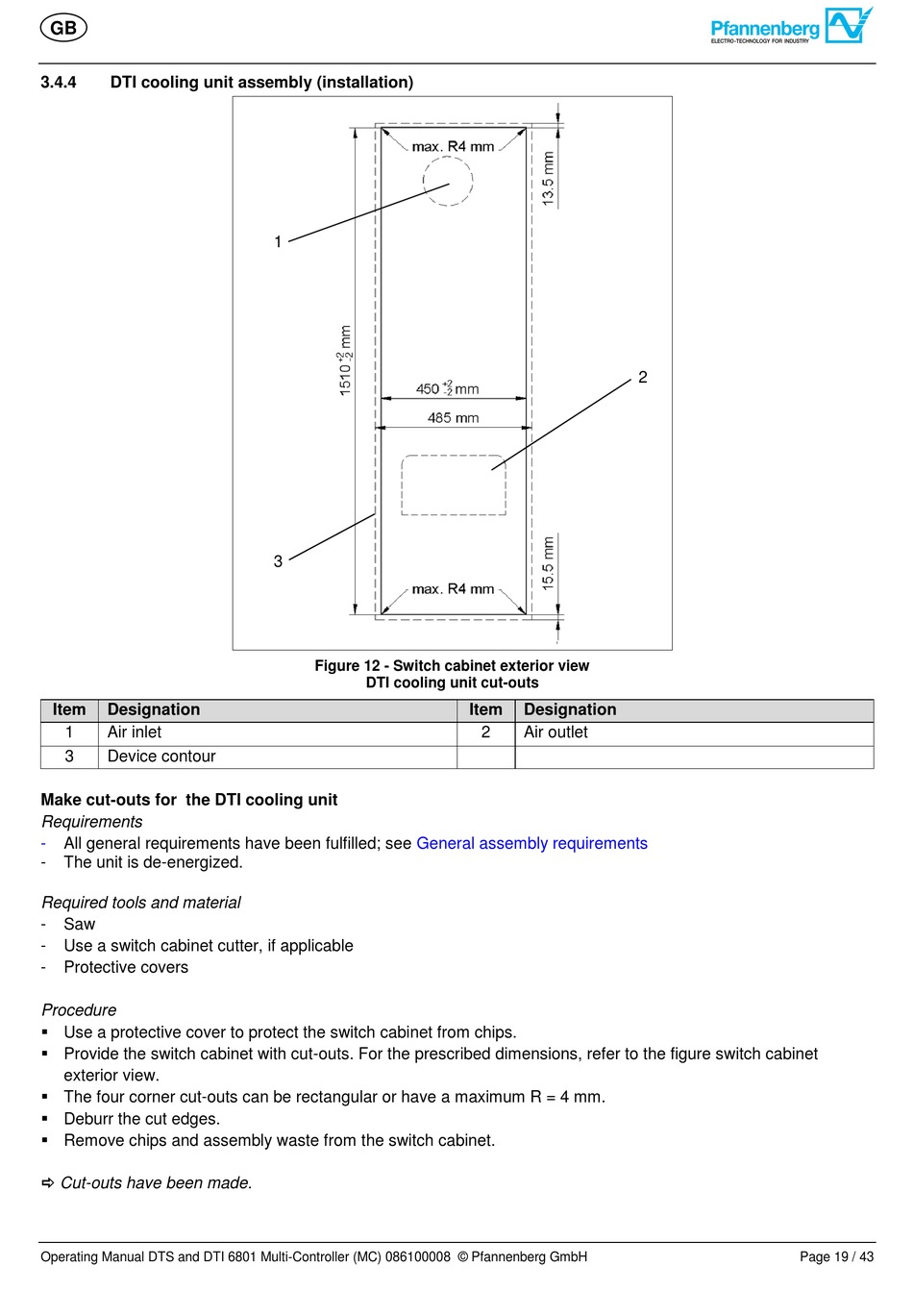

Figure 12 - Switch cabinet exterior view
DTI cooling unit cut-outs
General assembly requirements
2
Item Designation
2 Air outlet
