GB
3

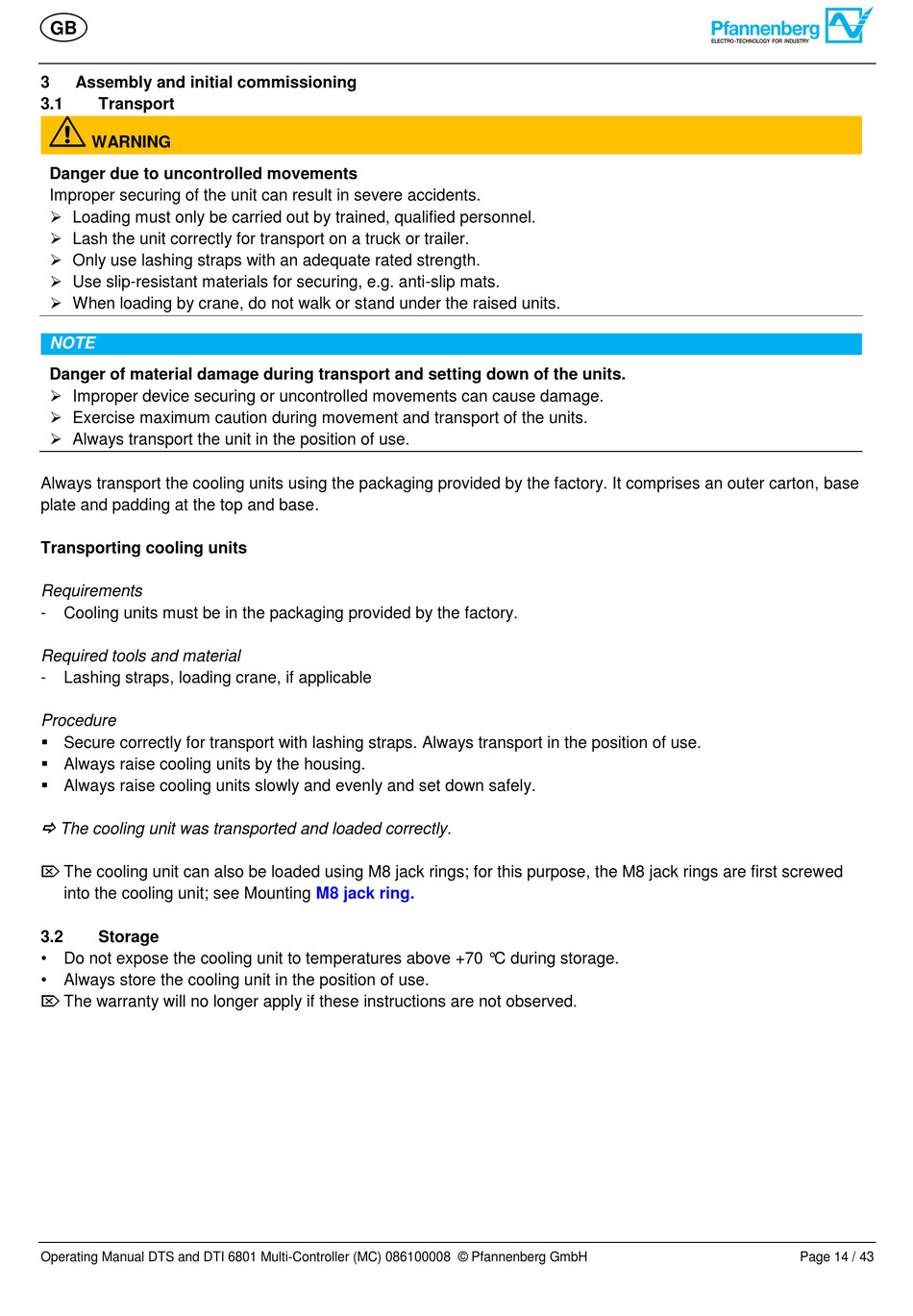

Assembly and initial commissioning

3.1

Transport

WARNING
Danger due to uncontrolled movements
Improper securing of the unit can result in severe accidents.
 Loading must only be carried out by trained, qualified personnel.
 Lash the unit correctly for transport on a truck or trailer.
 Only use lashing straps with an adequate rated strength.
 Use slip-resistant materials for securing, e.g. anti-slip mats.
 When loading by crane, do not walk or stand under the raised units.
NOTE
Danger of material damage during transport and setting down of the units.
 Improper device securing or uncontrolled movements can cause damage.
 Exercise maximum caution during movement and transport of the units.
 Always transport the unit in the position of use.
Always transport the cooling units using the packaging provided by the factory. It comprises an outer carton, base
plate and padding at the top and base.
Transporting cooling units
Requirements
- Cooling units must be in the packaging provided by the factory.
Required tools and material
- Lashing straps, loading crane, if applicable
Procedure
 Secure correctly for transport with lashing straps. Always transport in the position of use.
 Always raise cooling units by the housing.
 Always raise cooling units slowly and evenly and set down safely.

The cooling unit was transported and loaded correctly.
 The cooling unit can also be loaded using M8 jack rings; for this purpose, the M8 jack rings are first screwed
into the cooling unit; see Mounting
3.2

Storage

•
Do not expose the cooling unit to temperatures above +70 °C during storage.
•
Always store the cooling unit in the position of use.
 The warranty will no longer apply if these instructions are not observed.
Operating Manual DTS and DTI 6801 Multi-Controller (MC) 086100008 © Pfannenberg GmbH
M8 jack ring.
Page 14 / 43
