GB
3.5

Electrical connection

3.5.1

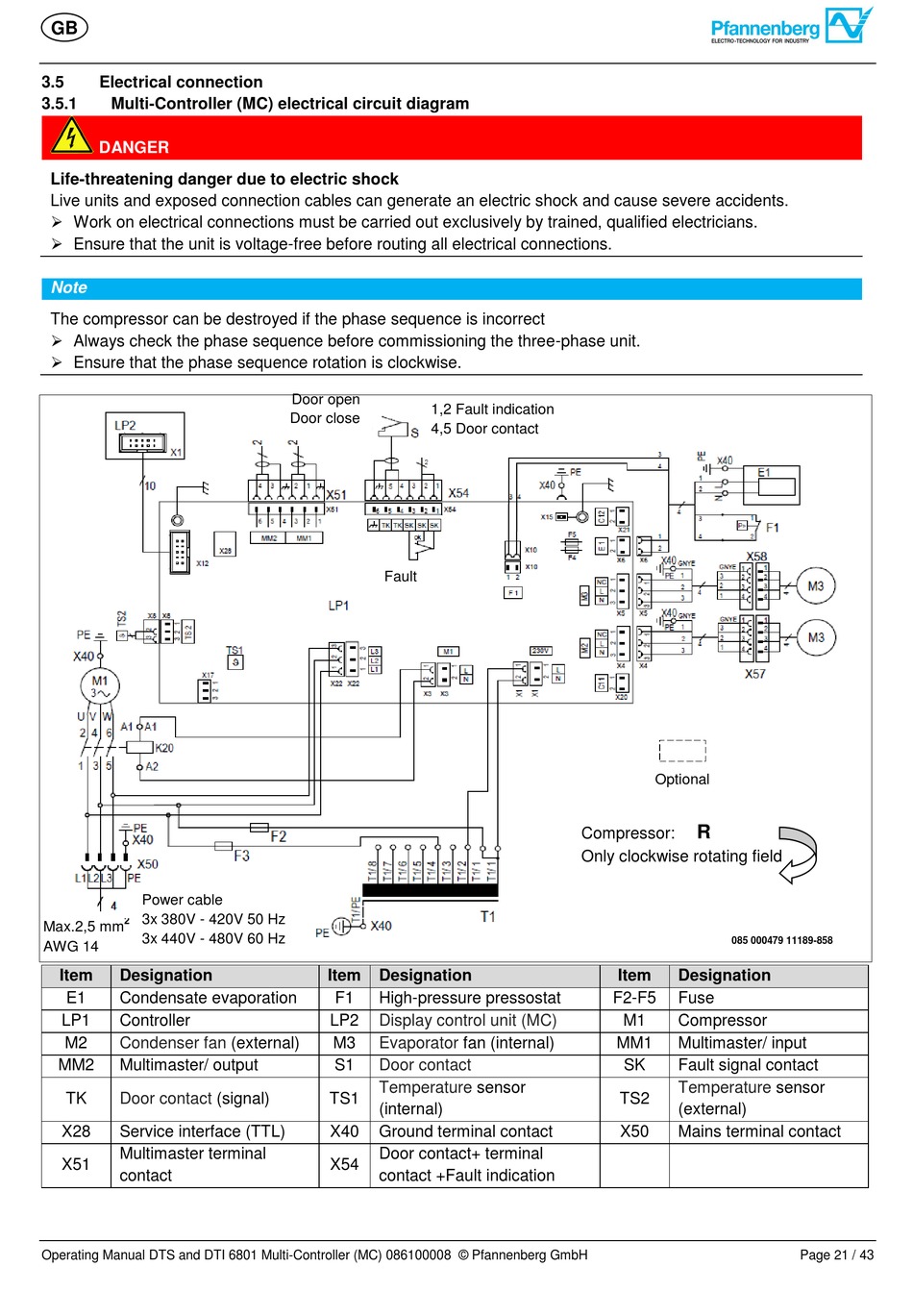

Multi-Controller (MC) electrical circuit diagram

DANGER
Life-threatening danger due to electric shock
Live units and exposed connection cables can generate an electric shock and cause severe accidents.
 Work on electrical connections must be carried out exclusively by trained, qualified electricians.
 Ensure that the unit is voltage-free before routing all electrical connections.
Note
The compressor can be destroyed if the phase sequence is incorrect
 Always check the phase sequence before commissioning the three-phase unit.
 Ensure that the phase sequence rotation is clockwise.
Power cable
3x 380V - 420V 50 Hz
2
Max.2,5 mm
3x 440V - 480V 60 Hz
AWG 14
Item Designation
E1 Condensate evaporation
LP1 Controller
M2 Condenser fan
MM2 Multimaster/ output
TK Door contact
X28 Service interface (TTL)
Multimaster terminal
X51
contact
Operating Manual DTS and DTI 6801 Multi-Controller (MC) 086100008 © Pfannenberg GmbH
Door open
Door close
Fault
Item Designation
F1 High-pressure pressostat
LP2 Display control unit (MC)
(external) M3 Evaporator
S1 Door contact
Temperature
(signal) TS1
(internal)
X40 Ground terminal contact
Door contact+ terminal
X54
contact +Fault indication
1,2 Fault indication
4,5 Door contact
Compressor:
Only clockwise rotating field
fan (internal)
sensor
Optional
R
085 000479 11189-858
Item Designation
F2-F5 Fuse
M1 Compressor
MM1 Multimaster/ input
SK Fault signal contact
Temperature sensor
TS2
(external)
X50 Mains terminal contact
Page 21 / 43
